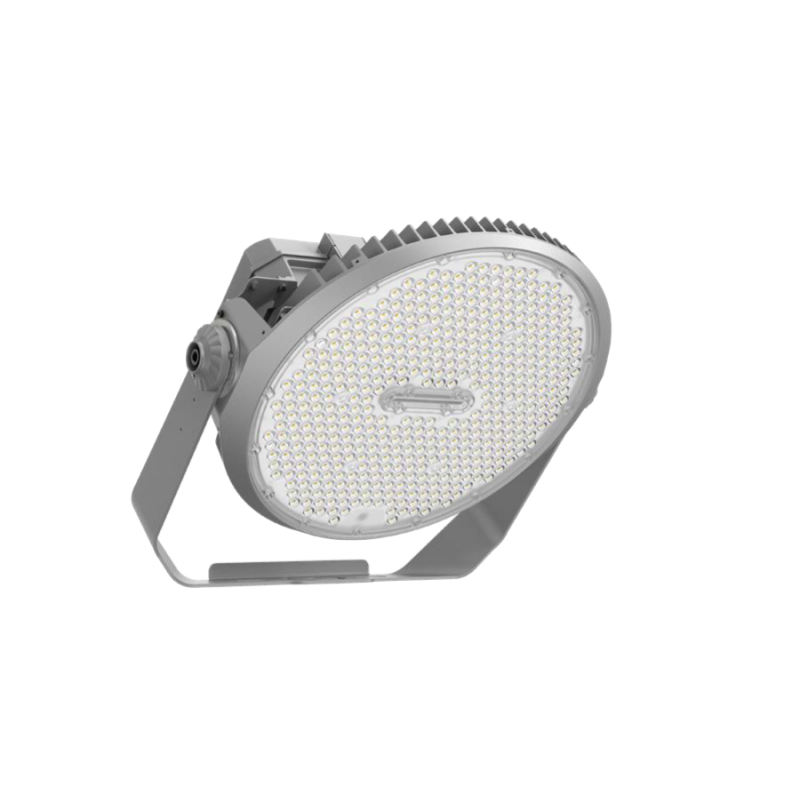

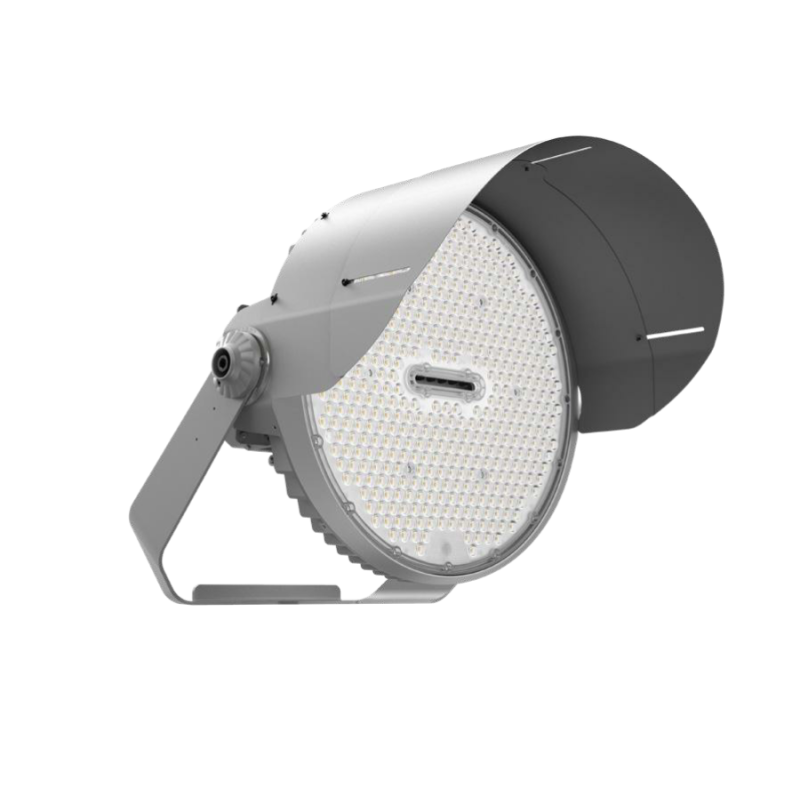

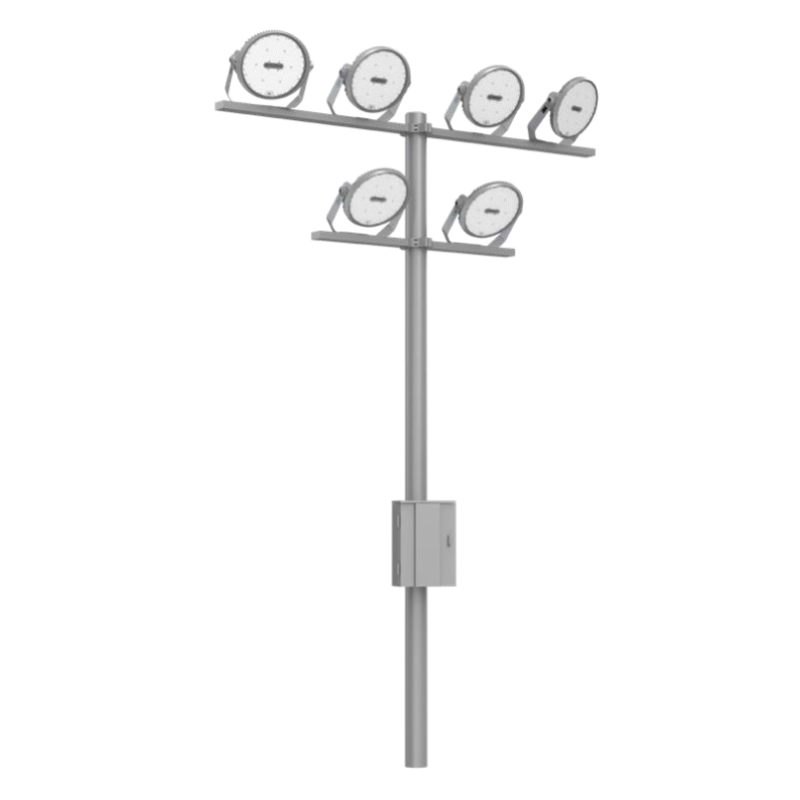

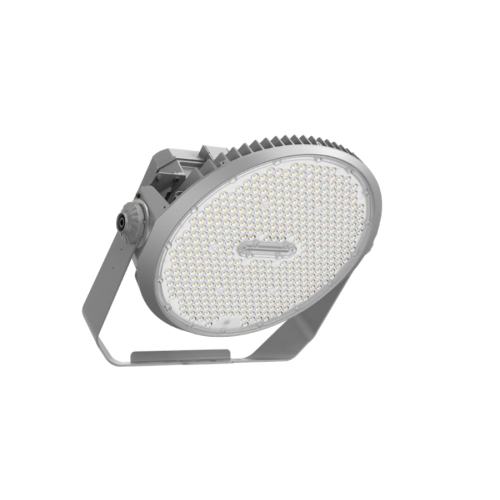

Bluecolt’s Arena 3 is a class-leading solution that delivers high brightness lighting for large sports fields and arenas. Our precision-engineered optics allow above-standard light levels, while minimizing glare and maximizing uniformity. Built for durability and versatility, it is constructed with a robust die-cast aluminum body, advanced lightning-protection, and multiple mounting options for installation versatility.
Key Features :
- High efficacy: up to 170 Lumens/Watt
- C4 Corrosion resistance, salt spray tested for 1,000+ hours

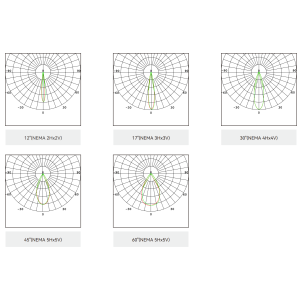

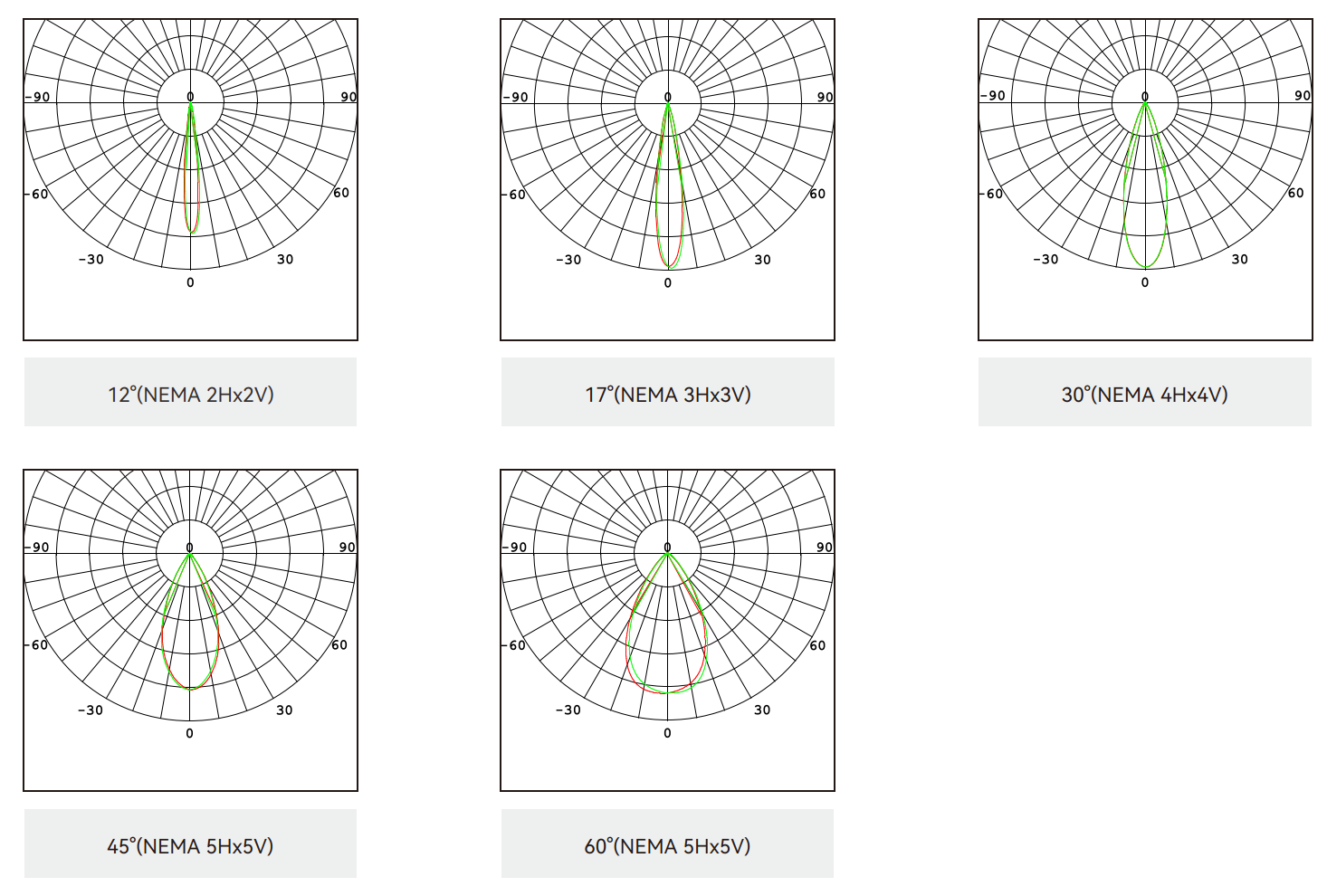

- Multiple beam angles (12°, 17°, 30°, 45°, 60°)
Product Options:
| Wattage Selectable |
400W/300W/200W
600W/500W/400W
800W/600W/400W
1200W/1000W/800W
800W (RGB only)
1200W (RGB only) |
| Input Voltage |
AC120-277V
AC200-480V |
| CCT |
4000K, 5000K |
| Dimming |
0-10v |
| IP Rating |
IP66 |
| IK Rating |
IK08 |
Product Options:
| Input Voltage |
AC120-277V
AC200-480V
|
| Wattage |
800W
1200W
400W/300W/200W
600W/500W/400W
800W/600W/400W
1200W/1000W/800W
|
| CCT |
4000K
5000K
RGB
|
| Dimming |
0-10v
|
Product Configurator
Select fixture options to generate SKU and download specific Design Files
Technical Specifications
Performance
Power (Field Adjustable):
- 400W/300W/200W
- 600W/500W/400W
- 800W/600W/400W
- 1200W/1000W/800W
- 800W (RGB only)
- 1200W (RGB only)
Color Temperature:
Compliance
UL Listed:
cULus listed for wet locations.
DLC®:
DLC(DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org
Construction
Materials:
Aluminum alloy housing, ZAM/SPCC mounting brackets, powder coating, and polycarbonate lenses.
Finish:
- Default color is Silver.
- Powder coated surface treatment.
- Tested with 1000 hr salt spray test.
Ambient Temperature:
-22°F(-30°C) to 104°F(40°C): AC120-277V and 800W/600W/400W Selectable or 1200W/1000W/800W Selectable
-22°F(-30°C) to 113°F(45°C): AC120-277V and 400W/300W/200W Selectable or 600W/500W/400W Selectable
-22°F(-30°C) to 122°F(50°C): AC120-277V and 800W (RGB) or 1200W (RGB), all AC200-480V fixtures
Electrical
Dimming Driver:
0-10v dimmable driver.
Input Voltage:
AC120-277V, AC200-480V
Optics
Dimming Driver:
Warranty
5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty
