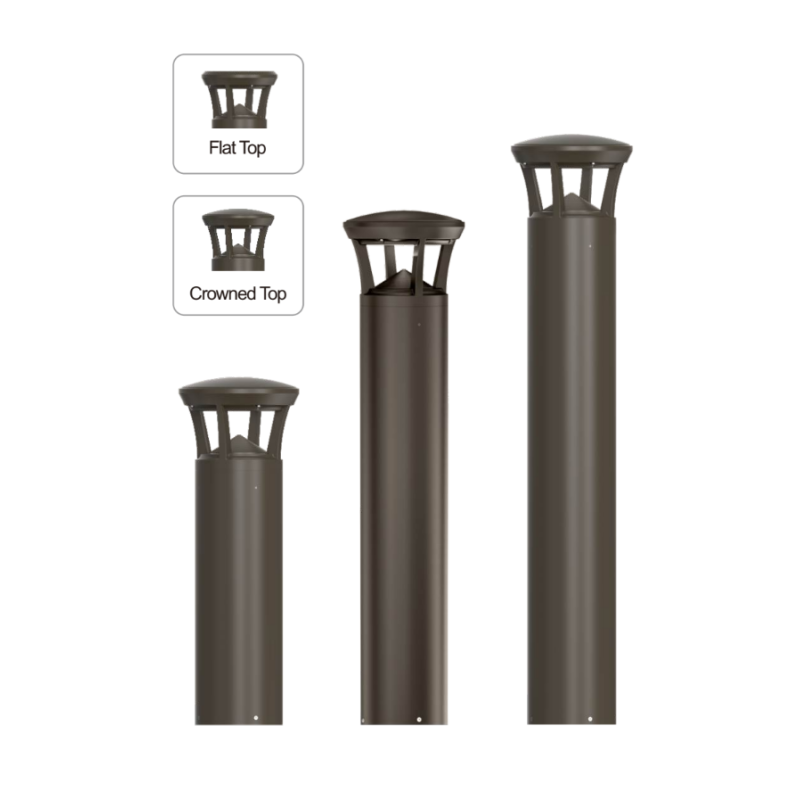

Bluecolt's BLD is a durable and energy-efficient bollard for everything from security to aesthetic purposes outdoors. With its wet location listing and corrosion-resistant powder coat, this fixture can provide outdoor lighting from urban to extreme settings.

Key Features :

  • High efficacy: up to 120 Lumens/Watt
  • CCT and Wattage Selectable
  • Emergency Battery Options

Product Options:

Wattage Selectable 24W/15W/12W
Input Voltage AC120-277V
CCT Selectable 3000K/4000K/5000K
Dimming 0-10v

Product Options:

Input Voltage AC120-277V
Wattage 24W/15W/12W
CCT 3000K/4000K/5000K
Dimming 0-10v
UL/CUL
DLC 5.1 Premium
3 Watt Selectable
3 CCT Selectable
70+ CRI
0-10V Dimming
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power (Field Adjustable):

  • 24W/15W/12W

Color Temperature (Field Adjustable):

  • 3000K/4000K/5000K
Compliance

UL Listed:

cULus listed for wet locations.

DLC®:

DLC(DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org

Construction

Materials:

Made of die-cast aluminum.

Finish:

  • Default color is Dark Bronze.
  • Powder coated surface treatment.

Ambient Temperature:

-40°F(-40°C) to 122°F(50°C)

Electrical

Dimming Driver:

0-10v dimmable driver.

Input Voltage:

AC120-277V

Optics

Dimming Driver:

  • CRI>70 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

Photometrics

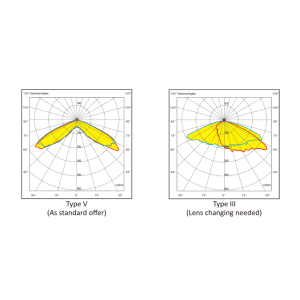

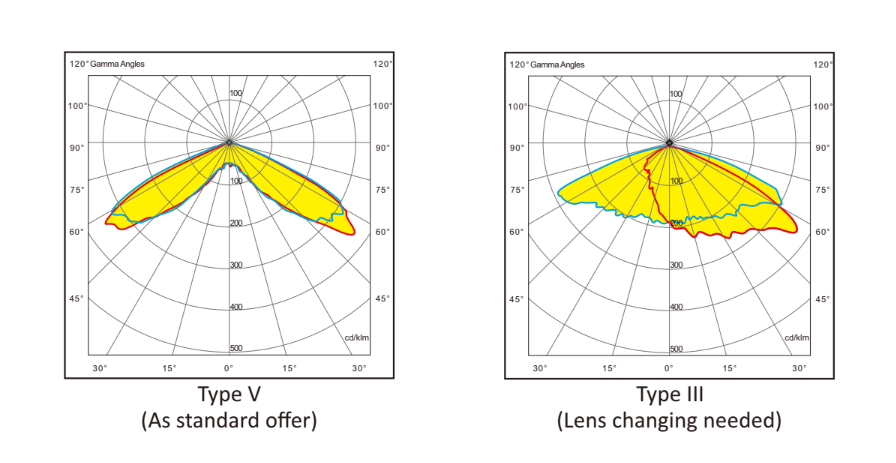

Photometric Data

Dimensions

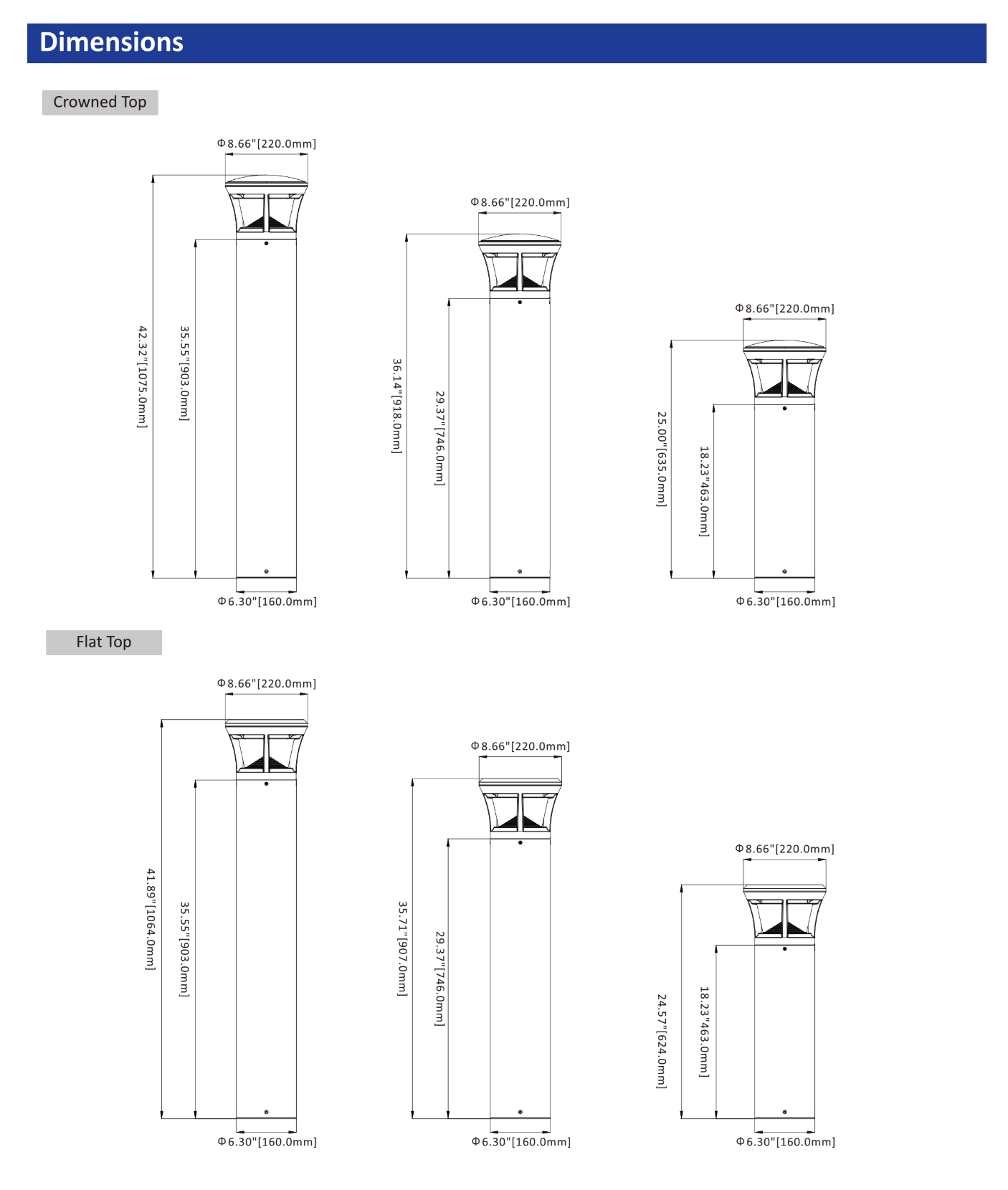

Dimension Image

Performance Data

Model #Lumen LevelWattage SelectableNominal CCTCCT SelectableLPWWattsLumensCRI
BLBLD-20W1Yes3CCT (3000K/4000K/5000K)Yes110lm/W12W1,320lm>70Ra
215W1,650lm
324W2,640lm
