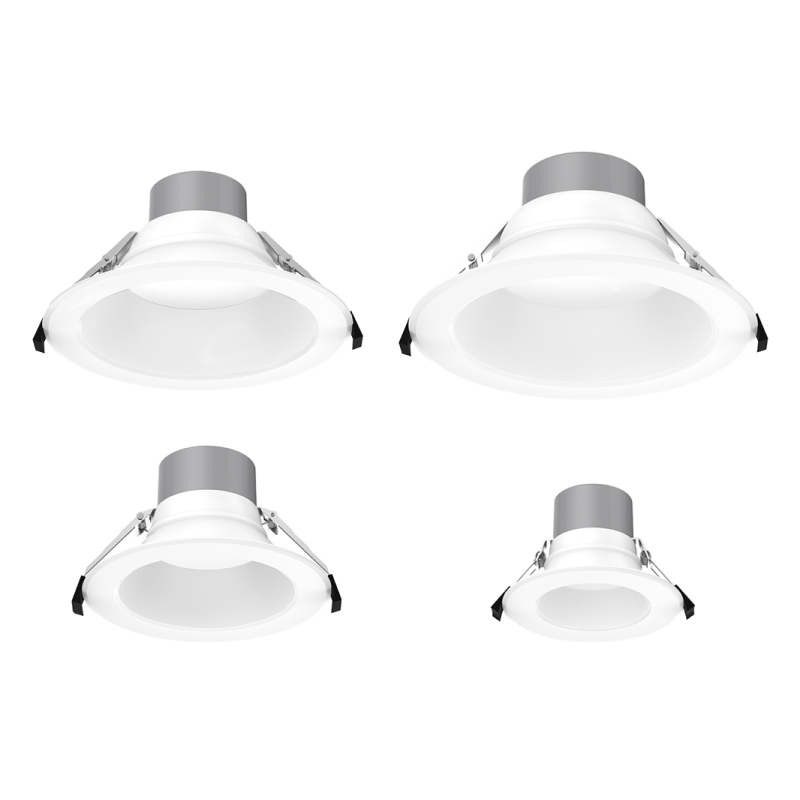

The VDL canless recessed commercial downlight is an economical LED solution with adjustable lumen output and color temperature. Available in multiple sizes offering 80 or 90 CRI.  Ideal for new constructions or retrofitting HID downlights while accommodating various mounting heights.

Key Features :

  • Features easy spring installation
  • Smooth reflector trim offers a clean, modern appearance
  • Optional built-in junction box for streamlined installation

Product Options:

Wattage Selectable 6/8/10/12/16W 12/16/22/26/30W 16/22/26/30/35W
Input Voltage AC120-347V, 50/60Hz
Lumen Output Up to 4,000W
CCT Selectable 2700K/3000K/3500K/4000K/5000K
Dimming 0-10v dimmable driver, TRIAC dimming, Emergency Driver Available.
CRI >80
Efficiency Up to 100lm/W
IP Rating Wet Location Rated
Operating Temperature −4°F to 104°F (-20°C to +40°C)
Materials Polycarbonate lens, Aluminum housing, J-Box: SECC
Beam Angle 80°, 90°

Product Options:

Input Voltage AC100-347V
Wattage 6/8/10/12/16W
12/16/22/26/30W
16/22/26/30/35W
22/26/30/35/40W
CCT 2700K/3000K/3500K/4000K/5000K
Dimming 1-10v
TRIAC
ETL Listed
Title 24
Energy Star
FCC
IC Rated
5 Watt Selectable
5 CCT Selectable
80+ CRI
0-10V Dimming
TRIAC Dimming
Wet Location
EM Option
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power (Field Adjustable):

  • 6/8/10/12/16W
  • 12/16/22/26/30W
  • 16/22/26/30/35W
  • 22/26/30/35/40W

Color Temperature (Field Adjustable):

  • 2700K/3000K/3500K/4000K/5000K
Compliance

ETL Listed:

Product has been tested for safety and performance data, and it complies with the necessary regulations and codes.

Construction

Materials:

Polycarbonate lens, Aluminum housing, J-Box: SECC

Finish:

  • Default color is White.

Ambient Temperature:

-40°F(-40°C) to 113°F(45°C)

Electrical

Dimming Driver:

  • 1-10v dimmable driver.
  • TRIAC dimming
  • Emergency Driver Option Available

Input Voltage:

AC100-347V, 50/60Hz

Optics

Dimming Driver:

  • CRI>80 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

Dimensions

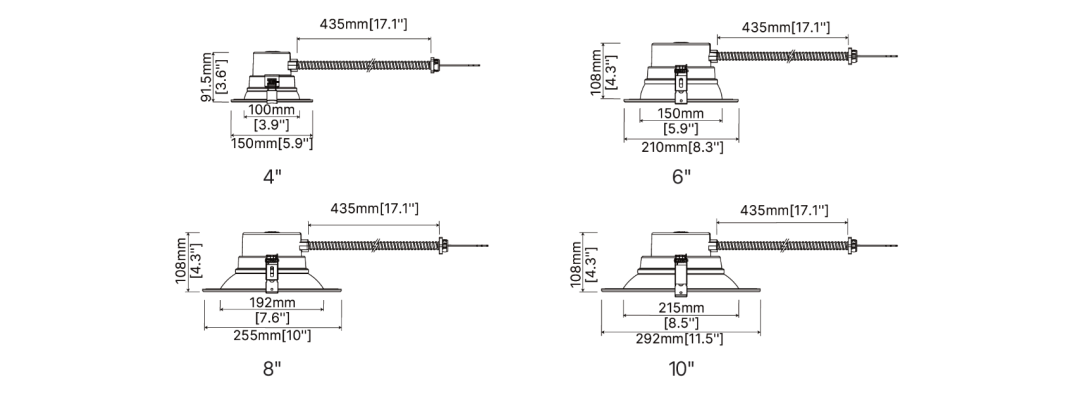

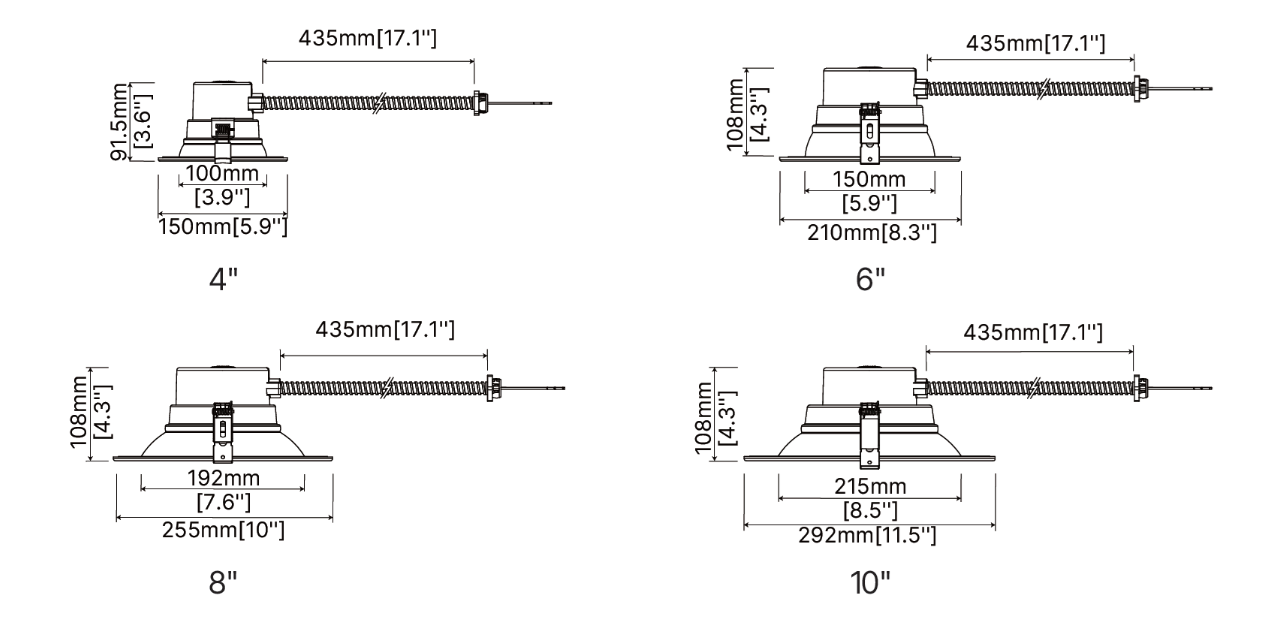

Dimension Image

Performance Data

Model #Lumen LevelWattage SelectableNominal CCTCCT SelectableLPWWattsLumensCRI
BLVDL-16W1Yes5CCT (2700K/3000K/3500K/4000K/5000K)Yes100lm/W8W800lm>80Ra
210W1,000lm
312W1,200lm
414W1,400lm
516W1,600lm
BLVDL-30W116W1,600lm
218W1,800lm
322W2,200lm
426W2,600lm
530W3,000lm
BLVDL-40W122W2,200lm
226W2,600lm
330W3,000lm
435W3,500lm
540W4,000lm
BLVDL-35W116W1,600lm
222W2,200lm
326W2,600lm
430W3,000lm
535W3,500lm
BLVDL-40W122W2,200lm
226W2,600lm
330W3,000lm
435W3,500lm
540W4,000lm
