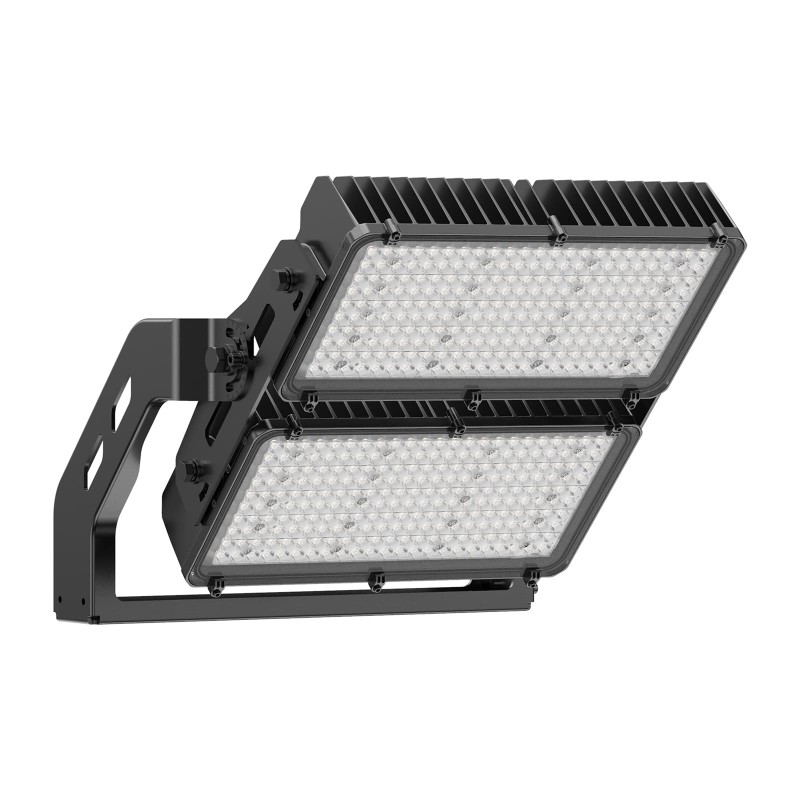

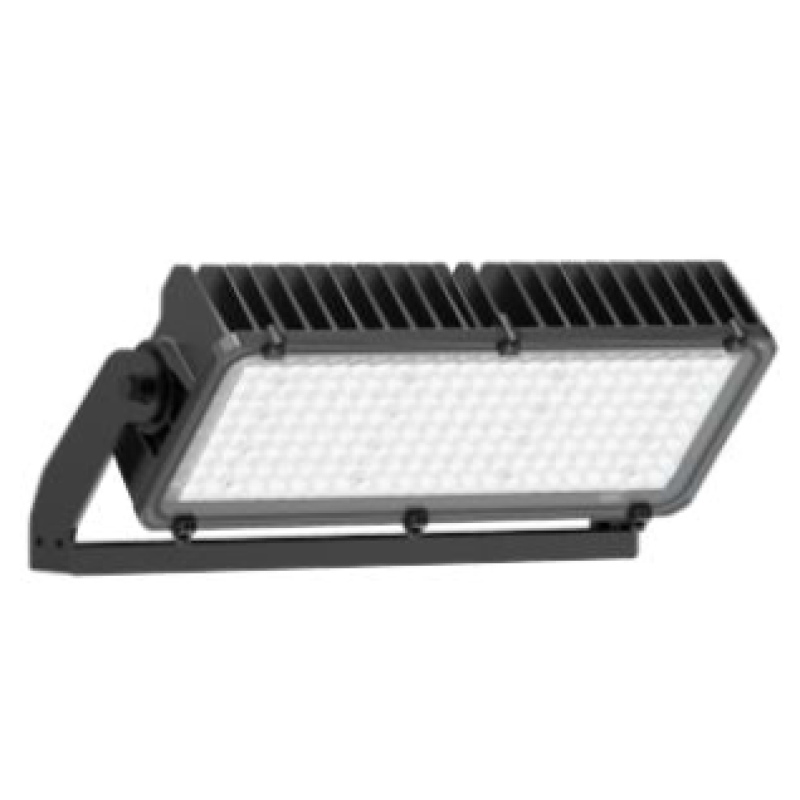

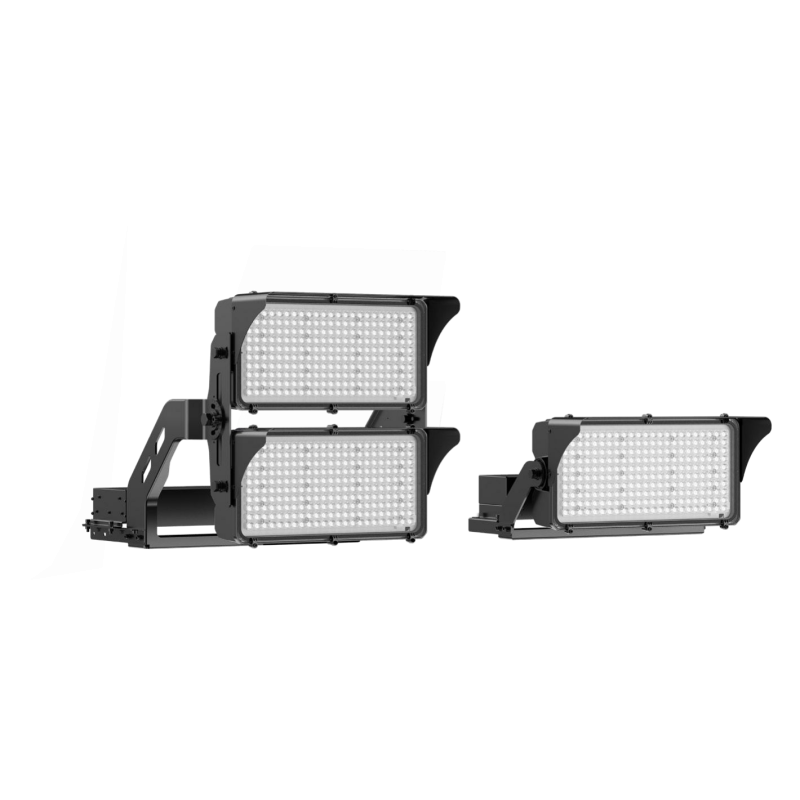

Bluecolt's Arena 4 combines high powered lighting with carefully targeted direction so outdoor areas from stadiums to airports can be fully illuminated, but only where intended. With up to 180000lm output and accessories that include precision aiming devices and visors, Arena 4 brightens any outdoor space without light going where it isn't intended.

Key Features :

  • High efficacy: up to 150 Lumens/Watt

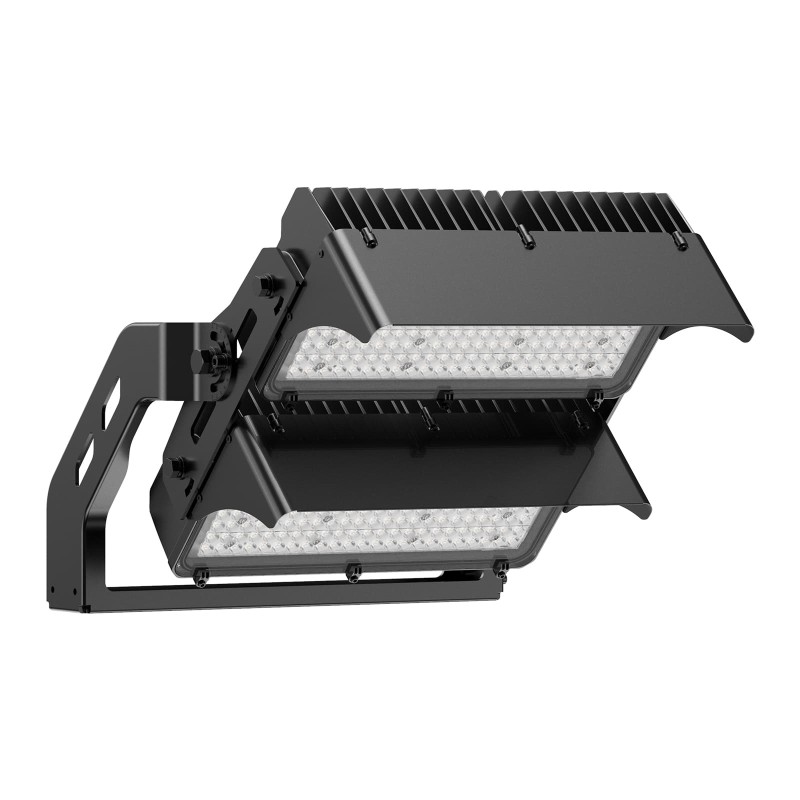

  • Targeted Lighting Accessories
  • IP66 and IK08

Product Options:

Wattage 400W 480W 600W 800W 960W 1200W
Input Voltage AC120-277V, AC277-480V
CCT 3000K 4000K 5700K
Dimming 0-10v dimmable driver. DMX dimmable driver.

Product Options:

Wattage 400W
800W
1200W
600W
480W
960W
CCT 3000K
4000K
5700K
Dimming 0-10v
DMX
ETL Listed
70+ CRI
0-10V Dimming
DMX Dimming
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power:

  • 400W
  • 480W
  • 600W
  • 800W
  • 960W
  • 1200W

Color Temperature:

  • 3000K
  • 4000K
  • 5700K
Compliance

ETL Listed:

Product has been tested for safety and performance data, and it complies with the necessary regulations and codes.

Construction

Materials:

Made with an aluminum alloy and polycarbonate lenses.

Finish:

  • Default color is Black.
  • Powder coated surface treatment.

Ambient Temperature:

-22°F(-30°C) to 122°F(50°C)

Electrical

Dimming Driver:

0-10v dimmable driver.
DMX dimmable driver.

Input Voltage:

AC120-277V, AC277-480V

Optics

Dimming Driver:

  • CRI>70 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

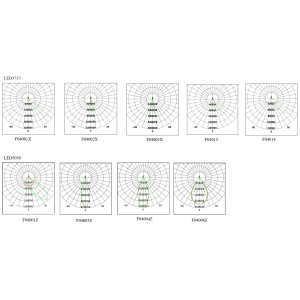

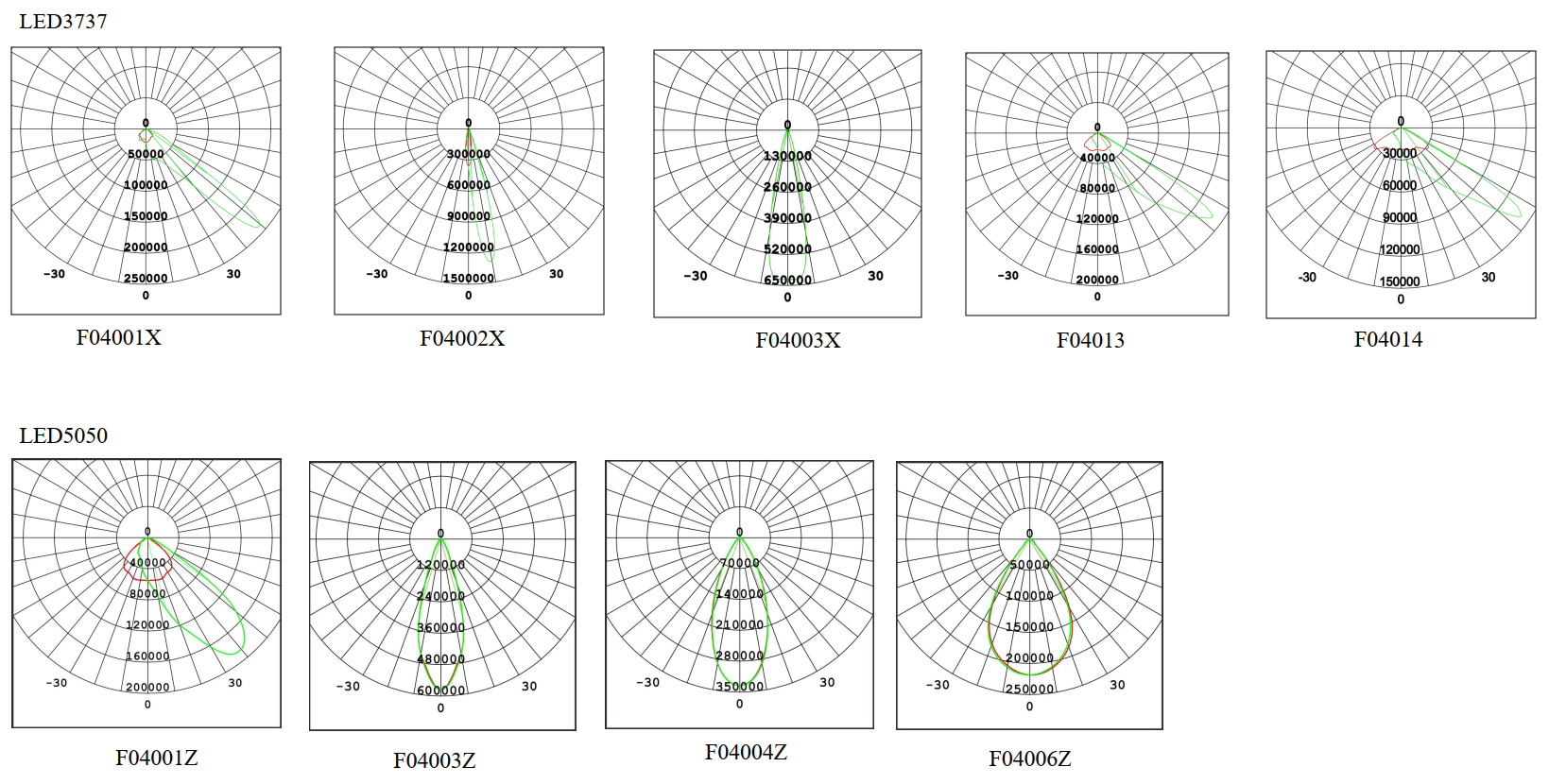

Photometrics
Photometric Data

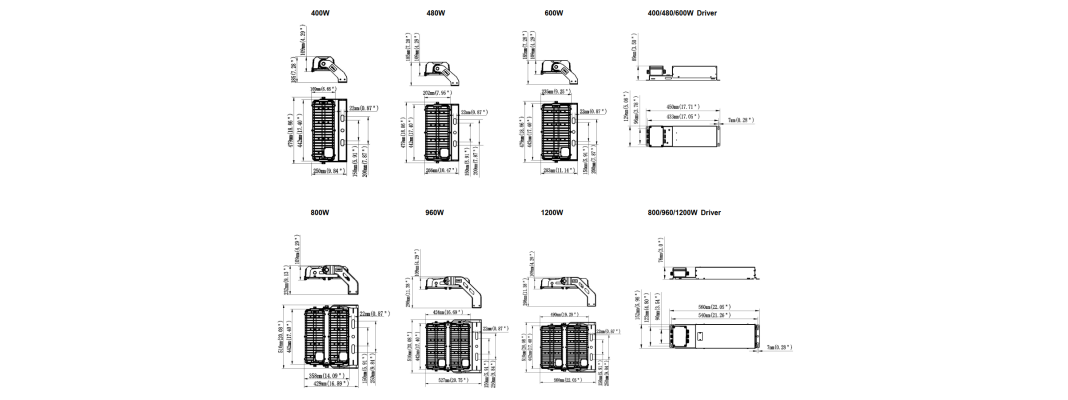

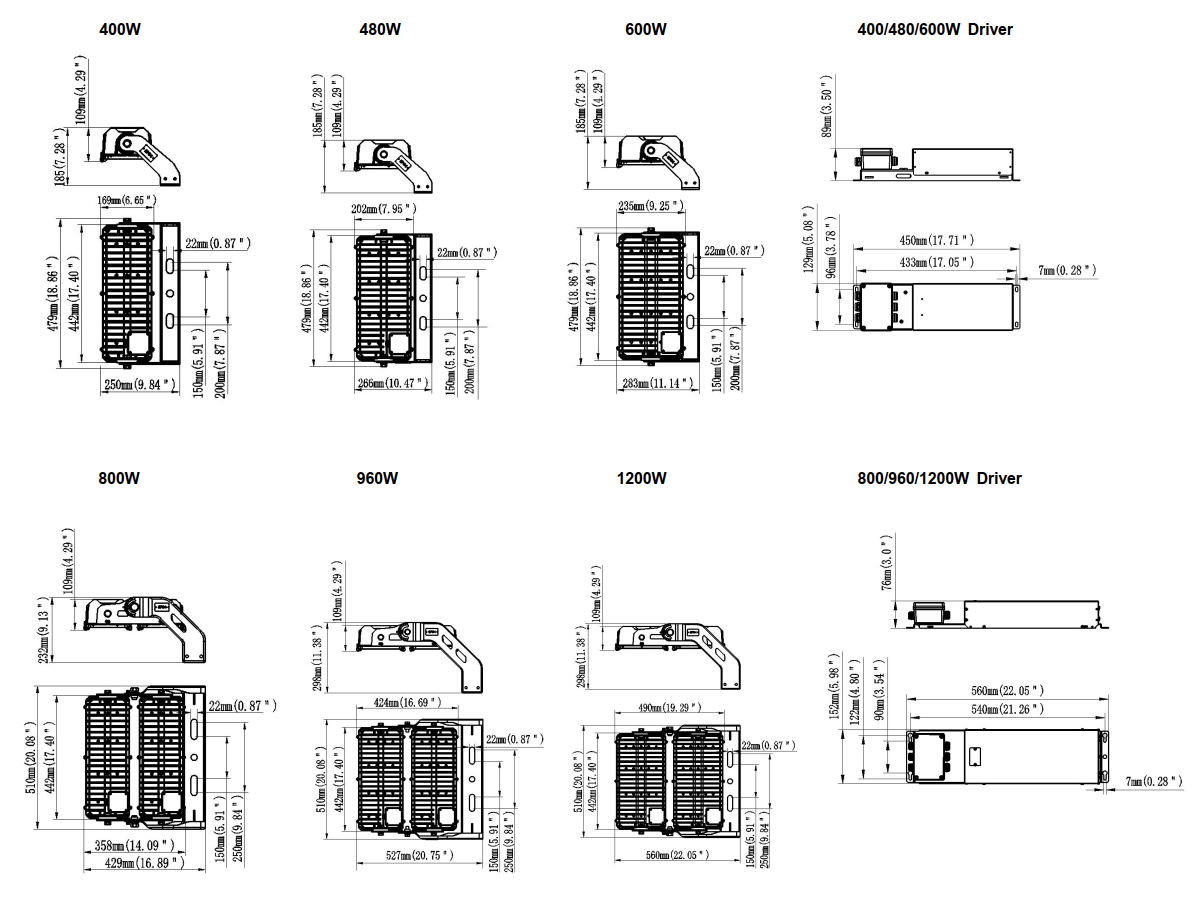

Dimensions

Dimension Image

Performance Data

Model #Nominal CCTLPWWattsLumensCRI
BLA4-600W3000K 4000K 5700K150lm/W400W60,000lm>70Ra
480W72,000lm
600W90,000lm
BLA4-1200W800W120,000lm
960W144,000lm
1200W180,000lm
