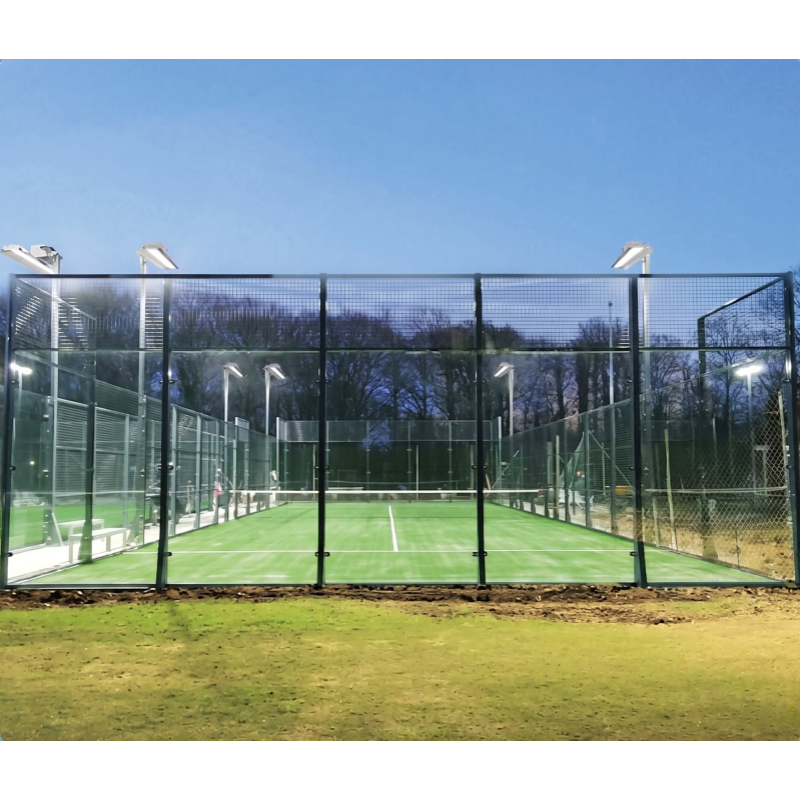

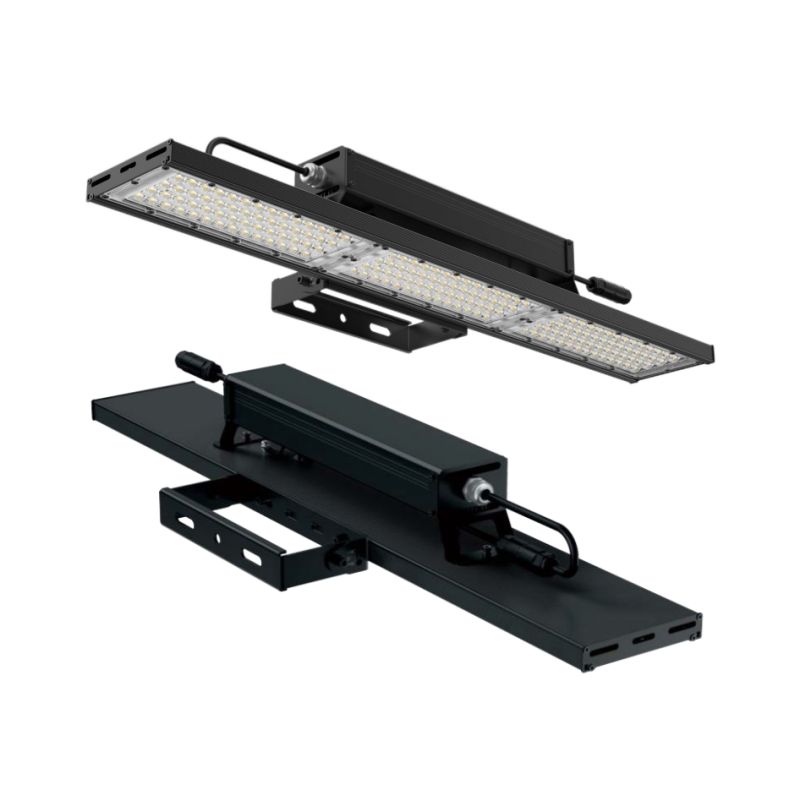

Purpose-engineered for indoor and outdoor paddle courts, the A5 delivers exceptionally uniform, shadow-free illumination due to its linear design and extended LED array.
With luminous efficacy up to 178 lm/W, it achieves superior brightness while lowering energy costs and requiring fewer fixtures per court. The A5 features IP66 and IK10 ratings for total weather and impact protection, plus C5 corrosion resistance for coastal and high-humidity environments.
Multiple mounting options ensure seamless integration into any court configuration—new or retrofit. The Arena 5 is paddle-perfect and performance-proven.
Product Options:
| Wattage |
240W
300W |
| Input Voltage |
120-240VAC, 50/60Hz |
| CCT |
4000K
5000K |
| Dimming |
DALI |
Product Options:
| Input Voltage |
AC120-240V
|
| Wattage |
240W
300W
|
| CCT |
4000K
5000K
|
| Dimming |
DALI Dimming
|
Product Configurator
Select fixture options to generate SKU and download specific Design Files
Technical Specifications
Performance
Power:
Color Temperature:
Compliance
UL Listed:
cULus listed for wet locations.
CE:
Product meets the essential requirements of European Union.
Construction
Materials:
Aluminum alloy housing surface-treated and powder-coated to provide protection in outdoor environments.
Finish:
- Default color is Black.
- Powder coated surface treatment.
Ambient Temperature:
-22°F(-30°C) to 122°F(50°C)
Electrical
Dimming Driver:
DALI dimmable driver.
Input Voltage:
120-240VAC, 50/60Hz

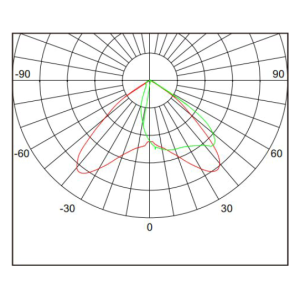

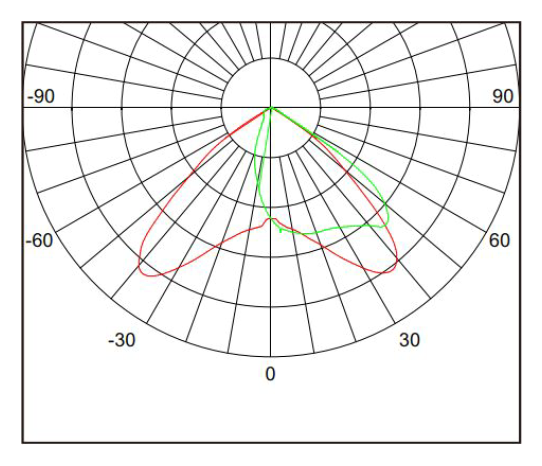

Optics
Dimming Driver:
- CRI>70 Standard.
- Optional CRI>80. PC Lens.
Warranty
5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty
