Bluecolt's CWL brings industrial high bay illumination with easy maintenance and a plethora of dimming options to choose from. Accessories such as an emergency battery or motion sensor for energy saving purposes are also available.

Key Features :

  • High efficacy: up to 140 Lumens/Watt
  • Multiple Dimming Options
  • Emergency Battery and Motion Sensor Accessories

Product Options:

Wattage 40W 50W 60W 80W 100W 120W 160W 180W 200W 240W
Input Voltage AC100-277V, AC120-347V, AC220-240V
CCT 3000K 4000K 5000K 6500K
Dimming 0-10v dimmable driver. 1-10v dimmable driver. DALI dimmable driver. TRIAC dimmable driver.

Product Options:

Input Voltage AC100-277V
AC120-347V
AC220-240V
Wattage 100W
200W
240W
40W
50W
60W
80W
120W
160W
180W
CCT 3000K
4000K
5000K
6500K
Dimming DALI Dimming
0-10v
1-10v
TRIAC
DLC 5.1 Premium
CE
ETL Listed
80+ CRI
1-10V Dimming
0-10V Dimming
TRIAC Dimming
DALI Dimming
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power:

  • 40W
  • 50W
  • 60W
  • 80W
  • 100W
  • 120W
  • 160W
  • 180W
  • 200W
  • 240W

Color Temperature:

  • 3000K
  • 4000K
  • 5000K
  • 6500K
Compliance

ETL Listed:

Product has been tested for safety and performance data, and it complies with the necessary regulations and codes.

DLC®:

DLC(DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org

CE:

Product meets the essential requirements of European Union.

Construction

Materials:

Made of aluminum and polycarbonate lenses.

Finish:

  • Default colors are White, Silver, or Black.
Electrical

Dimming Driver:

0-10v dimmable driver.

1-10v dimmable driver.

DALI dimmable driver.

TRIAC dimmable driver.

Input Voltage:

AC100-277V, AC120-347V, AC220-240V

Optics

Dimming Driver:

  • CRI>80 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

Photometrics

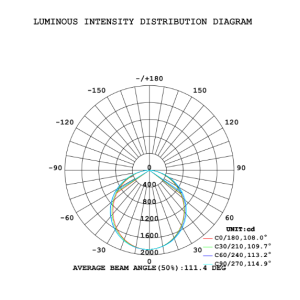

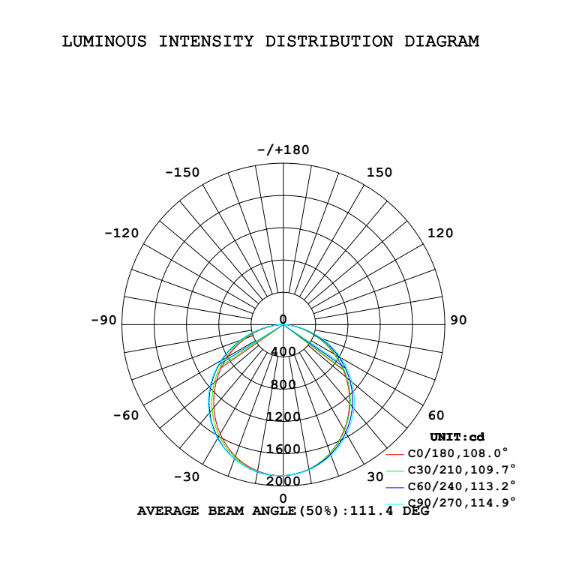

Photometric Data

Dimensions

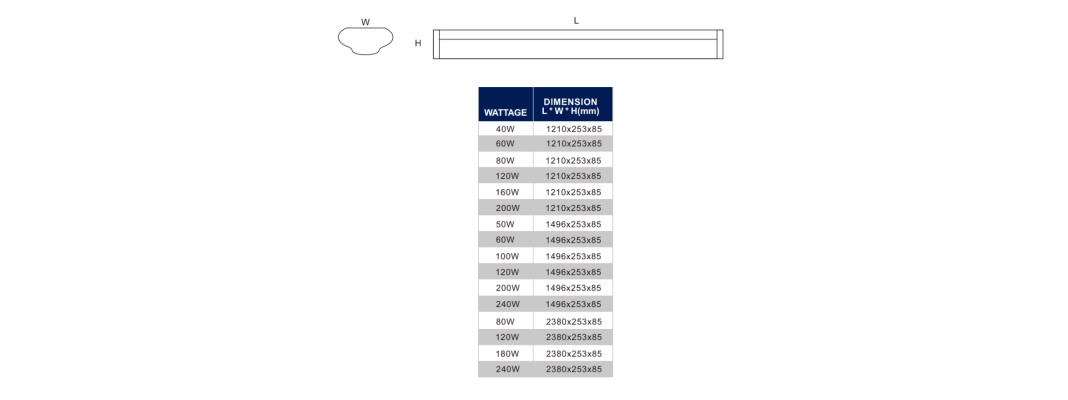

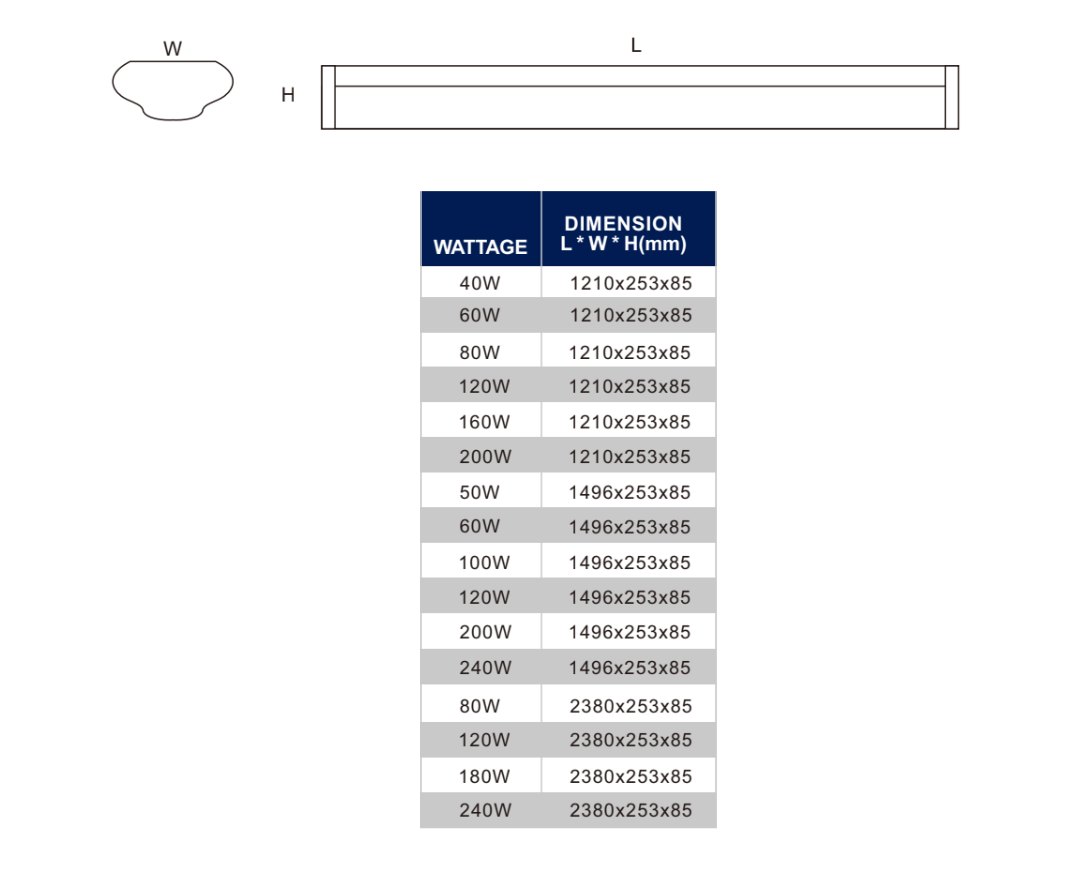

Dimension Image

Performance Data

Model #Nominal CCTLPWWattsLumensCRI
BLCWL-40W3000K 4000K 5000K 6500K115lm/W40W4,600lm>83Ra
BLCWL-50W50W5,750lm
BLCWL-60W60W6,900lm
BLCWL-80W80W9,200lm
BLCWL-100W100W11,500lm
BLCWL-120W120W13,800lm
BLCWL-160W160W18,400lm
BLCWL-180W180W20,700lm
BLCWL-200W200W23,000lm
BLCWL-240W240W27,600lm
BLCWL-40W140lm/W40W5,600lm
BLCWL-50W50W7,000lm
BLCWL-60W60W8,400lm
BLCWL-80W80W11,200lm
BLCWL-100W100W14,000lm
BLCWL-120W120W16,800lm
BLCWL-160W160W22,400lm
BLCWL-180W180W25,200lm
BLCWL-200W200W28,000lm
BLCWL-240W240W33,600lm
