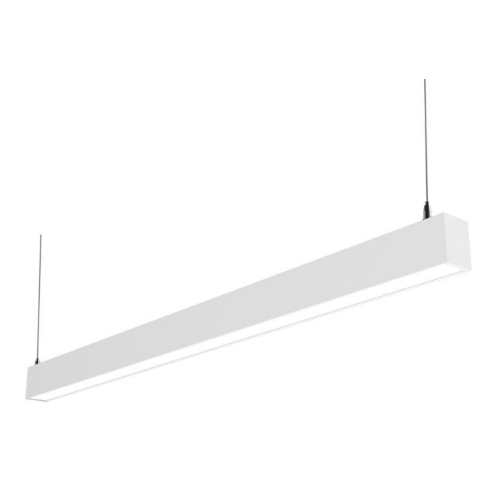

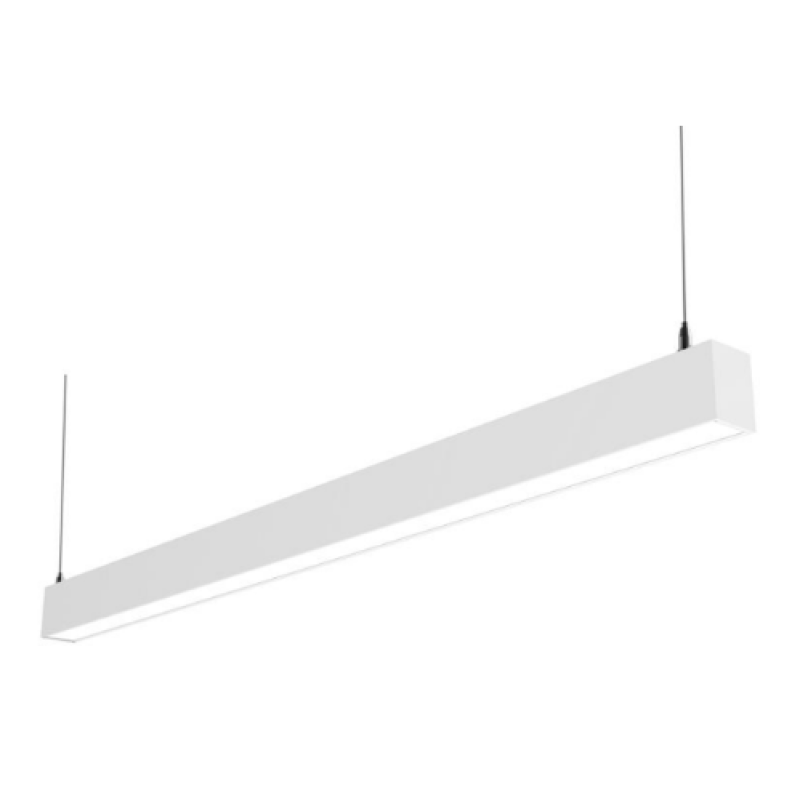

Bluecolt's EAL2 has a sleek and modern touch with additional illumination with its up-down lighting option. With multiple types of lenses, linkable features, and mounting options, this fixture can bring an architectural touch to any residential, commercial, or hospitality interior.
Key Features :
- CCT and Wattage Selectable
- Linkable
- Up-down lighting option
- 4 different mounting options
Product Options:
| Wattage Selectable |
20W/15W/10W
40W/30W/20W
80W/60W/40W
25W/20W/15W
50W/40W/30W
100W/80W/60W |
| Input Voltage |
AC120-277V, AC120-347V |
| CCT Selectable |
3000K/3500K/4000K |
| Dimming |
0-10v |
Product Options:
| Input Voltage |
AC120-277V
AC120-347V
|
| Wattage |
50W/40W/30W
15W/20W/25W
20W/15W/10W
40W/30W/20W
80W/60W/40W
100W/80W/60W
|
| CCT |
3000K/3500K/4000K
|
| Dimming |
0-10v
|
Product Configurator
Select fixture options to generate SKU and download specific Design Files
Technical Specifications
Performance
Power (Field Adjustable):
- 20W/15W/10W
- 40W/30W/20W
- 80W/60W/40W
- 25W/20W/15W
- 50W/40W/30W
- 100W/80W/60W
Color Temperature (Field Adjustable):
Compliance
ETL Listed:
Product has been tested for safety and performance data, and it complies with the necessary regulations and codes.
DLC®:
DLC(DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org
Construction
Materials:
Made of extruded aluminum.
Finish:
Ambient Temperature:
-13°F(-25°C) to 122°F(50°C)
Electrical
Dimming Driver:
0-10v dimmable driver.
Input Voltage:
AC120-277V, AC120-347V
Optics
Dimming Driver:
Warranty
5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty
