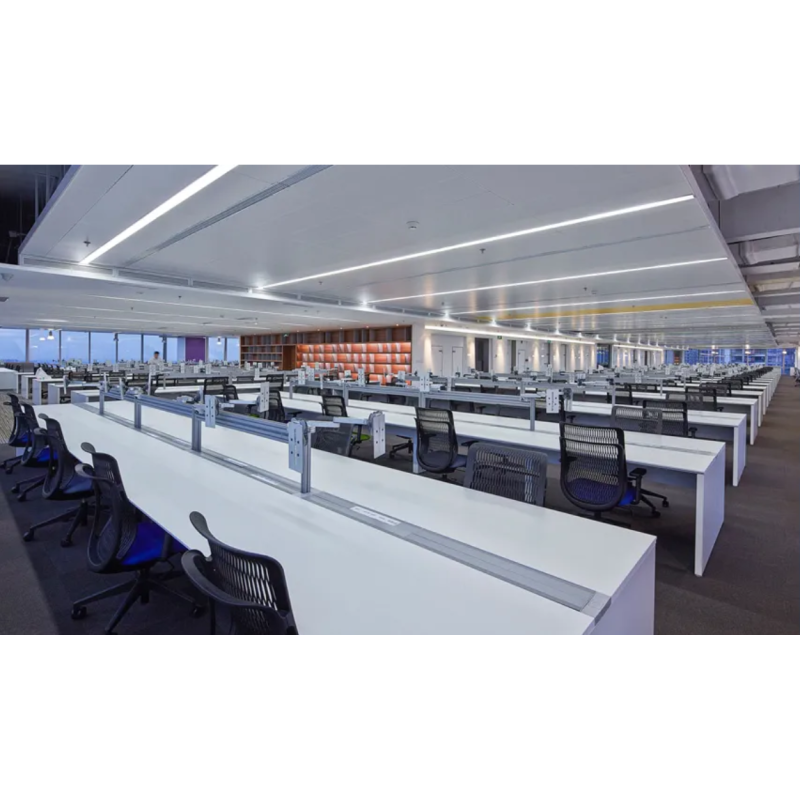

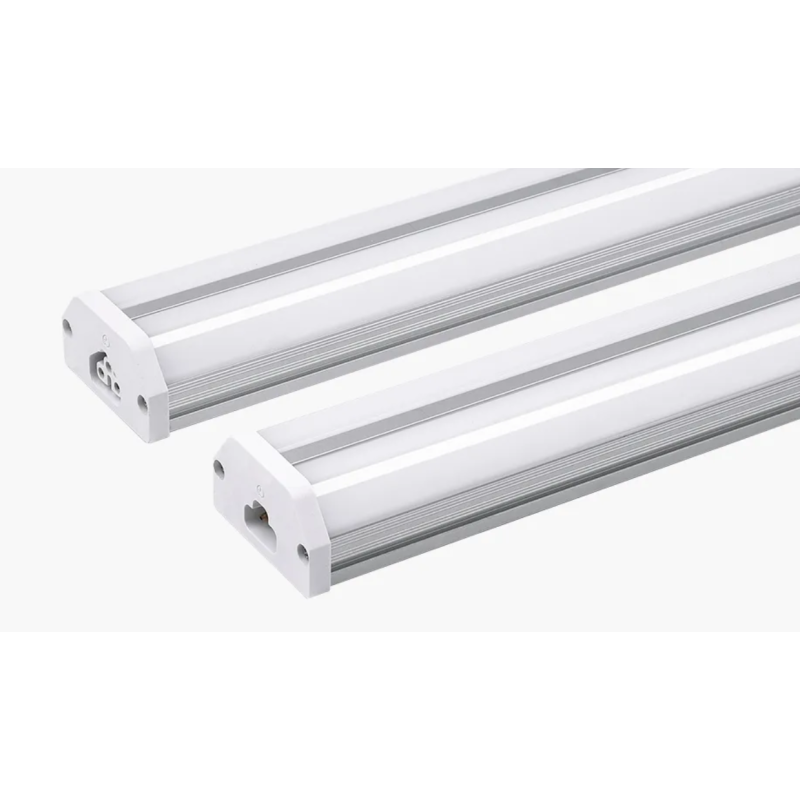

Bluecolt’s EcoLink LED linear light is a linkable slim-line fixture designed for applications that require continuous lighting. It is a cost-effective solution that is easy to install and is ideal for accent lighting. The EcoLink is versatile enough to be also used for utility lighting needs.

Key Features :

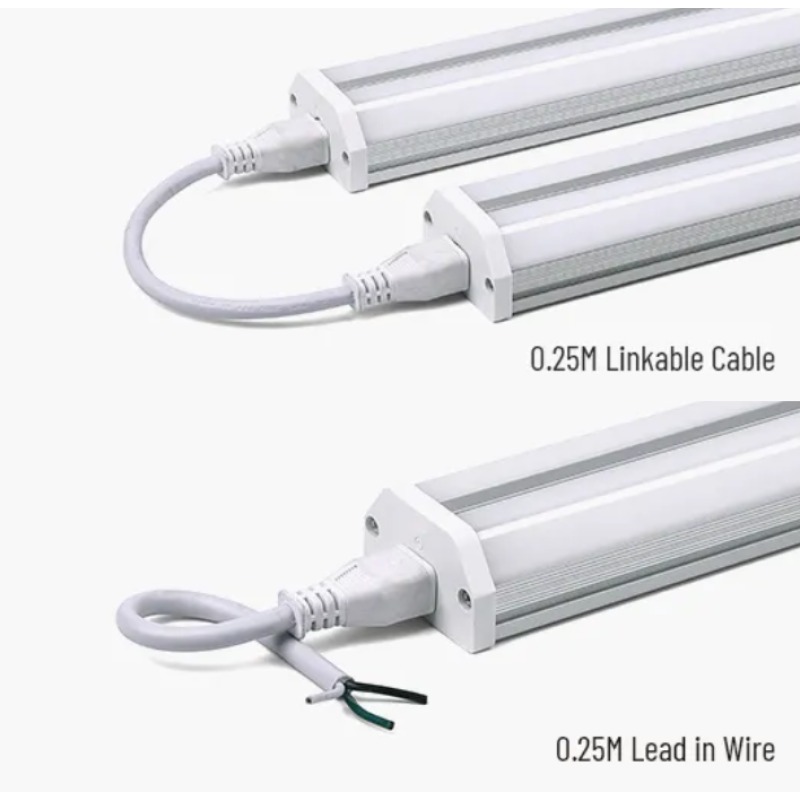

  • Linkable
  • Over 50,000 hours lifespan
  • High efficacy, up to 130 Lumens Per Watt

Product Options:

Wattage 15W 25W 30W 40W 44W 60W
Input Voltage AC100-277V, AC100-240V
CCT 3000K 4000K 5000K 5700K 6000K

Product Options:

Input Voltage AC100-277V
AC100-240V
Wattage 40W
60W
30W
15W
25W
44W
CCT 3000K
4000K
5000K
5700K
6000K
DLC 5.1 Premium
ETL Listed
80+ CRI
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power:

  • 15W
  • 25W
  • 30W
  • 40W
  • 44W
  • 60W

Color Temperature:

  • 3000K
  • 4000K
  • 5000K
  • 5700K
  • 6000K
Compliance

ETL Listed:

Product has been tested for safety and performance data, and it complies with the necessary regulations and codes.

DLC®:

DLC(DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org

Construction

Materials:

Made with aluminum housing.

Finish:

  • Default color is White.

Ambient Temperature:

14°F(-10°C) to 113°F(45°C)

Electrical

Input Voltage:

AC100-277V, AC100-240V

Optics

Driver:

  • CRI>80 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

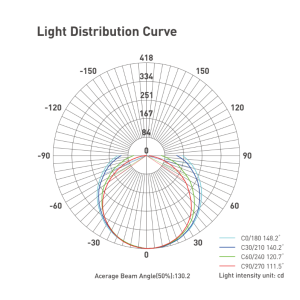

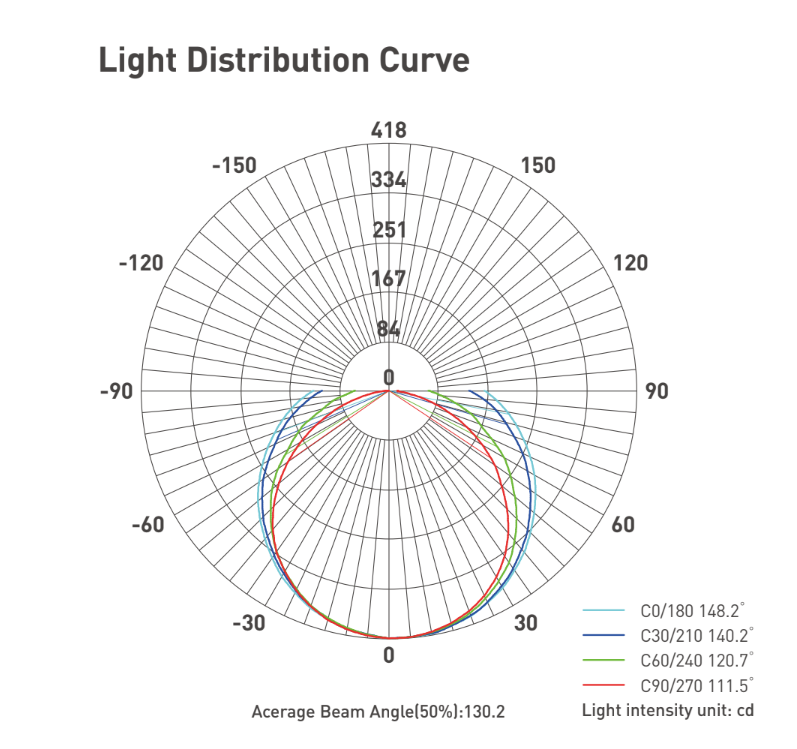

Photometrics
Photometric Data

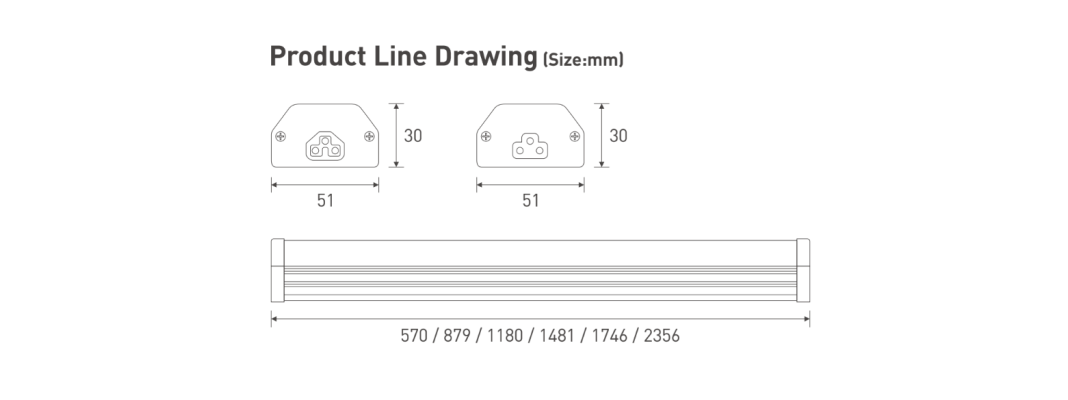

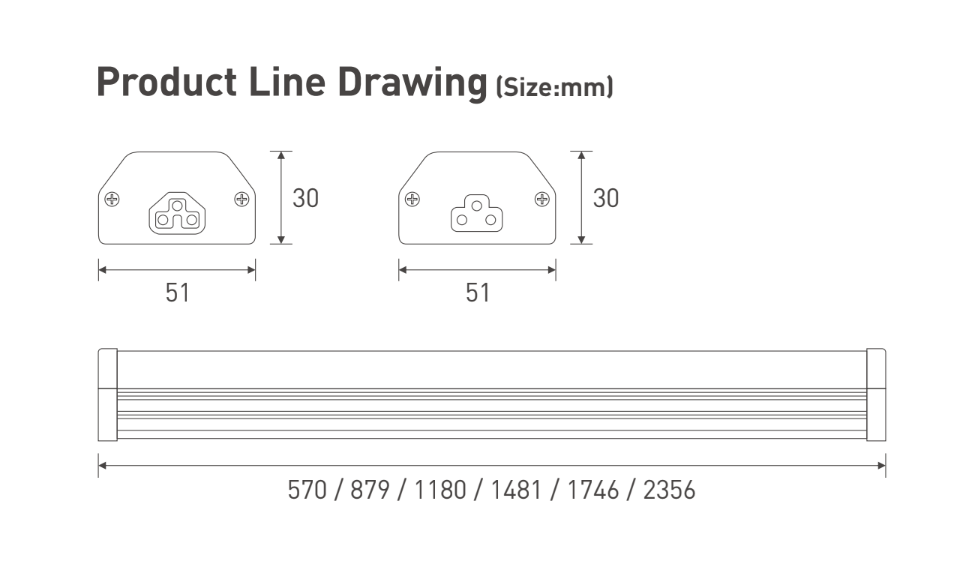

Dimensions

Dimension Image

Performance Data

Model #Nominal CCTLPWWattsLumensCRI
BLEL2-15W3000K 4000K 5000K 5700K 6000K110lm/W15W1,650lm>80Ra
BLEL2-25W25W2,750lm
BLEL2-30W30W3,300lm
BLEL2-40W40W4,400lm
BLEL2-44W44W4,840lm
BLEL2-60W60W6,600lm
