Bluecolt's Flex Chain provides powerful illumination to the wall washer lineup with up to 3600lm/M and various beam angles to direct that lumen output. The silicone and aluminum alloy structure of the wall washer allow it to provide IP67 durability as well.

Key Features :

  • High Lumen Output: up to 3600 Lumens/M
  • Various Beam Angles
  • IP67

Product Options:

Wattage 16W/FT
Input Voltage DC24V
CCT 1800 2200 2700 3000 4000 5000 6500 R B G RBGW
Dimming PWM

Product Options:

Input Voltage DC24V
Wattage 16WF
CCT 2700K
3000K
4000K
5000K
2200K
6500K
R
G
B
RBGW
1800K
Dimming PWM Dimming (Standard)
UL/CUL
80+ CRI
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power:

  • 16W/FT

Color Temperature:

  • 1800
  • 2200
  • 2700
  • 3000
  • 4000
  • 5000
  • 6500
  • R
  • B
  • G
  • RBGW
Compliance

UL Listed:

cULus listed for wet locations.

Construction

Materials:

Made with an aluminum alloy shell and silicone molding.

Finish:

  • Default color is Grey.

Ambient Temperature:

-13°F(-25°C) to 104°F(40°C)

Electrical

Dimming Driver:

PWM dimmable driver.

Input Voltage:

DC24V

Optics

Dimming Driver:

  • CRI>80 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

Photometrics

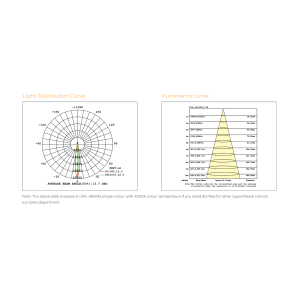

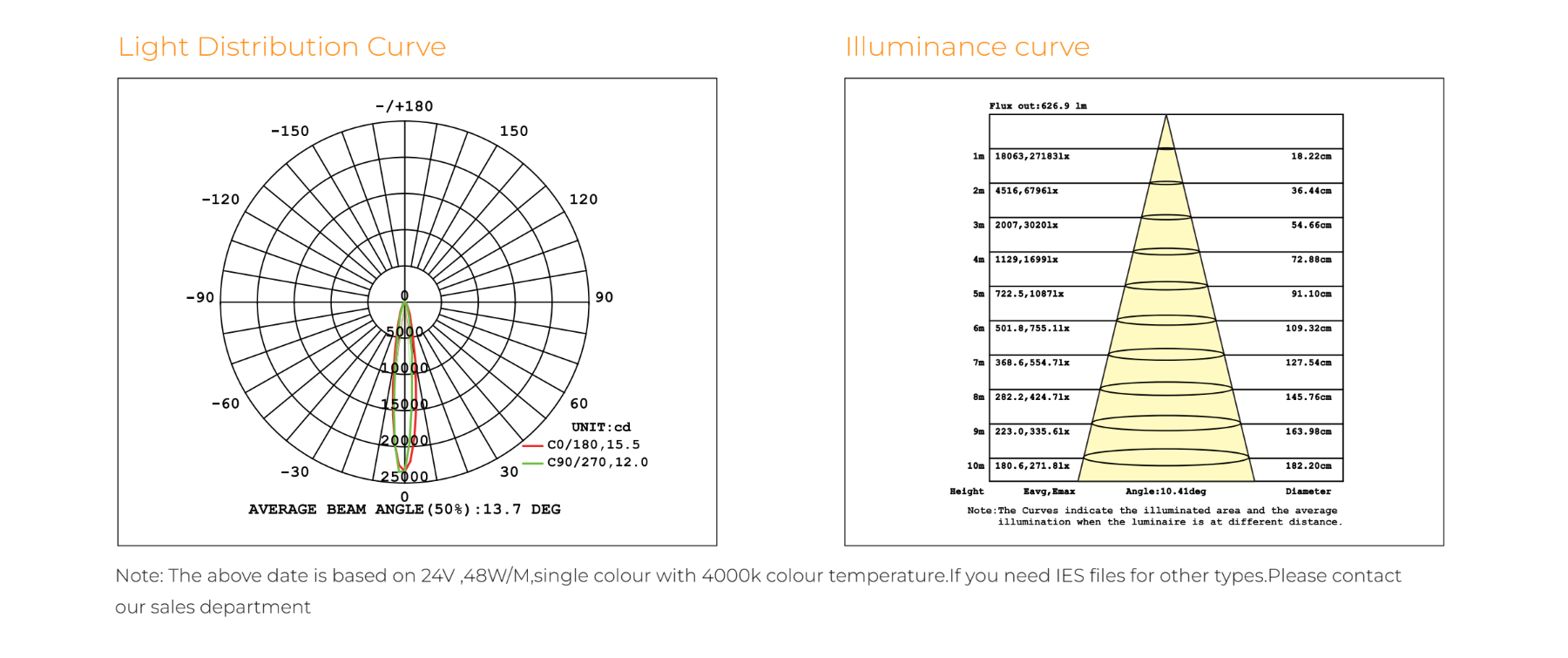

Photometric Data

Dimensions

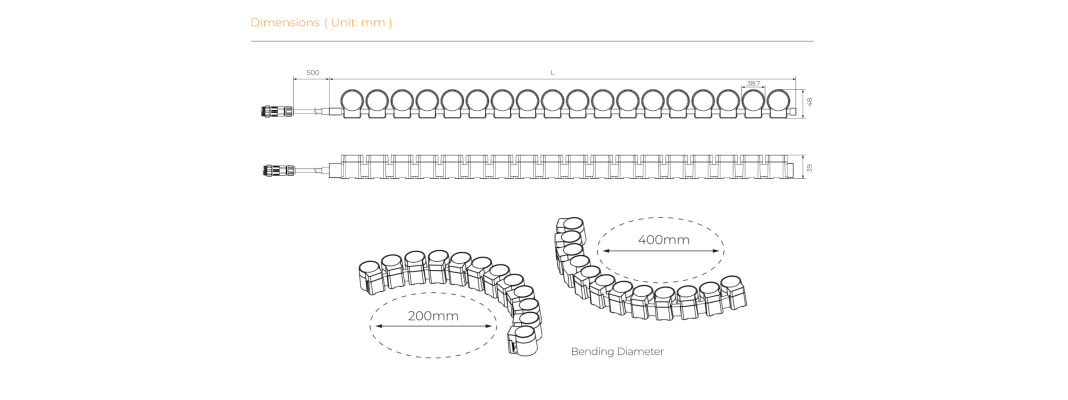

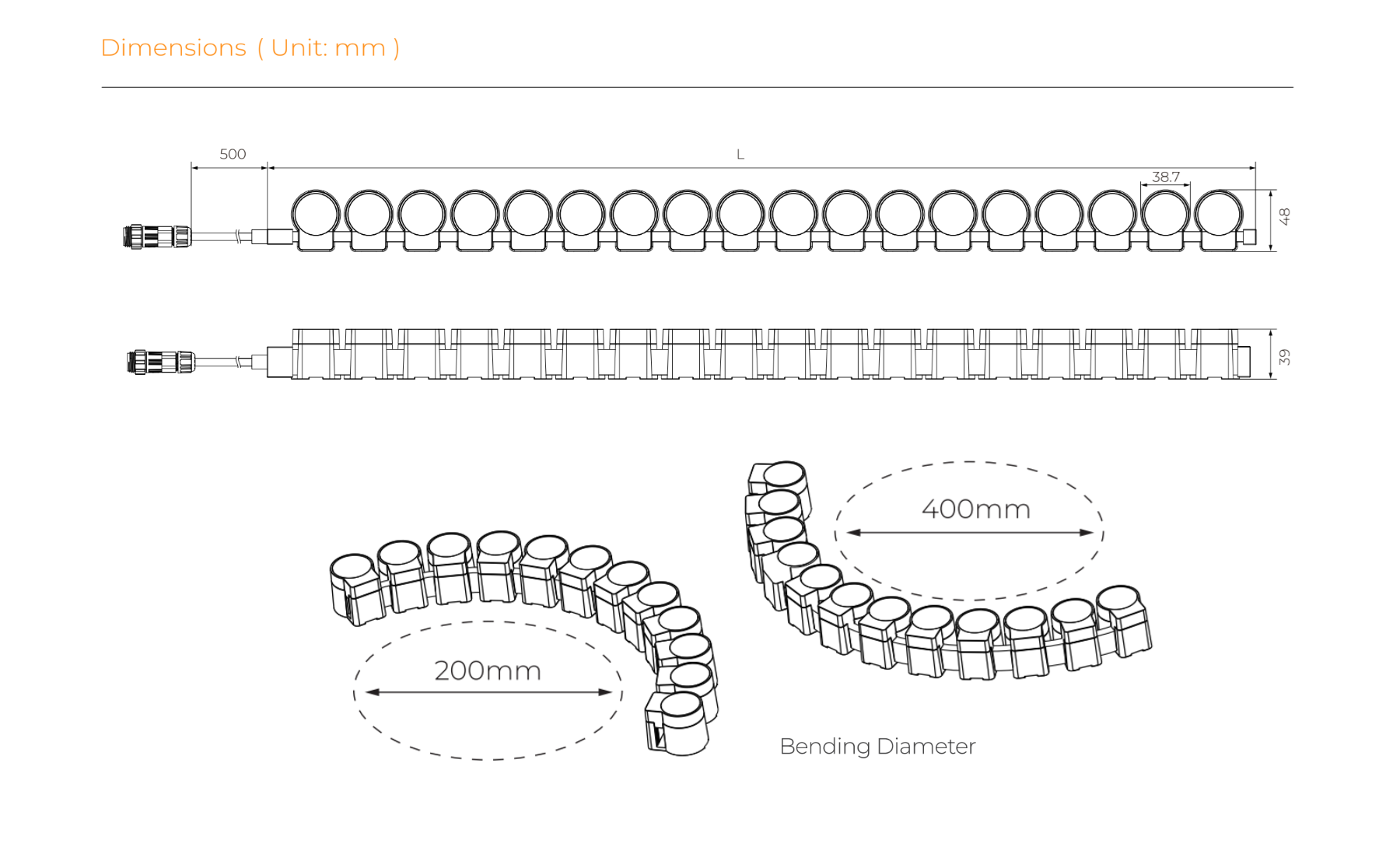

Dimension Image

Performance Data

Model #Nominal CCTLPWWattsLumensCRI
BLFC-16WF180048.1lm/W16W/FT770lm/FT>80Ra
220047.2lm/W16W/FT755lm/FT
270058.0lm/W16W/FT928lm/FT
300065.9lm/W16W/FT1,054lm/FT
400069.5lm/W16W/FT1,112lm/FT
500074.6lm/W16W/FT1,194lm/FT
650071.7lm/W16W/FT1,147lm/FT
R39.3lm/W16W/FT629lm/FT
B70.3lm/W16W/FT1,125lm/FT
G20.3lm/W16W/FT325lm/FT
RBGW46.4lm/W16W/FT742lm/FT
