Floor Light 1

Sports Lighting

Bluecolt's FL1 brings color and light to outdoor environments as a paving fixture with multiple color options and IP67 and IK10 ratings so it can endure any challenging weather.

Key Features :

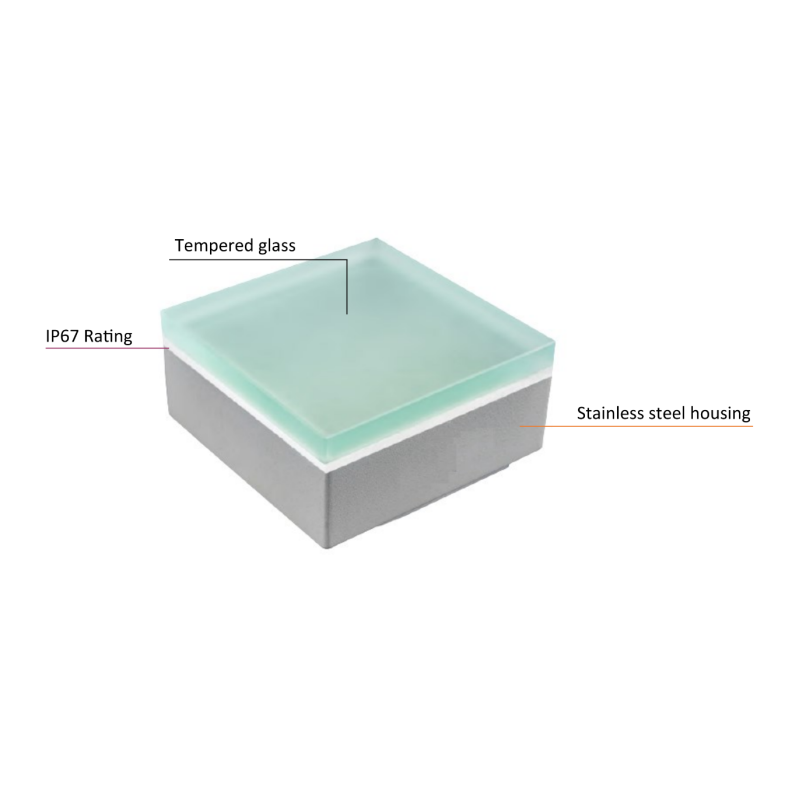

  • Tempered glass cover
  • IP67 and IK10
  • Stainless steel housing

Product Options:

Wattage 1.3W 2.6W 5W 8W
Input Voltage DC24V
CCT 3000K 3500K 4000K 5000K R B G RBGA
Dimming PWM

Product Options:

Input Voltage DC24V
Wattage 1.3W
2.6W
5W
8W
CCT 3000K
3500K
4000K
5000K
RGB
R
G
B
Dimming PWM Dimming (Standard)
CE
ETL Listed
90+ CRI
Wet Location
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power:

  • 1.3W
  • 2.6W
  • 5W
  • 8W

Color Temperature:

  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • R
  • B
  • G
  • RBGA
Compliance

ETL Listed:

Product has been tested for safety and performance data, and it complies with the necessary regulations and codes.

CE:

Product meets the essential requirements of European Union.

Construction

Materials:

Made of tempered glass and stainless steel.

Finish:

  • Default color is Frosted White.

Ambient Temperature:

-22°F(-30°C) to 122°F(50°C)

Electrical

Dimming Driver:

PWM dimmable driver.

Input Voltage:

DC24V

Optics

Dimming Driver:

  • CRI>90 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

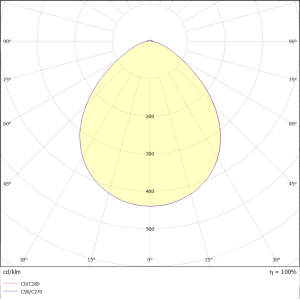

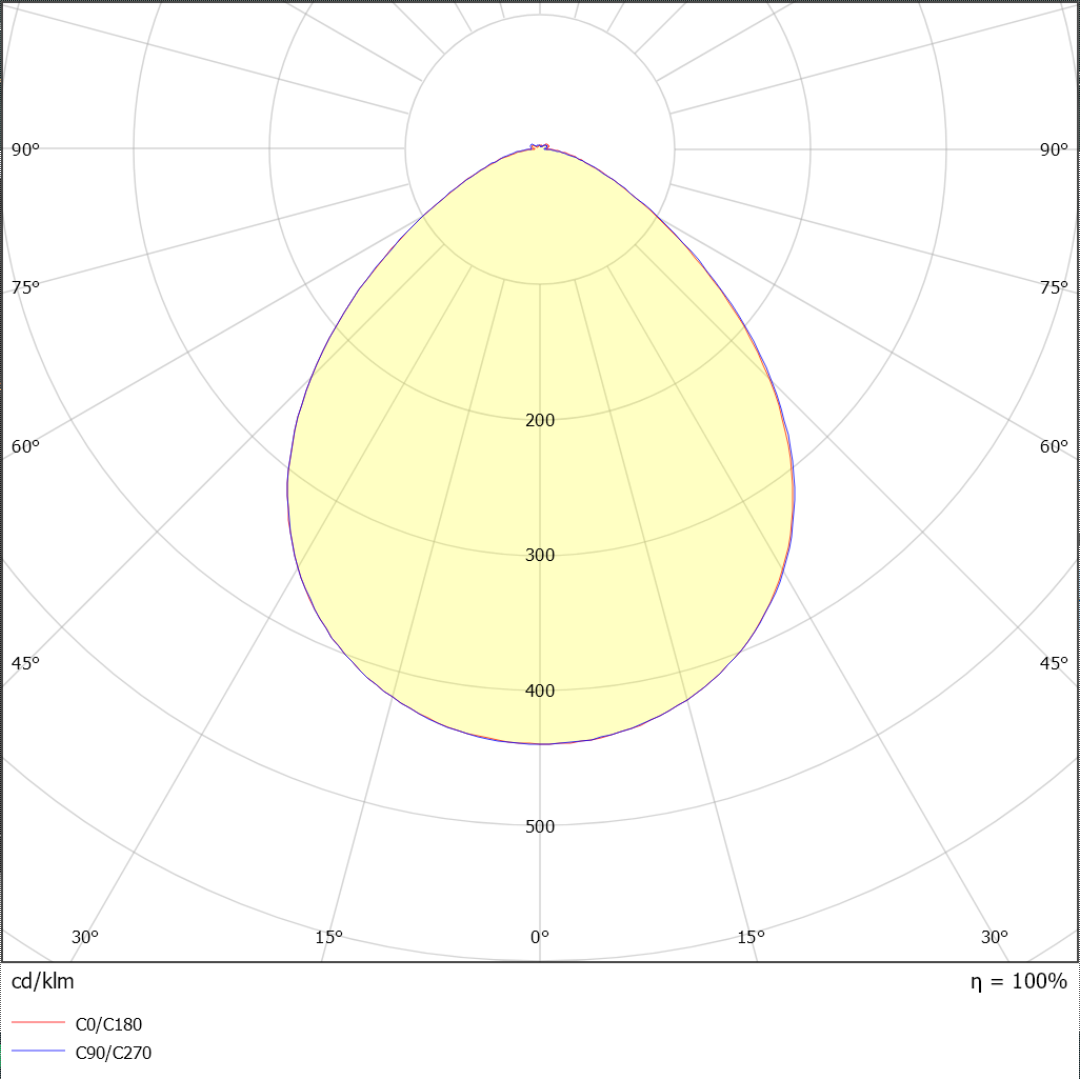

Photometrics
Photometric Data

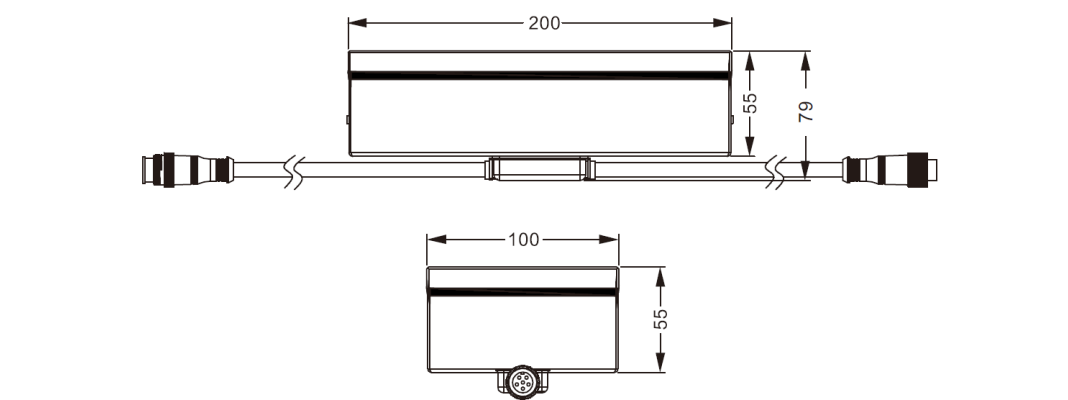

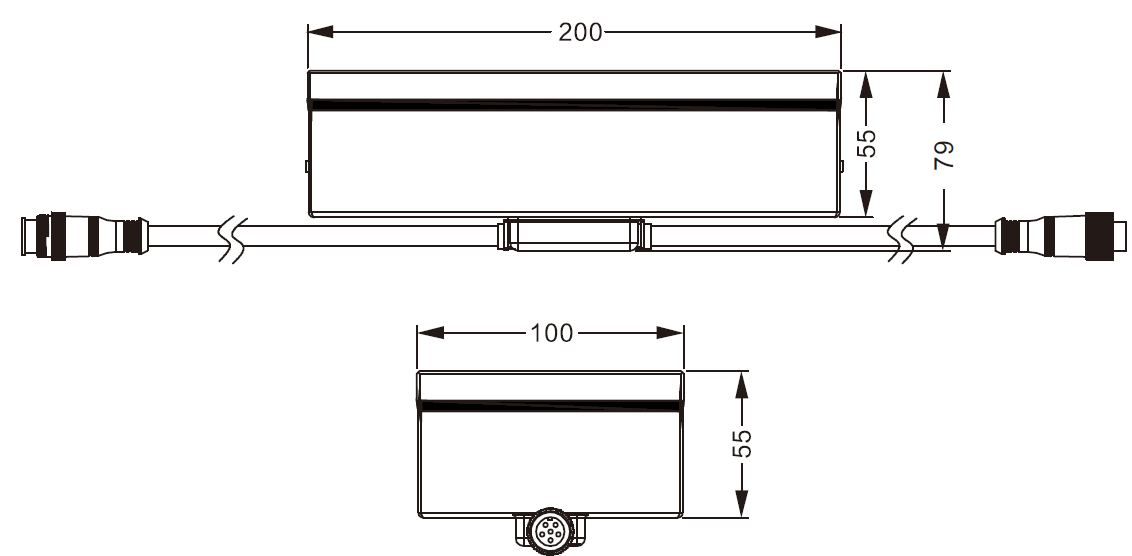

Dimensions

Dimension Image

Performance Data

Model #Nominal CCTLPWWattsLumensCRI
BLFL1-1.3W3000K 3500K 4000K 5000K R G B RGB Addressable50lm/W1.3W65lm>90Ra
BLFL1-2.6W2.6W130lm
BLFL1-5W5W250lm
BLFL1-8W8W400lm
