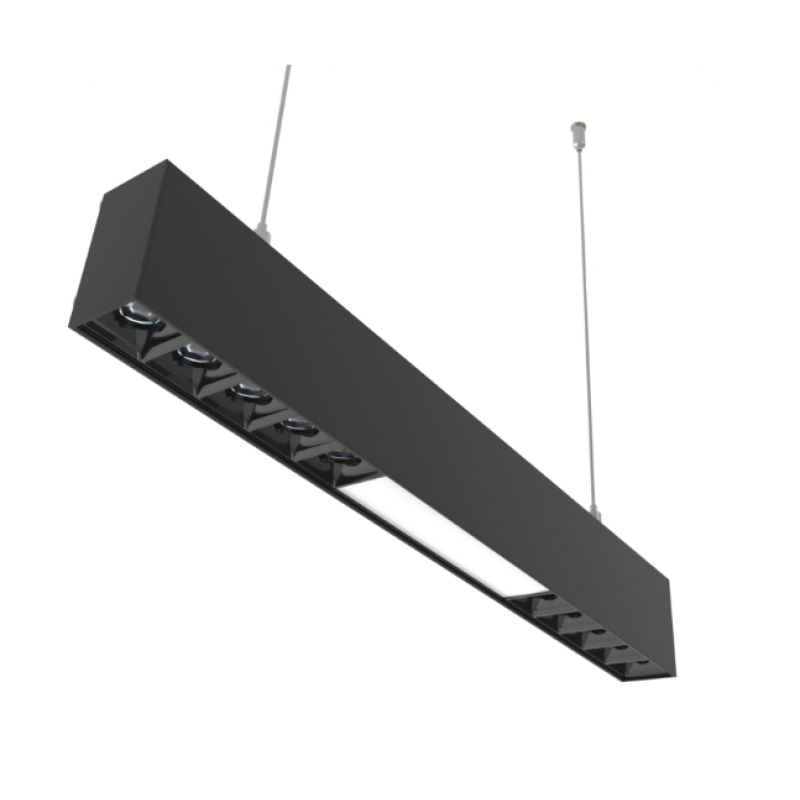

Linear 2” Arc Series is a uniquely customizable fixture with angular and curvilinear components that allow for a nearly infinite number of continuous shape combinations.

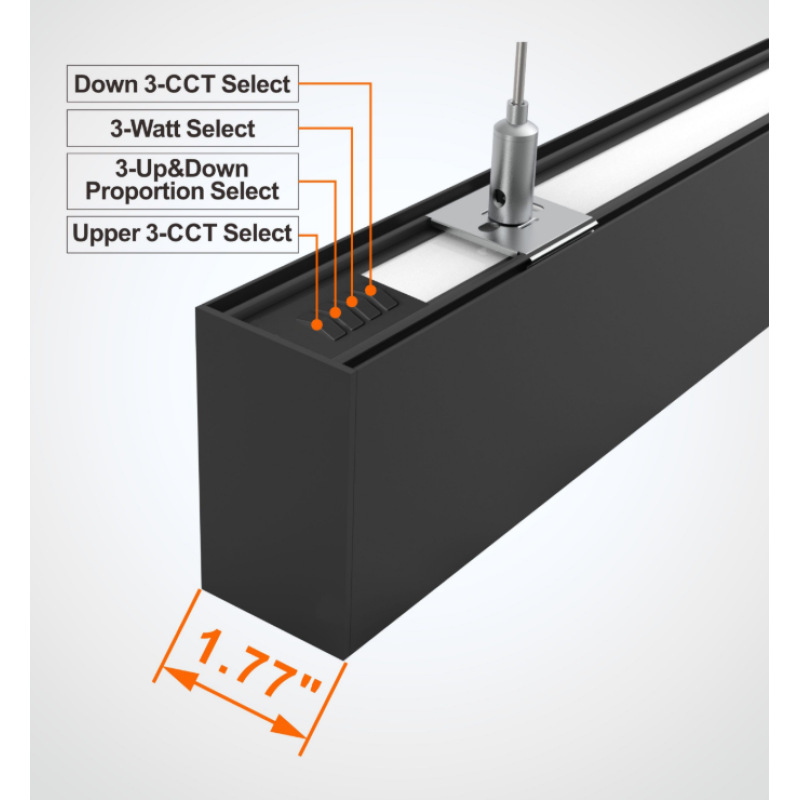

It also (optionally) provides the ability to customize in the field, the color temperature (CCT), wattage & direct / indirect light level percentages.

Many types of installation options and optics are also available.

Key Features :

  • Color Temperature Selectable
  • Various mounting bracket types
  • Multiple shapes and custom options available

Product Options:

Wattage 20W, 30W, 40W, 50W, 60W, 80W
25W Selectable (15W/20W/25W)
50W Selectable (30W/40W/50W)
75W Selectable (45W/60W/75W)
100W Selectable (60W/80W/100W)
Color Black, White, Silver
CCT 3CCT Selectable (3000K/3500K/4000K)
Options Direct/ Indirect
Motion Sensor
Bluetooth Mesh Sensor
Emergency Battery
90 Ra
L-Connection (20W)
T-Connection (40W)
+Connection (50W)
Mounting Pendant Mount, Surface Mount, Wall Mount, Recessed Mount, Spackle Flange Mount
Size 2ft (20W or 25WS), 4ft (40W or 50WS), 6ft (60W or 75WS), 8ft (80W or 100WS)
Beam Angle 12॰, 24॰, 38॰, 50॰, 50x50॰, 70x70॰, 35x70॰, 90x90॰

Product Options:

Input Voltage AC120-347V
Wattage 20W
50W
30W
60W
40W
80W
25WS (15W/ 20W/ 25W Selectable)
50WS (30W/ 40W/ 50W Selectable)
75WS (45W/ 60W/ 75W Selectable)
100WS (60W/ 80W/ 100W Selectable)
CCT 3000K/3500K/4000K
Dimming DALI Dimming
0-10v
ETL Listed
3 CCT Selectable
80+ CRI
0-10V Dimming
DALI Dimming
Up & Down Light
EM Option
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files

Technical Specifications

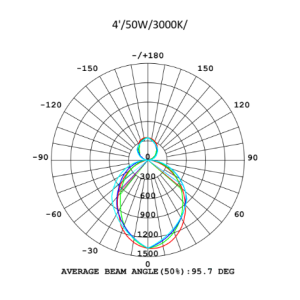

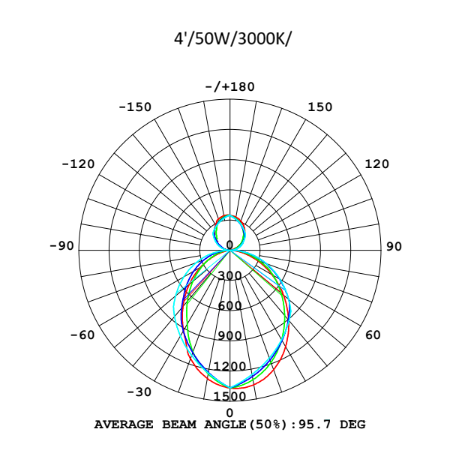

Photometrics
Photometric Data

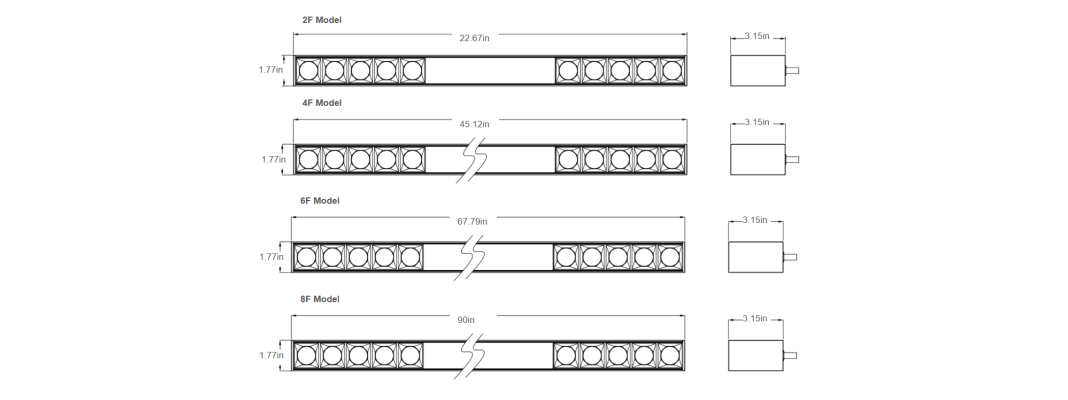

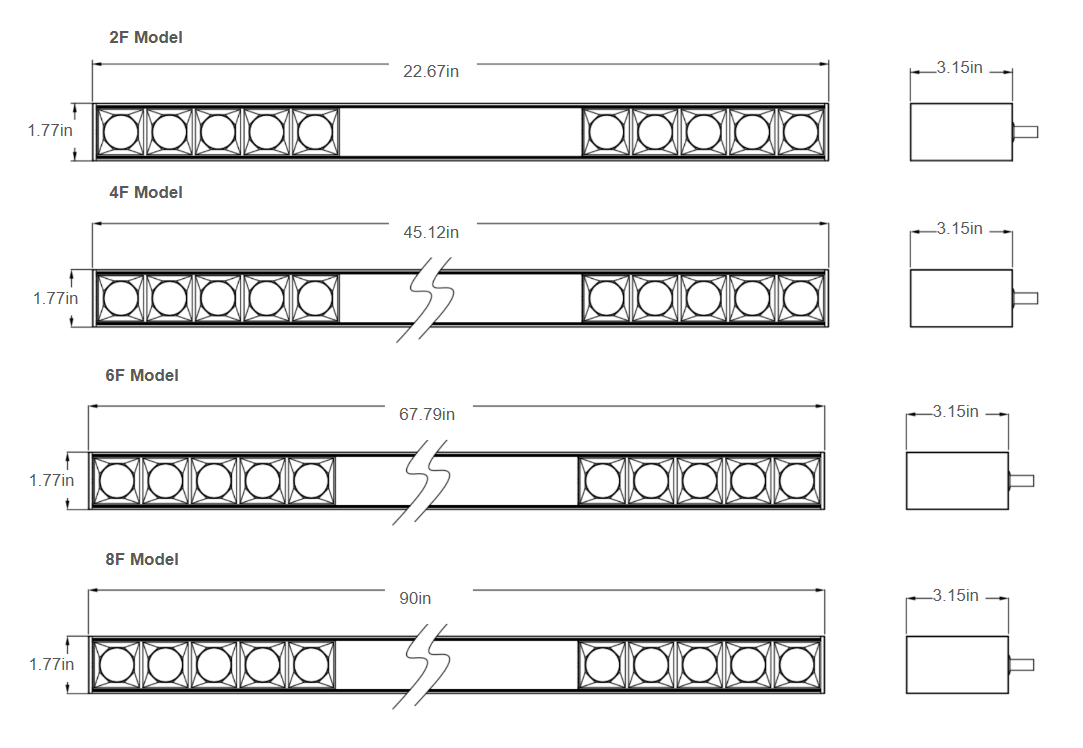

Dimensions

Dimension Image

Performance Data

Model #Lumen LevelWattage SelectableNominal CCTCCT SelectableLPWWattsLumensCRI
BLL2A-20W-No3CCT (3000K/35000K/4000K)YesUp to 100lm/W20W2,000lm>80Ra
BLL2A-30W-30W3,000lm
BLL2A-40W-40W4,000lm
BLL2A-50W-50W5,000lm
BLL2A-60W-60W6,000lm
BLL2A-80W-80W8,000lm
BLL2A-25W1Yes15W1,500lm
220W2,000lm
325W2,500lm
BLL2A-50W130W3,000lm
240W4,000lm
350W5,000lm
BLL2A-75W145W4,500lm
260W6,000lm
375W7,500lm
BLL2A-100W160W6,000lm
280W8,000lm
3100W10,000lm
