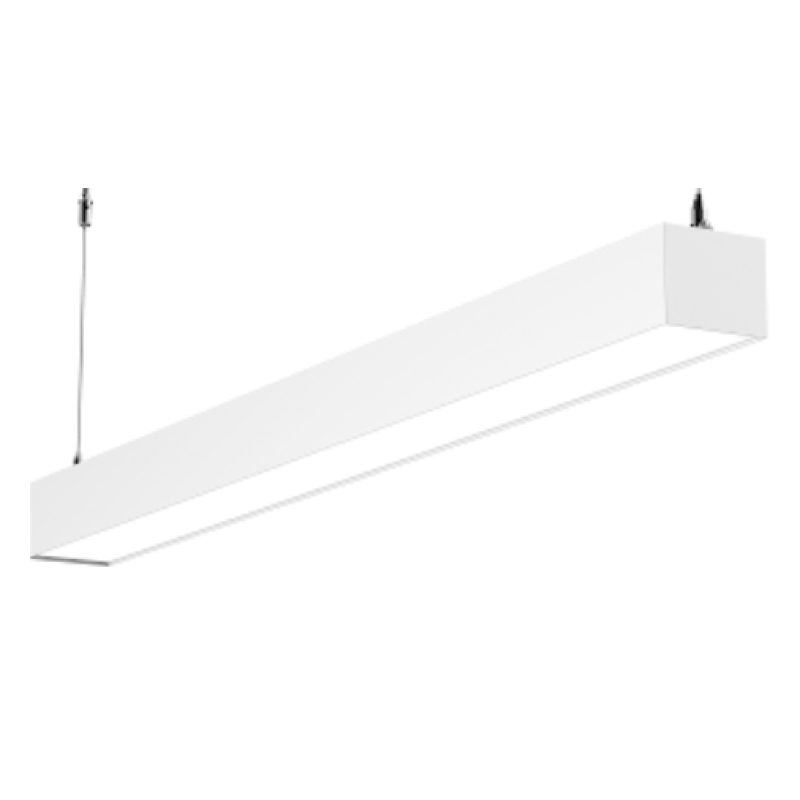

4" Architectural Linear

Explosion Proof

The L4A redefines minimalist lighting with sleek, uniform illumination perfect for any space. Featuring cutting-edge linear LED technology, the L4A offers unmatched efficiency and endless customization: choose from various apertures, mounting options, and continuous runs. Its durable, modular design ensures effortless installation and flawless straight lines, making it as practical as it is striking.

Key Features :

  • High efficacy: up to 1,300 Lumens/ft
  • Optional emergency battery

Product Options:

Wattage 20W (2ft only) 40W (4ft only) 80W (8ft only)
Input Voltage AC120-347V
CCT Selectable 3000K/3500K/4000K 3000K/4000K/5000K
Dimming 0-10v DALI2

Product Options:

Input Voltage AC120-347V
Wattage 20W
40W
80W
CCT 3000K/4000K/5000K
3000K/3500K/4000K
Dimming DALI Dimming
0-10v
DLC 5.1 Premium
ETL Listed
3 CCT Selectable
80+ CRI
0-10V Dimming
DALI Dimming
Damp Location
EM Option
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power:

  • 20W (2ft only)
  • 40W (4ft only)
  • 80W (8ft only)

Color Temperature (Field Adjustable):

  • 3000K/3500K/4000K
  • 3000K/4000K/5000K
Compliance

ETL Listed:

Product has been tested for safety and performance data, and it complies with the necessary regulations and codes.

DLC®:

DLC(DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org

Construction

Materials:

Aluminum housing, PC end caps, and PC lenses.

Finish:

  • Default color is White.
  • Powder coated surface treatment.

Ambient Temperature:

-13°F(-25°C) to 122°F(50°C)

Electrical

Dimming Driver:

0-10v dimmable driver.
DALI2 dimmable driver.

Input Voltage:

AC120-347V

Optics

Dimming Driver:

  • CRI>80 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

Photometrics

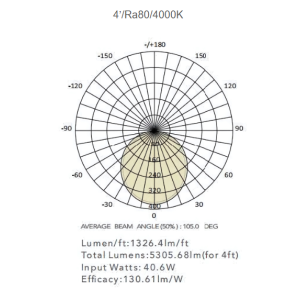

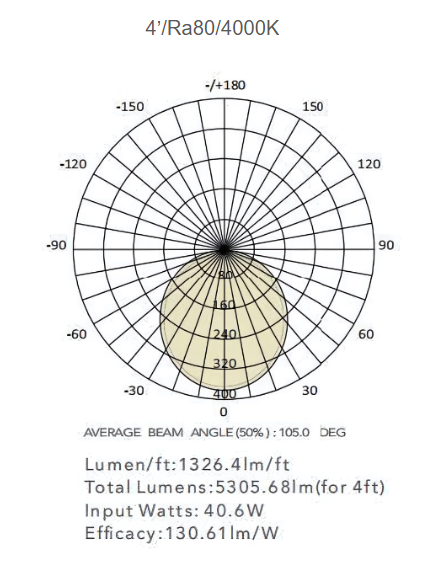

Photometric Data

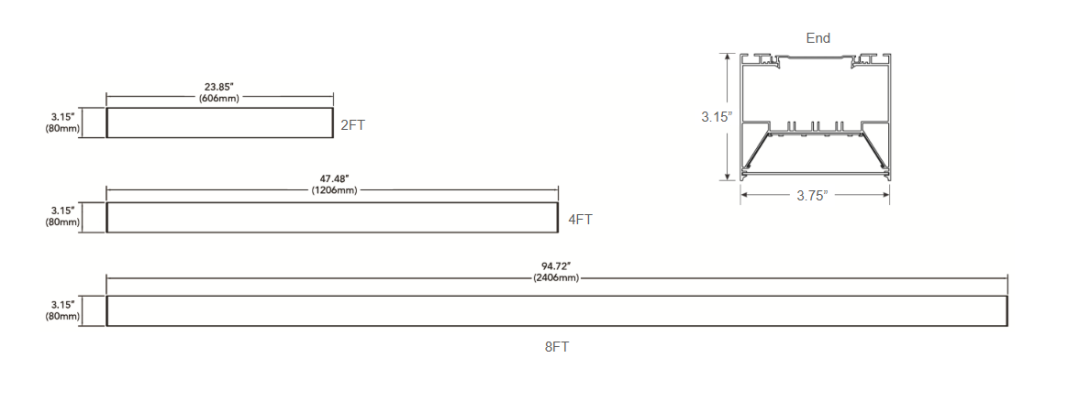

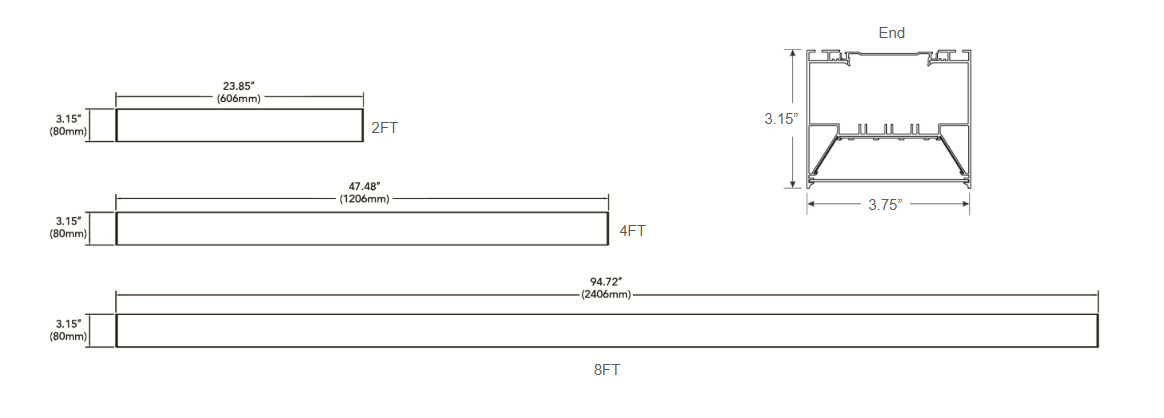

Dimensions

Dimension Image

Performance Data

Model #Nominal CCTCCT SelectableLPWWattsLumensCRI
BLL4A-20W3CCTA (3000K/3500K/4000K) 3CCTB (3000K/4000K/5000K)Yes130lm/W20W2,600lm>80Ra
BLL4A-40W40W5,200lm
BLL4A-80W80W10,400lm
