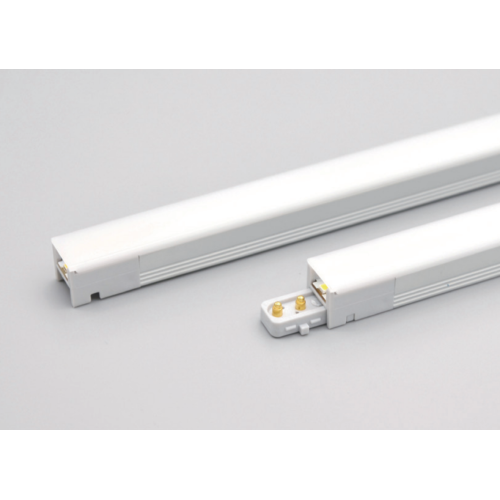

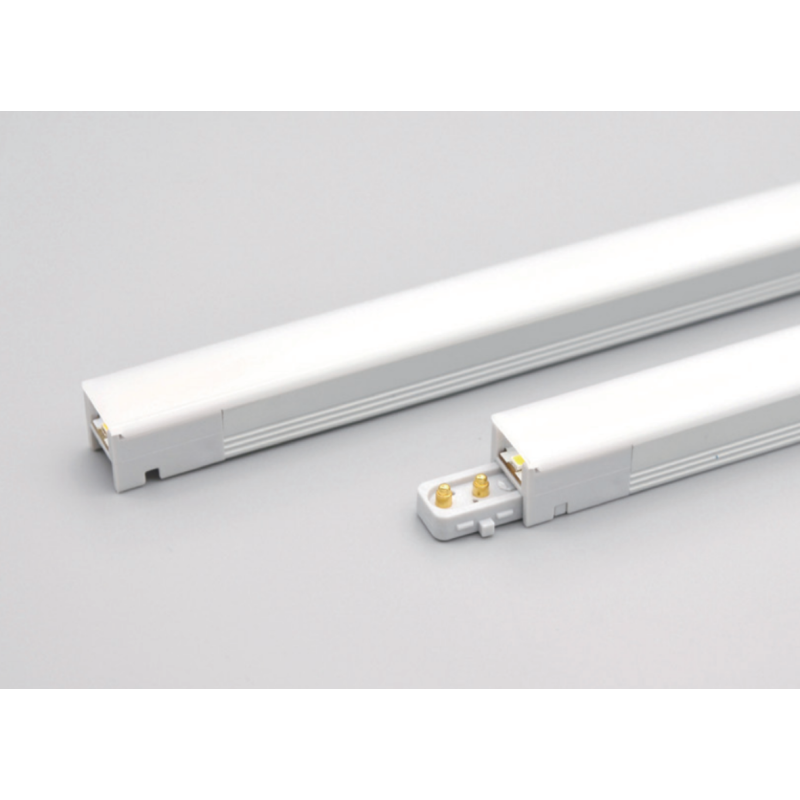

Bluecolt's Linear Profile 5 is the ultra-thin and narrow option for linear interior lighting, with a width of 0.49" to bring a sleek burst or light. The LP5 has multiple mounting options and connector accessories to create a vast range of geometric shapes for any creative interior lighting needs.
Key Features :
- Ultra-thin linear lighting (0.49" width)
- Multiple mounting methods
- Large range of connector accessories to create geometric shapes
Product Options:
| Wattage |
1.5W
2.2W
2.3W
2.4W
2.5W
3W
3.4W
3.6W
4.5W
4.8W
6W
6.5W |
| Input Voltage |
DC24V |
| CCT |
2700K
3000K
3500K
4000K
6000K |
| Dimming |
PWM |
Product Options:
| Input Voltage |
DC24V
|
| Wattage |
6W
1.5W
2.2W
2.3W
2.4W
6.5W
3W
3.4W
3.6W
4.5W
4.8W
2.5W
|
| CCT |
2700K
3000K
3500K
4000K
6000K
|
| Dimming |
PWM Dimming (Standard)
|
Product Configurator
Select fixture options to generate SKU and download specific Design Files
Technical Specifications
Performance
Power:
- 1.5W
- 2.2W
- 2.3W
- 2.4W
- 2.5W
- 3W
- 3.4W
- 3.6W
- 4.5W
- 4.8W
- 6W
- 6.5W
Color Temperature:
- 2700K
- 3000K
- 3500K
- 4000K
- 6000K
Compliance
UL Listed:
cULus listed for wet locations.
Construction
Finish:
Ambient Temperature:
-13°F(-25°C) to 113°F(45°C)
Electrical
Dimming Driver:
PWM dimmable driver.
Input Voltage:
DC24V
Optics
Dimming Driver:
Warranty
5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty
