Linear Wall Sconce 1

Explosion Proof

Bluecolt's Linear Wall Sconce 1 fixture is designed to provide bi-directional, soft illumination in a variety of architectural applications.

Key Features :

  • 4 Step Control Switch
  • Surface Mountable
  • Bi-directional

Product Options:

Wattage 20W 30W 40W 50W
Input Voltage 100-277V 120-347V 220-240V
CCT 3K = 3000K 4K = 4000K 5K = 5000K 6K = 6500K
Dimming TRIAC 0-10v 1-10V DALI

Product Options:

Input Voltage AC100-277V
AC120-347V
AC220-240V
Dimming DALI Dimming
0-10v
1-10v
TRIAC
DLC 5.1 Premium
CE
ETL Listed
80+ CRI
1-10V Dimming
0-10V Dimming
TRIAC Dimming
DALI Dimming
EM Option
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power:

  • 20W
  • 30W
  • 40W
  • 50W

Color Temperature:

  • 3000K
  • 4000K
  • 5000K
  • 6500K
Compliance

ETL Listed:

Product has been tested and meets safety and performance standards set by Intertek’s Electrical Testing Labs.

DLC®:

DLC(DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org

CE:

Product meets the essential requirements of European Union.

Construction

Materials:

Aluminum housing and PC cover.

Finish:

  • Default color is White with Silver and Black options available.

Ambient Temperature:

-20°F (-30°C) to +122°F (50°C)

Electrical

Dimming Driver:

0-10v dimmable driver.
1-10v dimmable driver.
TRIAC dimmable driver.
DALI dimmable driver.

Input Voltage:

AC100-277V, AV120-347V, AC220-240V

Optics

Dimming Driver:

  • CRI>83 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

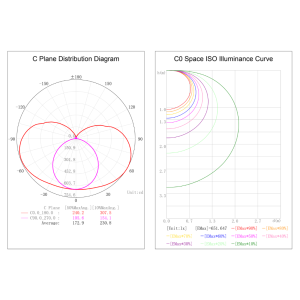

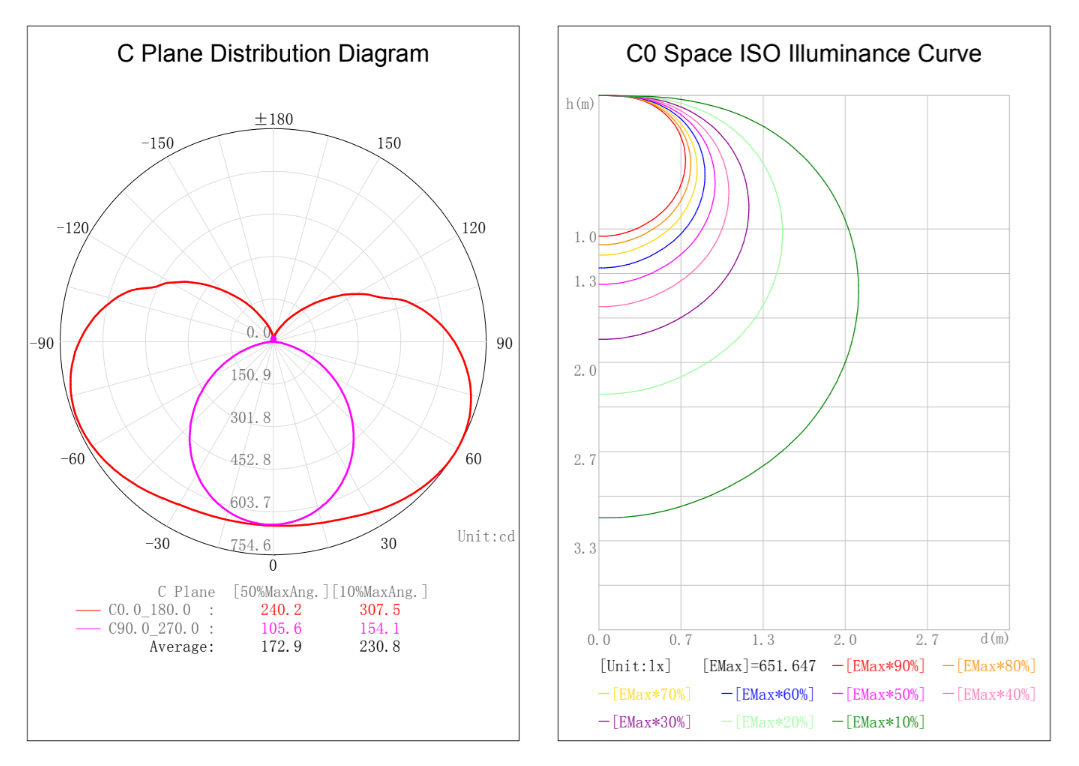

Photometrics
Photometric Data

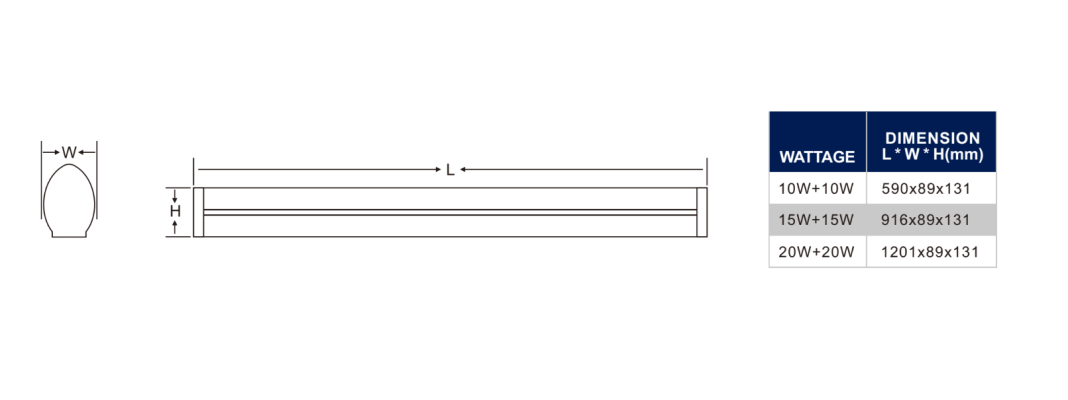

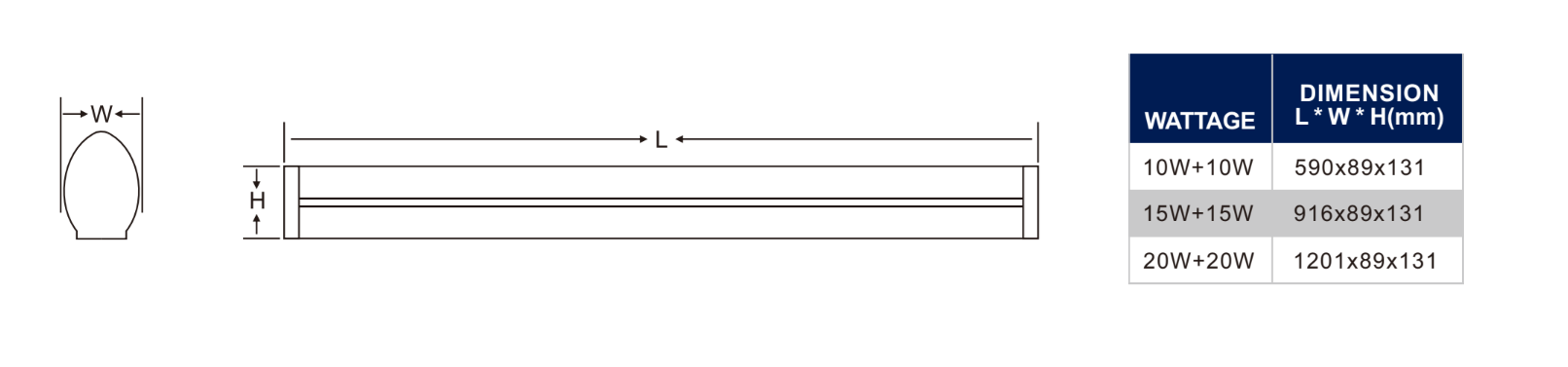

Dimensions

Dimension Image

Performance Data

Model #Nominal CCTLPWWattsLumensCRI
BLLWS1-20W3000K 4000K 5000K 6500K115lm/W20W2,300lm>83Ra
140lm/W20W2,800lm
BLLWS1-30W115lm/W30W3,450lm
140lm/W30W4,200lm
BLLWS1-40W115lm/W40W4,600lm
140lm/W40W5,600lm
BLLWS1-50W115lm/W50W5,750lm
140lm/W50W7,000lm
