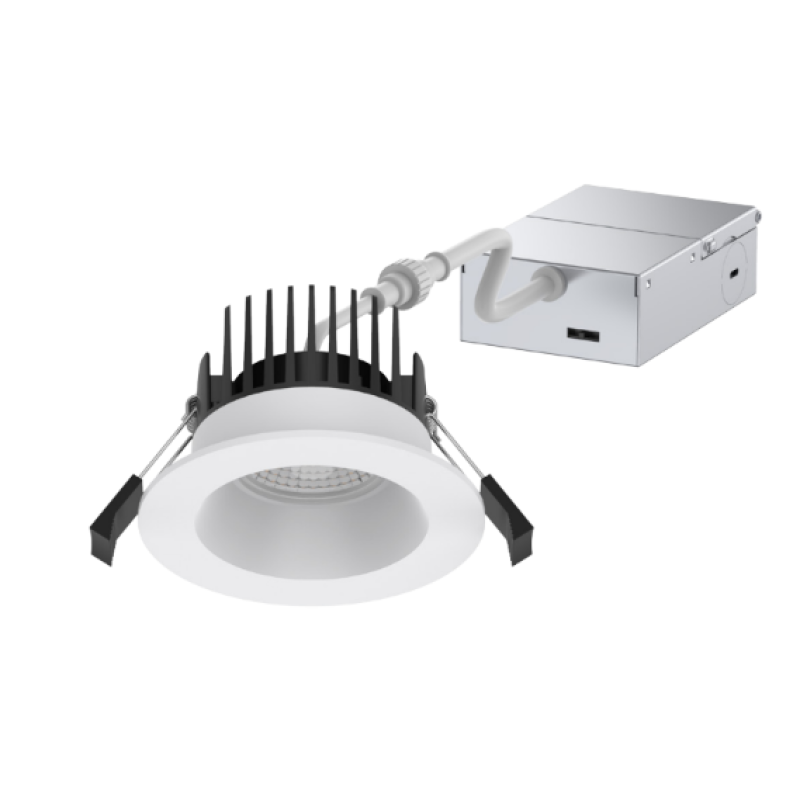

Nova Downlight 6

Explosion Proof

Bluecolt's Nova Downlight 6 is minimalist chic for interior spot lighting with square and round modular trims and baffle and bevel options for all three fixture sizes.

Key Features :

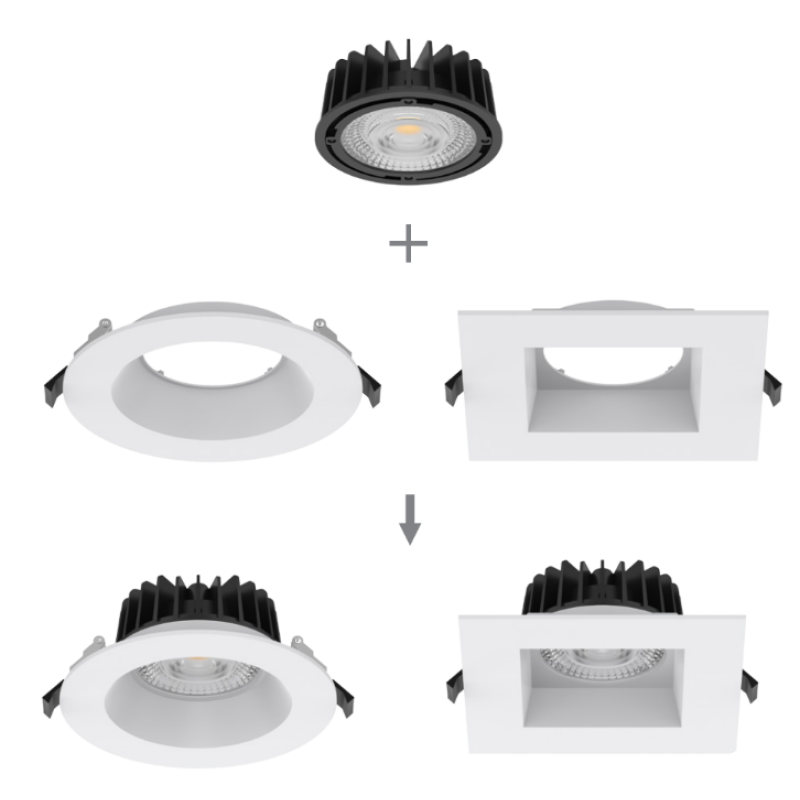

  • Square and Round trims
  • Baffle and Bevel options
  • High color rendering with CRI 90
  • 5 CCT Selectable

Product Options:

Wattage 8W 15W 24W
Input Voltage AC120V
CCT 2700K/3000K/3500K/4000K/5000K
Dimming TRIAC

Product Options:

Input Voltage AC120-277V
Wattage 15W
8W
24W
CCT 2700K/3000K/3500K/4000K/5000K
Dimming TRIAC
ETL Listed
5 CCT Selectable
90+ CRI
TRIAC Dimming
Damp Location
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power:

  • 8W
  • 15W
  • 24W

Color Temperature (Field Adjustable):

  • 2700K/3000K/3500K/4000K/5000K
Compliance

ETL Listed:

Product has been tested for safety and performance data, and it complies with the necessary regulations and codes.

Construction

Materials:

Made of ADC12 aluminum alloy and PMMA lens.

Finish:

  • Default color is White.

Ambient Temperature:

-4°F(-20°C) to 104°F(40°C)

Electrical

Dimming Driver:

TRIAC dimmable driver.

Input Voltage:

AC120V

Optics

Dimming Driver:

  • CRI>90 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

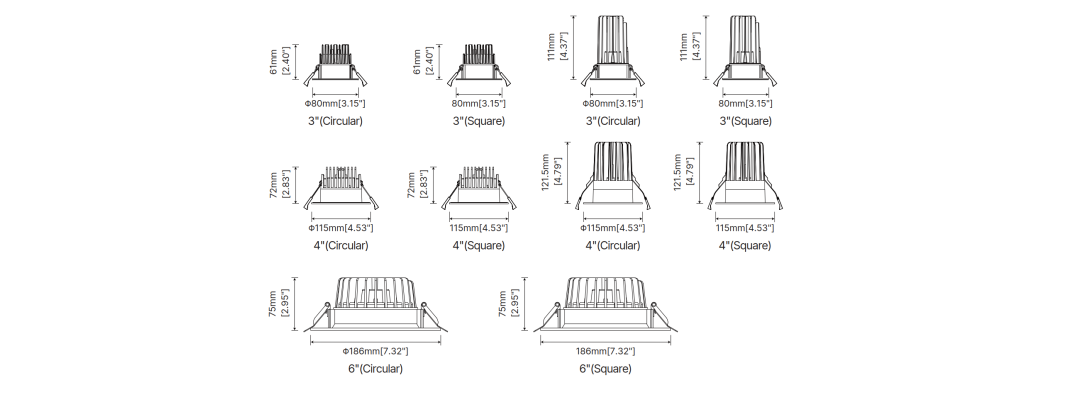

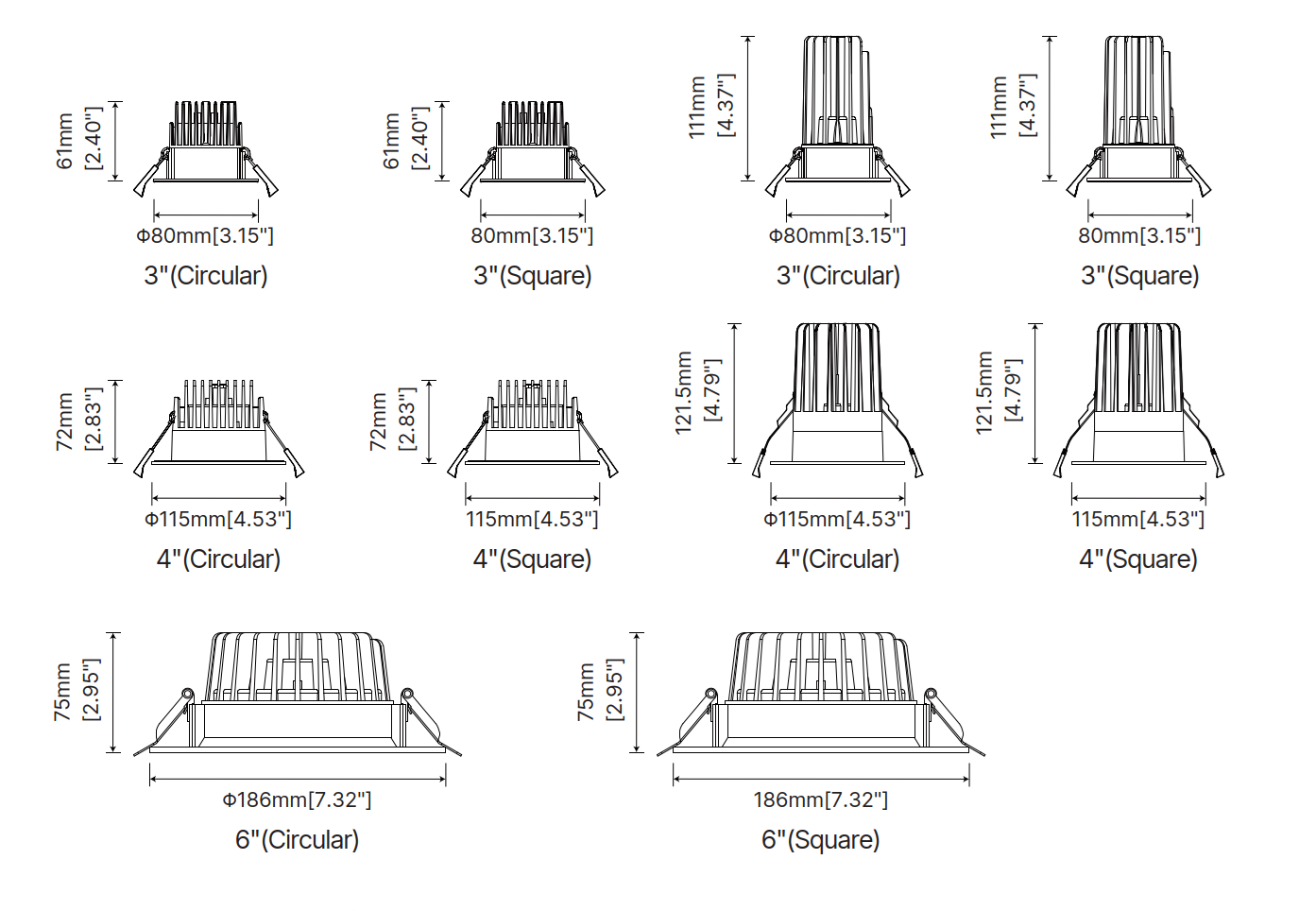

Dimensions

Dimension Image

Performance Data

Model #Nominal CCTCCT SelectableLPWWattsLumensCRI
BLNDL6-8W5CCT (2700K/3000K/3500K/4000K/5000K)Yes80lm/W8W640lm>80Ra
BLNDL6-15W80lm/W15W1,200lm
BLNDL6-24W100lm/W24W2,400lm
