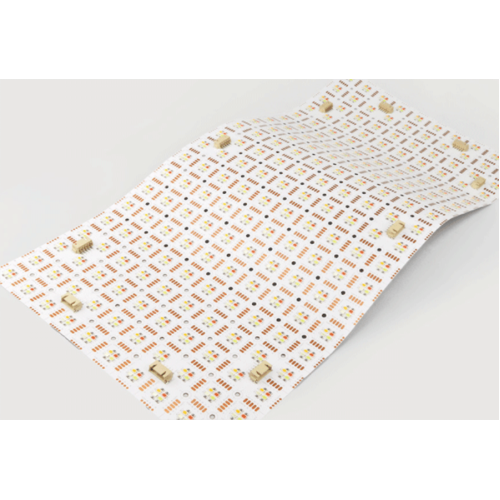

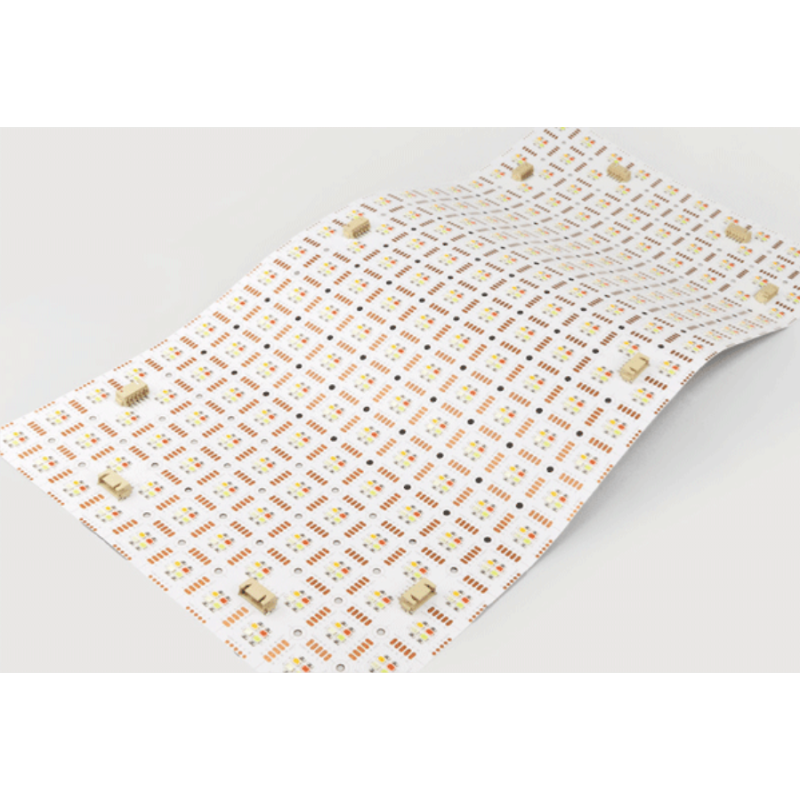

Bluecolt's LED Sheet provides a flexible and modular option for lighting over large areas. The sheet can be cut horizontally or vertically along cutting lines and with multiple color options and even a waterproof version.

Key Features :

  • Multi-directional cuttable
  • 4 CCT Selectable
  • IP65 version
  • High color rendering index CRI 90

Product Options:

Wattage 32W
Input Voltage DC24V
CCT Selectable 2700K/3000K/4000K/6500K

Product Options:

Input Voltage DC24V
Wattage 32W
CCT 2700K/3000K/4000K/6500K
UL/CUL
4 CCT Selectable
90+ CRI
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power:

  • 32W/Sheet

Color Temperature (Field Adjustable):

  • 2700K/3000K/4000K/6500K
Compliance

UL Listed:

cULus listed for wet locations.

Construction

Materials:

Made with silicone casing.

Finish:

  • Default color is White.

Ambient Temperature:

-4°F(-20°C) to 104°F(40°C)

Electrical

Input Voltage:

DC24V

Optics

Dimming Driver:

  • CRI>90 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

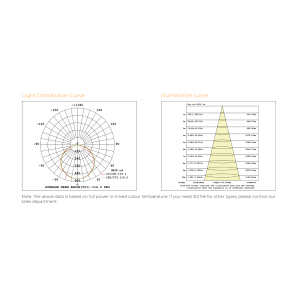

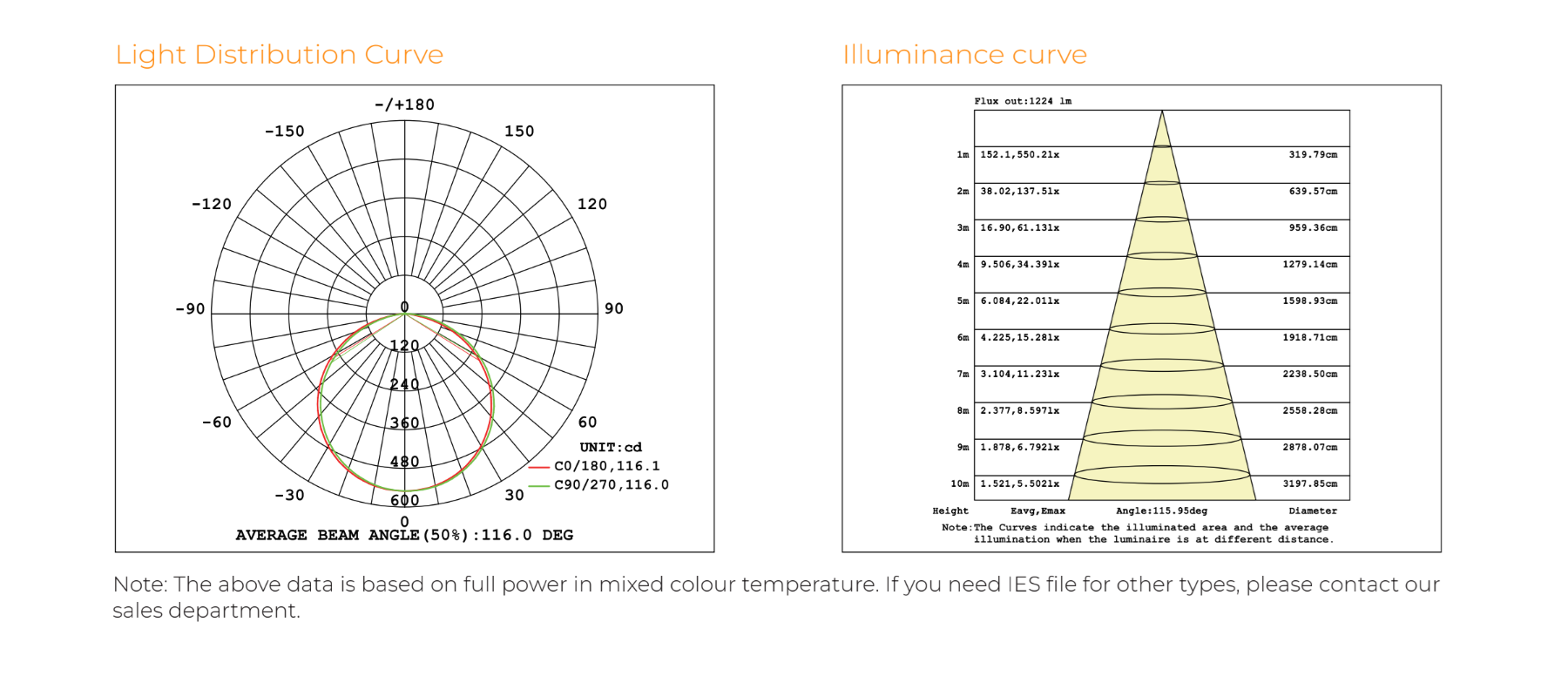

Photometrics
Photometric Data

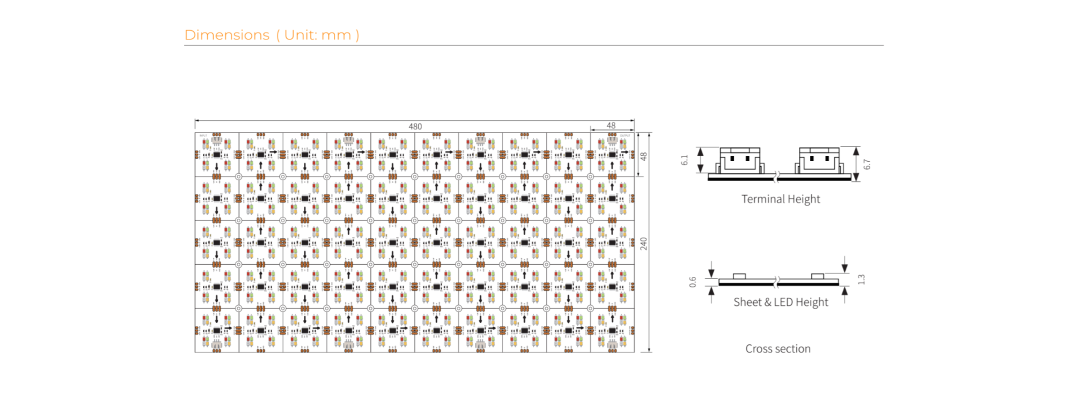

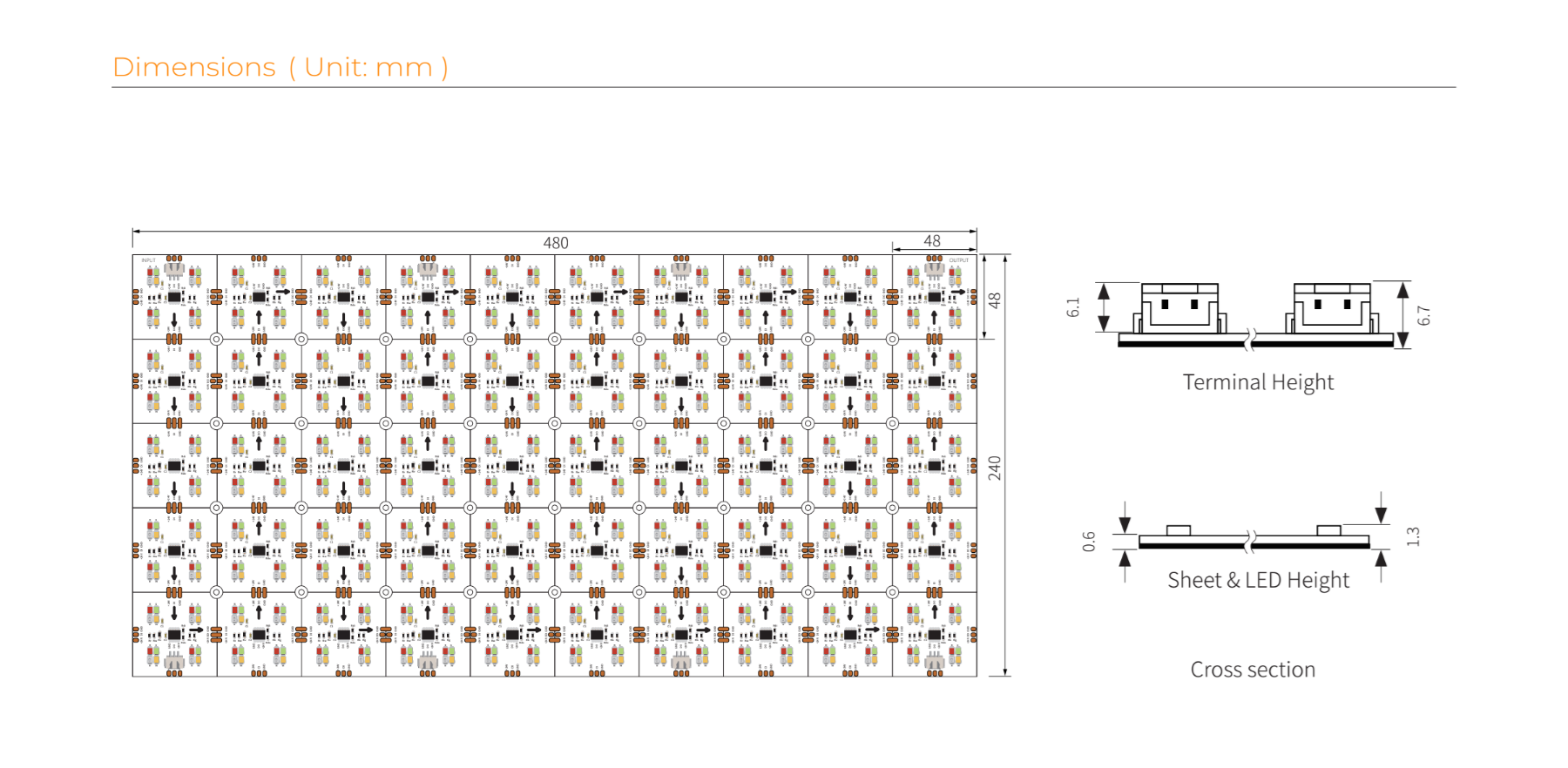

Dimensions

Dimension Image

Performance Data

Model #Nominal CCTCCT SelectableLPWWattsLumensCRI
BLSH1-32W2700K 3000K 4000K 6500KYes80lm/W32W2,560lm>90Ra
