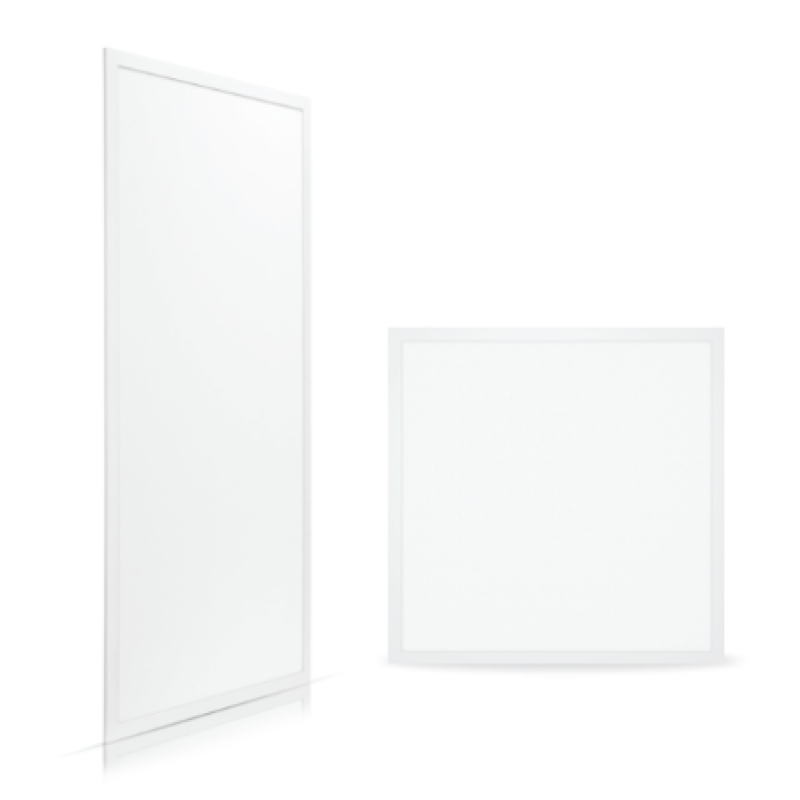

Our Skypanel B is a streamlined, modern lighting solution designed for spaces with low ceilings. With its slim profile and integrated driver, installation is a breeze. The energy-efficient LED and frosted lens deliver uniform, soft lighting, enhancing any room with both style and functionality.
Key Features :
- Flicker-Free
- Up to 347V input
- CCT & Wattage Selectable
Product Options:
| Wattage Selectable |
35W/30W/25W
50W/40W/30W |
| Input Voltage |
120-277V, 120-347V |
| CCT Selectable |
3500K/4000K/5000K |
| Dimming |
0-10v |
Product Options:
| Input Voltage |
AC120-277V
AC120-347V
|
| Wattage |
50W/40W/30W
35W/30W/25W
|
| CCT |
3500K/4000K/5000K
|
Product Configurator
Select fixture options to generate SKU and download specific Design Files
Technical Specifications
Performance
Power (Field Adjustable):
Color Temperature (Field Adjustable):
Compliance
UL Listed:
cULus listed for wet locations.
FCC:
Fixture has been reviewed by the Federal Communications Commission (FCC) and complies with its regulations regarding electromagnetic interference (EMI).
CE:
Product meets the essential requirements of European Union.
ROHS:
Complies with the EU Restriction Of Hazardous Substances. https://environment.ec.europa.eu/
Construction
Materials:
Aluminum and PC
Finish:
Ambient Temperature:
-4°F(-20°C) to 122°F(50°C)
Electrical
Dimming Driver:
0-10v dimmable driver.
Input Voltage:
AC120-277V, AV120-347V

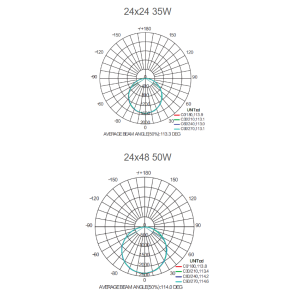

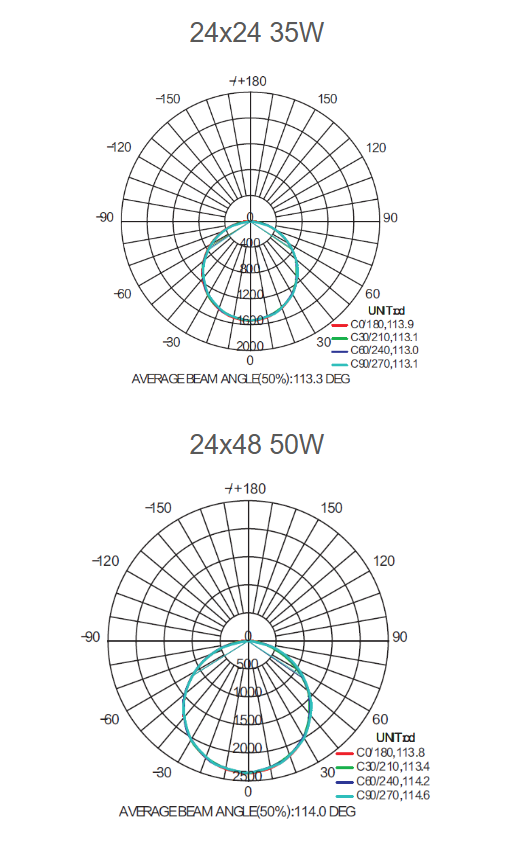

Optics
Dimming Driver:
Warranty
5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty
