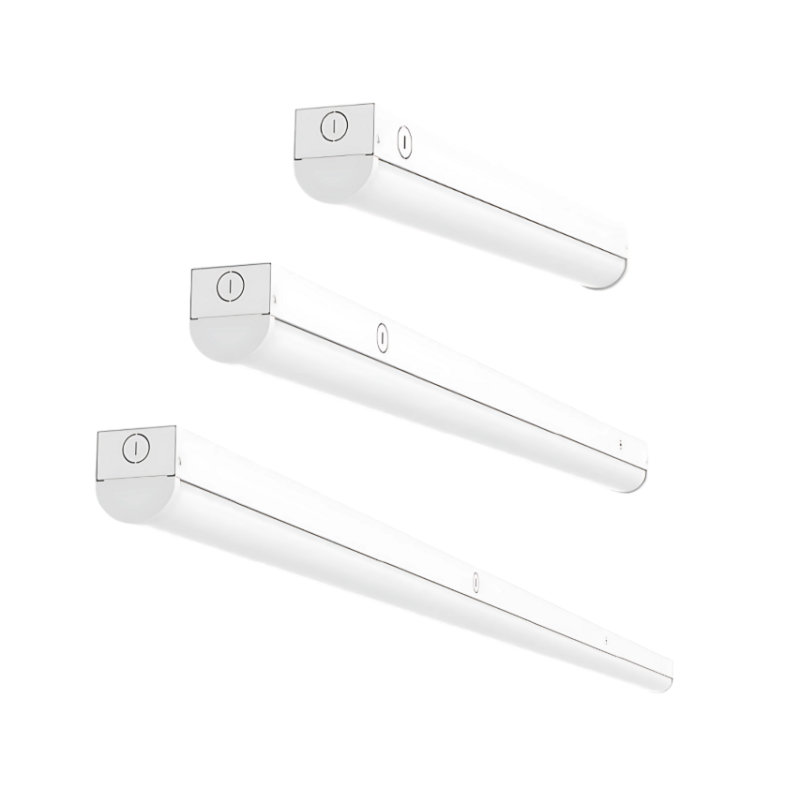

The SL3 is a high-performance, utility-focused strip light designed for effortless installation and broad compatibility. With multiple lengths (2ft, 4ft, 8ft), adjustable wattage, and color temperatures to fit any space: workshops, storage areas, retail, or industrial settings. Installation is a breeze with tool-free wiring and spring clips, while DLC compliance and optional sensors or emergency backup ensure energy efficiency and reliability.

Key Features :

  • High efficacy: up to 150 Lumens/Watt.
  • Tool-free wiring access.
  • Multiple sizes & wattages.

Product Options:

Wattage Selectable 25W/20W/15W 50W/40W/30W 80W/70W/60W
Input Voltage AC120-277V, AV120-347V,
CCT Selectable 3500K/4000K/5000K
Dimming 0-10v

Product Options:

Input Voltage AC120-277V
AC120-347V
Wattage 25W/20W/15W
50W/40W/30W
80W/70W/60W
CCT 3500K/4000K/5000K
UL/CUL
DLC 5.1 Premium
3 Watt Selectable
3 CCT Selectable
80+ CRI
0-10V Dimming
Damp Location
Sensor Photocell
Sensor MMS
EM Option
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power (Field Adjustable):

  • 25W/20W/15W
  • 50W/40W/30W
  • 80W/70W/60W

Color Temperature (Field Adjustable):

  • 3500K/4000K/5000K
Compliance

UL Listed:

cULus listed for wet locations.

DLC®:

DLC(DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org

Construction

Materials:

Made with cold rolled sheet metal housing.

Finish:

  • Default color is White.

Ambient Temperature:

-13° F (-25° C) to 122° F (50° C)

Electrical

Dimming Driver:

0-10v dimmable driver.

Input Voltage:

AC120-277V

Optics

Dimming Driver:

  • CRI>80 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

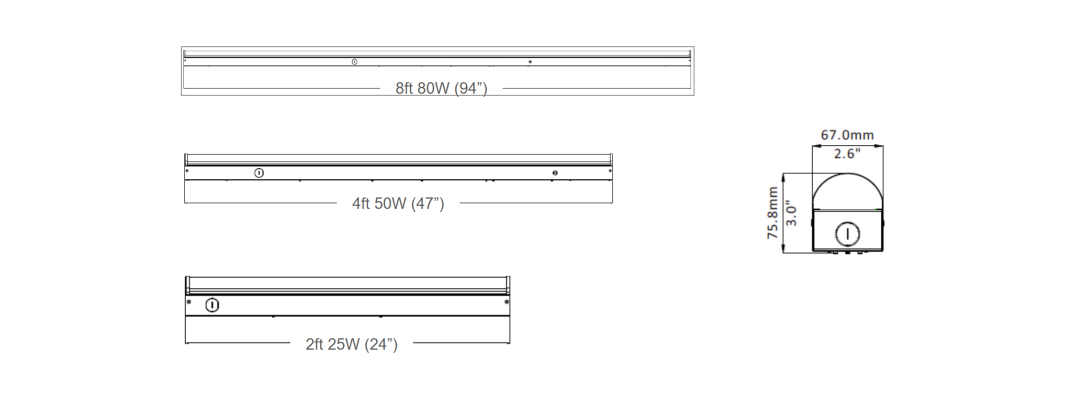

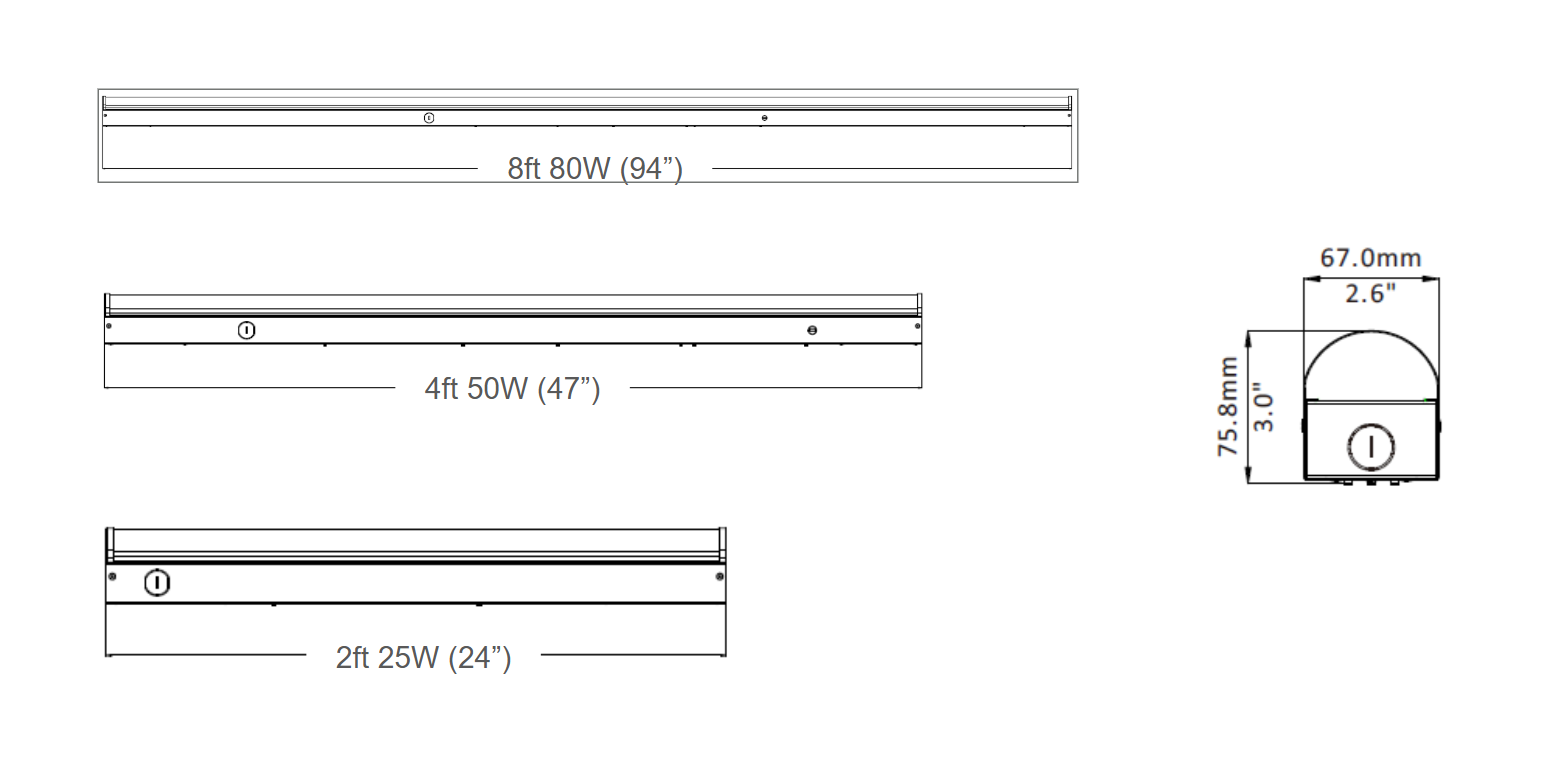

Dimensions

Dimension Image

Performance Data

Model #Lumen LevelWattage SelectableNominal CCTCCT SelectableLPWWattsLumensCRI
BLSL3-25W1Yes3500KYes142lm/W15W2,123lm>80Ra
14000K153lm/W15W2,289lm
15000K145lm/W15W2,180lm
23500K138lm/W20W2,750lm
24000K148lm/W20W2,965lm
25000K141lm/W20W2,824lm
33500K131lm/W25W3,283lm
34000K142lm/W25W3,539lm
35000K135lm/W25W3,371lm
BLSL3-50W13500K140lm/W30W4,187lm
14000K150lm/W30W4,486lm
15000K141lm/W30W4,243lm
23500K132lm/W40W5,268lm
24000K141lm/W40W5,645lm
25000K133lm/W40W5,339lm
33500K126lm/W50W6,284lm
34000K135lm/W50W6,734lm
35000K127lm/W50W6,368lm
BLSL3-80W13500K139lm/W60W8,358lm
14000K149lm/W60W8,961lm
15000K142lm/W60W8,498lm
23500K134lm/W70W9,358lm
24000K143lm/W70W10,033lm
25000K136lm/W70W9,514lm
33500K133lm/W80W10,613lm
34000K142lm/W80W11,378lm
35000K135lm/W80W10,790lm
