Bluecolt’s SL4 LED half-moon overhead LED fixture can be used to illuminate many types of spaces in schools, offices, warehouses, and retail stores. The SL4 is a sleek and efficient fixture choice with multiple options for the desired aesthetic. It is designed with an aluminum body and polycarbonate lens for effective thermal regulation and longevity. This fixture is easy to install, maintain, and link together for longer fixture runs. It offers both 0-10v and TRIAC dimming options and 3 body colors.

Key Features :

  • Up to 19,000 Lumen output
  • Linkable for long fixture runs
  • Upward and downward lighting options

Product Options:

Wattage 20W 40W 50W 60W 80W 100W 120W 160W
Input Voltage AC100-277V, AC120-347V, AC220-240V
CCT 3000K 4000K 5000K 6500K
Dimming 0-10v 1-10v DALI TRIAC

Product Options:

Input Voltage AC100-277V
AC120-347V
AC220-240V
Wattage 100W
20W
40W
50W
60W
80W
120W
160W
CCT 3000K
4000K
5000K
6500K
Dimming DALI Dimming
0-10v
1-10v
TRIAC
DLC 5.1 Premium
CE
ETL Listed
80+ CRI
1-10V Dimming
0-10V Dimming
TRIAC Dimming
DALI Dimming
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power:

  • 20W
  • 40W
  • 50W
  • 60W
  • 80W
  • 100W
  • 120W
  • 160W

Color Temperature:

  • 3000K
  • 4000K
  • 5000K
  • 6500K
Compliance

ETL Listed:

Product has been tested for safety and performance data, and it complies with the necessary regulations and codes.

DLC®:

DLC(DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org

CE:

Product meets the essential requirements of European Union.

Construction

Materials:

Made of aluminum housing and polycarbonate lenses.

Finish:

  • Default colors are White, Black, and Silver.

Ambient Temperature:

-4°F(-20°C) to 104°F(40°C)

Electrical

Dimming Driver:

0-10v dimmable driver.
1-10v dimmable driver.
DALI dimmable driver.
TRIAC dimmable driver.

Input Voltage:

AC100-277V, AC120-347V, AC220-240V

Optics

Dimming Driver:

  • CRI>83 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

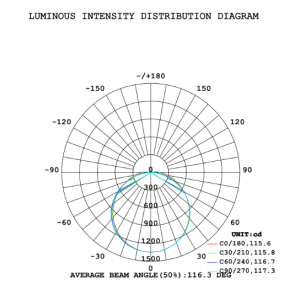

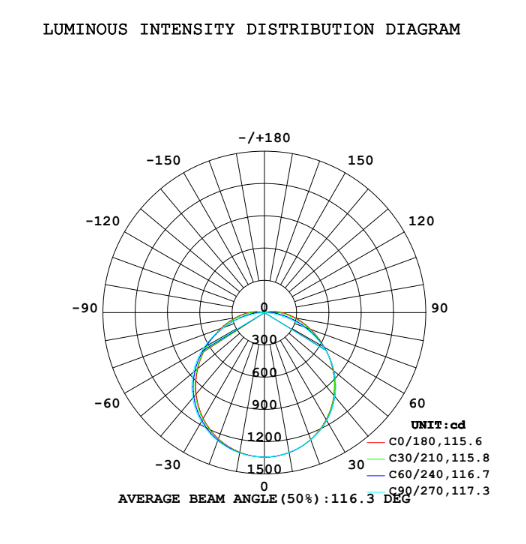

Photometrics
Photometric Data

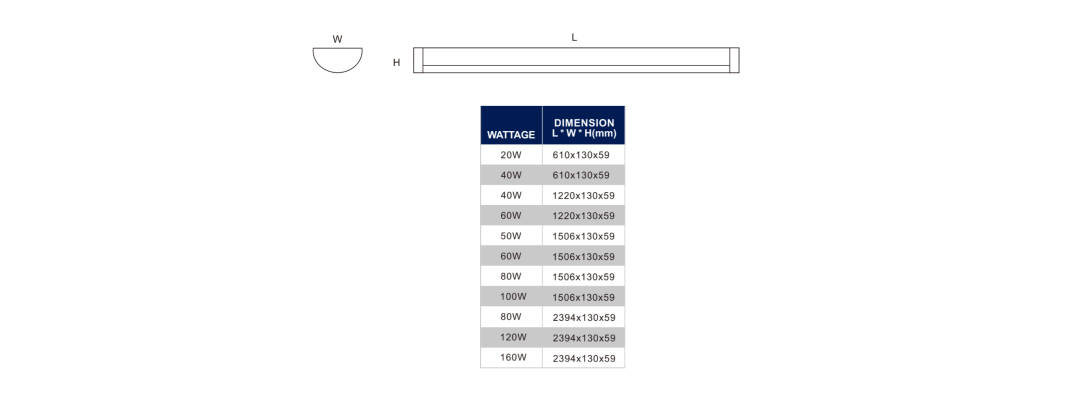

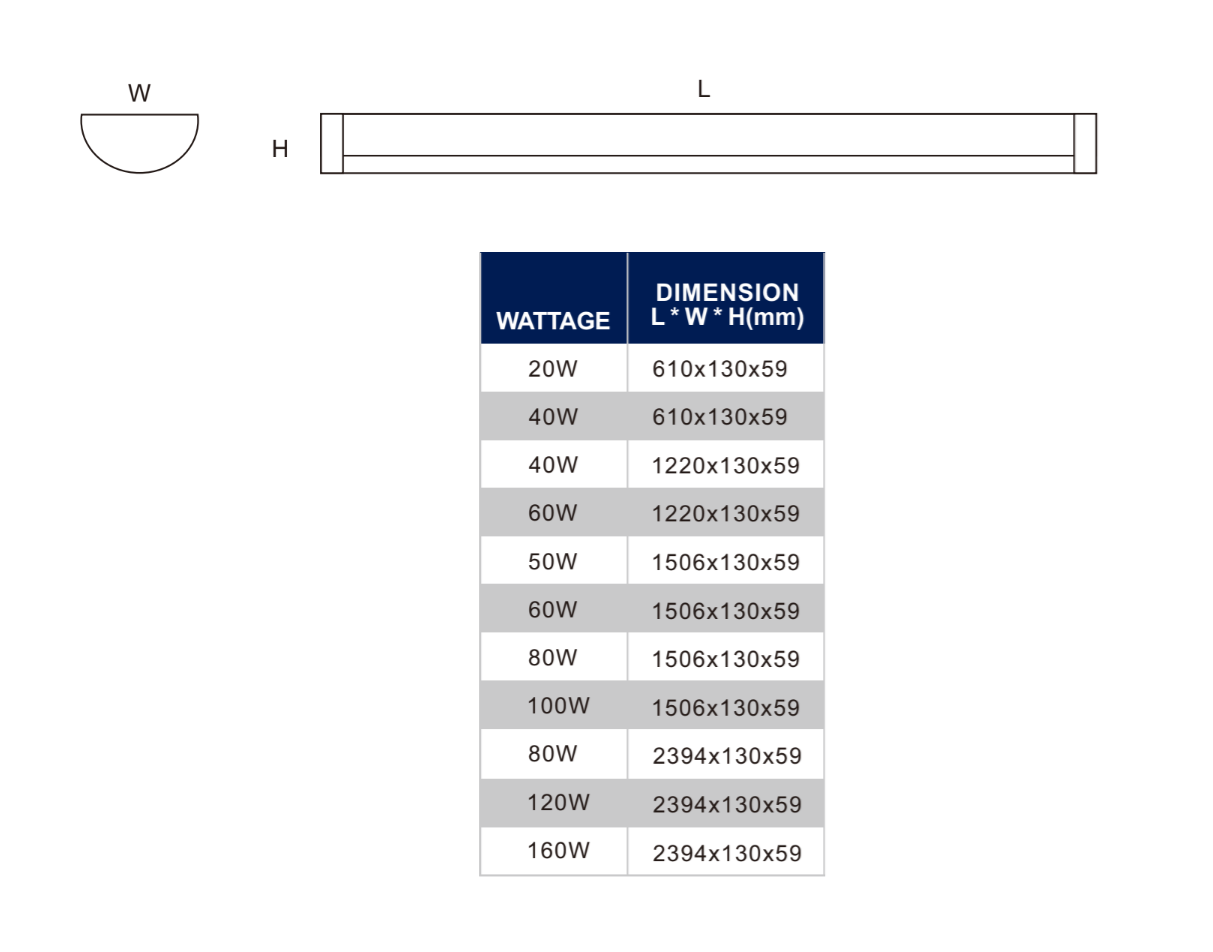

Dimensions

Dimension Image

Performance Data

Model #Nominal CCTLPWWattsLumensCRI
BLSL4-20W3000K 4000K 5000K 6500K115lm/W20W2,300lm>83Ra
BLSL4-20W140lm/W20W2,800lm
BLSL4-40W115lm/W40W4,600lm
BLSL4-40W140lm/W40W5,600lm
BLSL4-50W115lm/W50W5,750lm
BLSL4-50W140lm/W50W7,000lm
BLSL4-60W115lm/W60W6,900lm
BLSL4-60W140lm/W60W8,400lm
BLSL4-80W115lm/W80W9,200lm
BLSL4-80W140lm/W80W11,200lm
BLSL4-100W115lm/W100W11,500lm
BLSL4-100W140lm/W100W14,000lm
BLSL4-120W115lm/W120W13,800lm
BLSL4-120W140lm/W120W16,800lm
BLSL4-160W115lm/W160W18,400lm
BLSL4-160W140lm/W160W22,400lm
