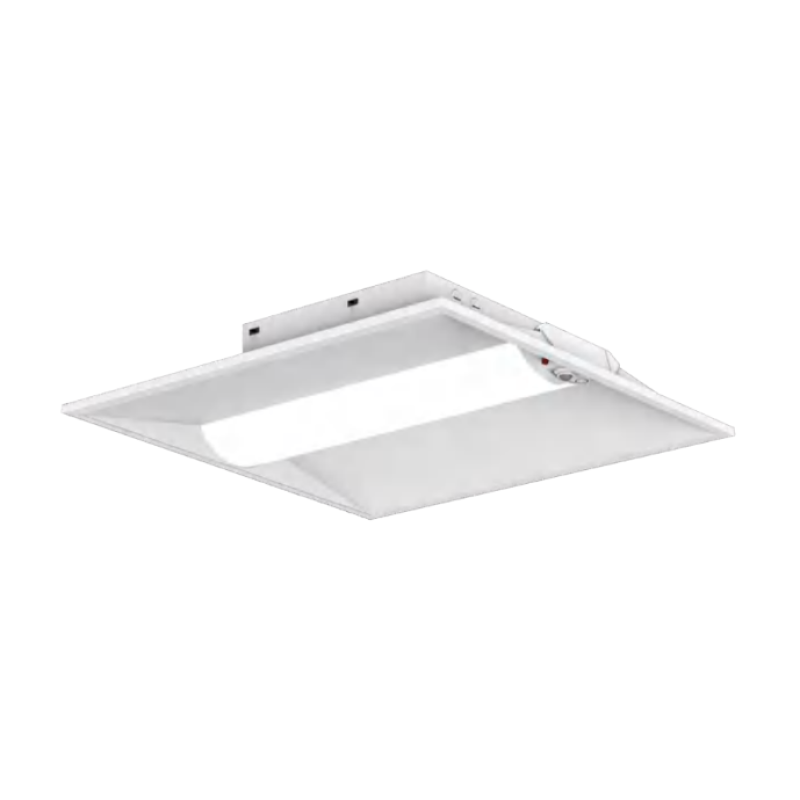

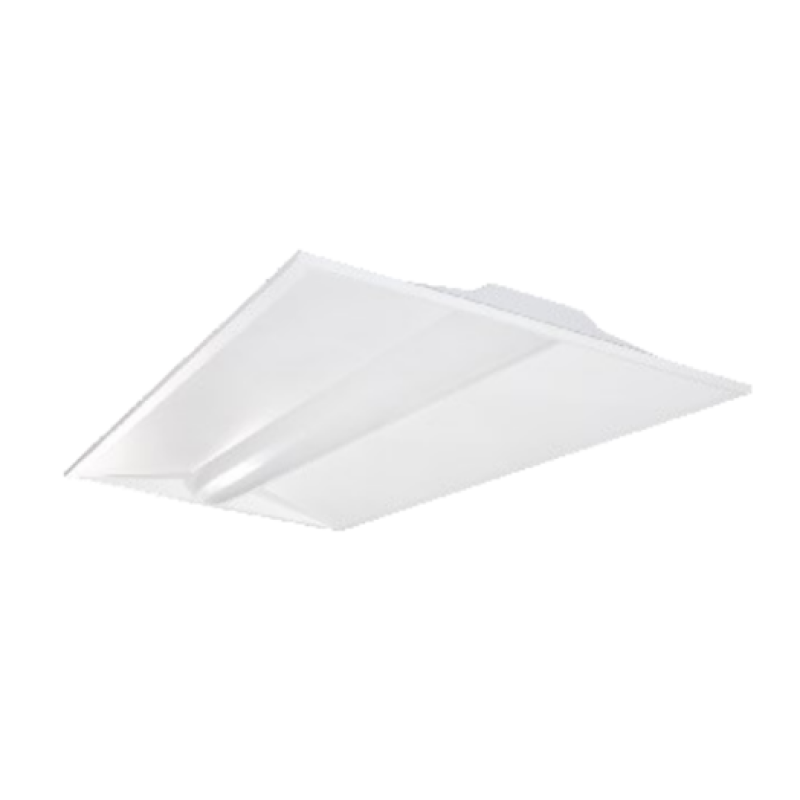

Bluecolt’s T4 LED Troffer is an energy-efficient and durable fixture designed for indoor applications. Its soft and uniform distribution is ideal for office environments. Features include:

Key Features :

  • Wattage selectable with CCT tunable option.
  • Sleek and ultra-thin design.

Product Options:

Wattage Selectable 25W/20W/15W 36W/30W/24W 36W/24W/16W 45W/36W/24W
Input Voltage 120-277V
CCT Selectable 3500K/4000K/5000K
Dimming 0-10v

Product Options:

Wattage 25W/20W/15W
36W/30W/24W
36W/24W/16W
45W/36W/24W
CCT 3500K/4000K/5000K
DLC 5.1 Premium
ETL Listed
3 Watt Selectable
3 CCT Selectable
80+ CRI
0-10V Dimming
EM Option
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power (Field Adjustable):

  • 25W/20W/15W
  • 36W/30W/24W
  • 36W/24W/16W
  • 45W/36W/24W

Color Temperature (Field Adjustable):

  • 3500K/4000K/5000K
Compliance

ETL Listed:

Product has been tested and meets safety standards recognized in the U.S. and Canada.

DLC®:

DLC(DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org

Construction

Materials:

High-grade cold-rolled steel.

Finish:

  • Default color is White.
  • Powder coated surface treatment.

Ambient Temperature:

-13°F(-25°C) to 122°F(50°C)

Electrical

Dimming Driver:

1-10v dimmable driver.

Input Voltage:

AC100-277V, AV120-347V, AC200-480V

Optics

Dimming Driver:

  • CRI>70 Standard.
  • Optional CRI>80. PC Lens.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

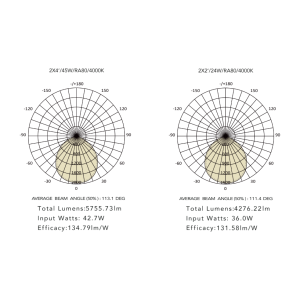

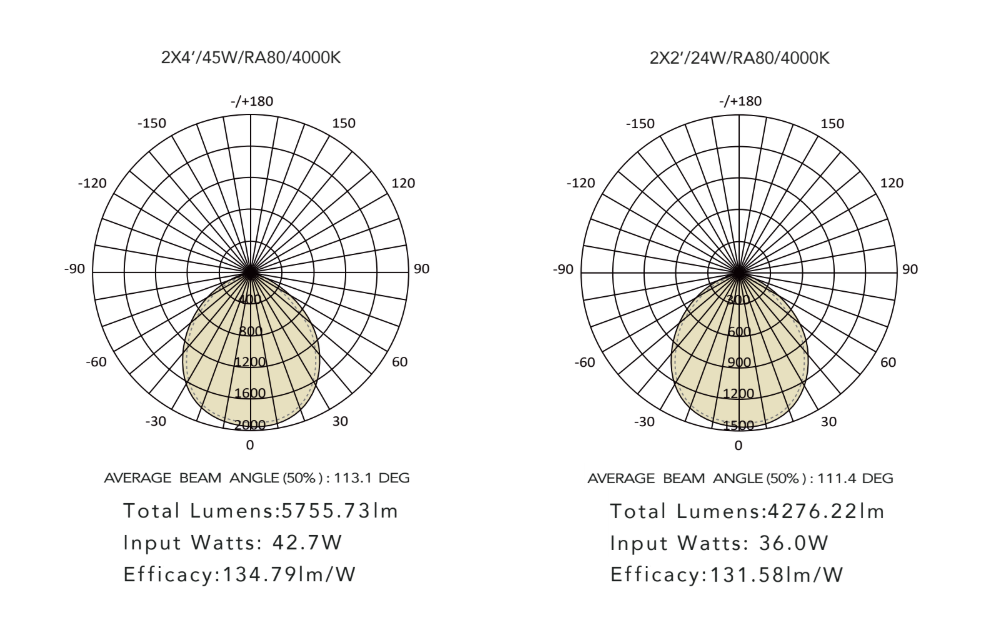

Photometrics
Photometric Data

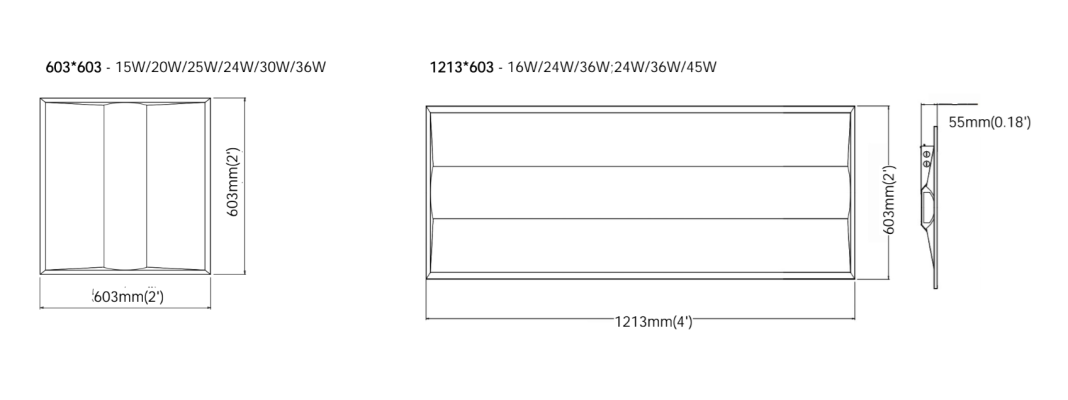

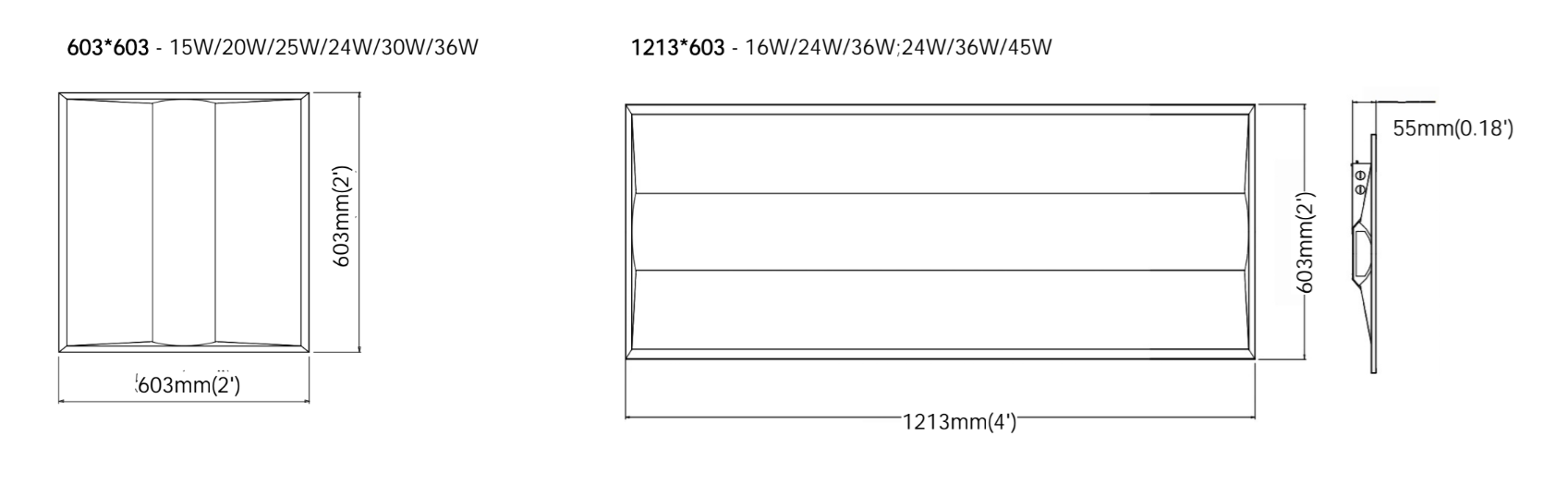

Dimensions

Dimension Image

Performance Data

Model #Lumen LevelWattage SelectableNominal CCTCCT SelectableLPWWattsLumensCRI
BLT4-25W1Yes3CCT (3500K/4000K/5000K)Yes130lm/W15W1,950lm>80Ra
220W2,600lm
325W3,250lm
BLT4-36W124W3,120lm
230W3,900lm
336W4,680lm
BLT4-36W116W2,080lm
224W3,120lm
336W4,680lm
BLT4-45W124W3,120lm
236W4,680lm
345W5,850lm
