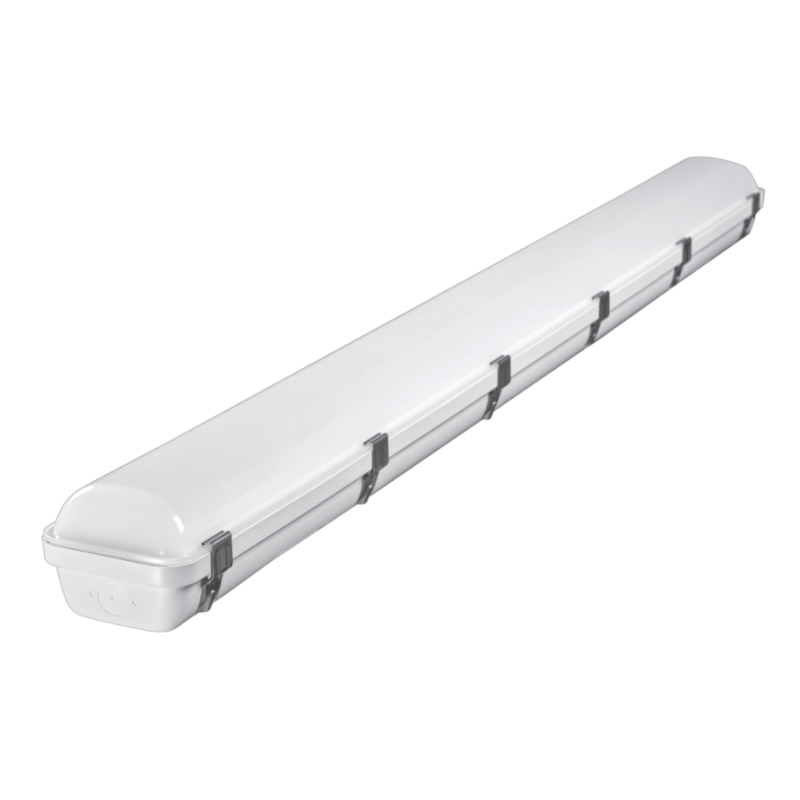

Designed for demanding environments, the V10 Series combines ultra-high efficiency with a rugged NEMA 4X-rated, vapor-tight construction, ensuring reliable performance in moisture-heavy, dusty, or corrosive conditions. Its durable polycarbonate housing and stainless steel clips provide long-lasting protection with tool-free maintenance. Engineered for efficiency, durability, and effortless installation, the V10 Series delivers superior illumination where standard fixtures fail.
Key Features :
- High efficacy: up to 166 Lumens/Watt.
- Power & CCT adjustable.
- NEMA4X/UL cUL Wet Location listed
Product Options:
| Wattage Selectable |
50W: 25W-35W-50W
90W: 60W-75W-90W |
| Input Voltage |
120-277VAC |
| CCT Selectable |
3500K/4000K/5000K |
| Dimming |
0-10v |
| IP Rating |
IP65 |
| IK Rating |
IK08 |
Product Options:
| Wattage |
90W (60W/75W/90W Selectable)
50W (25W/35W/50W Selectable)
|
| CCT |
3500K/4000K/5000K
|
Product Configurator
Select fixture options to generate SKU and download specific Design Files
Technical Specifications
Performance
Power (Field Adjustable):
- 25W/ 35W/ 50W
- 60W/ 75W/ 90W
Color Temperature (Field Adjustable):
Compliance
UL Listed:
cULus listed for wet locations.
DLC®:
DLC(DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org
NEMA4X:
Complies with the requirements for the National Electrical Manufacturers Association's 4X rating for waterproof electrical enclosures.
Construction
Materials:
Stainless steel and PC
Finish:
Ambient Temperature:
-22°F(-30°C) to 122°F(50°C)
Electrical
Dimming Driver:
0-10v dimmable driver.
Input Voltage:
AC120-277V
Optics
Dimming Driver:
Warranty
5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty
