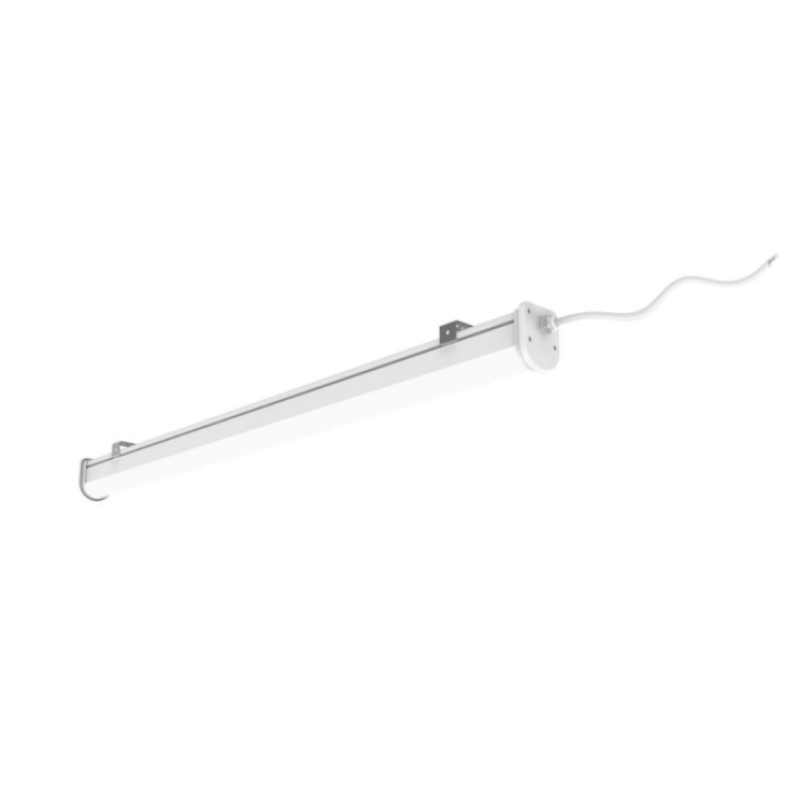

Vapor-Sealed LED

Explosion Proof

Bluecolt's V4 is designed for reliability and energy-efficiency for a variety of indoor and outdoor applications that require high-output standalone or linkable fixtures.

Key Features :

  • High efficacy: up to 135 Lumens/Watt
  • Standalone or Linkable versions
  • Multiple Sizes and Wattages

Product Options:

Wattage 20W 30W 40W 60W 75W 80W 110W
Input Voltage 100-277V AC
Dimming 0-10V

Product Options:

Input Voltage AC100-277V
Wattage 20W
40W
60W
80W
30W
75W
110W
CCT 3000K
4000K
5000K
6000K
Dimming 1-10v
DLC 5.1 Premium
ETL Listed
80+ CRI
1-10V Dimming
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power:

  • 20W
  • 30W
  • 40W
  • 60W
  • 75W
  • 80W
  • 110W

Color Temperature:

  • 3000K
  • 4000K
  • 5000K
  • 6000K
Compliance

ETL Listed:

Product has been tested and meets safety standards recognized in the U.S. and Canada.

DLC®:

DLC(DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org

Construction

Materials:

Aluminum housing and PC cover

Finish:

  • Default color is White

Ambient Temperature:

-40°F(-40°C) to 113°F(45°C)

Electrical

Dimming Driver:

1-10v dimmable driver.

Input Voltage:

AC100-277V, 50/60Hz

Optics

Dimming Driver:

  • CRI>80 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

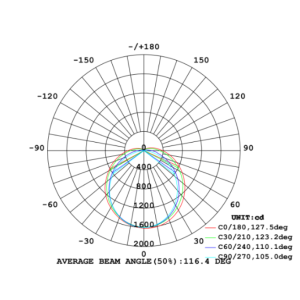

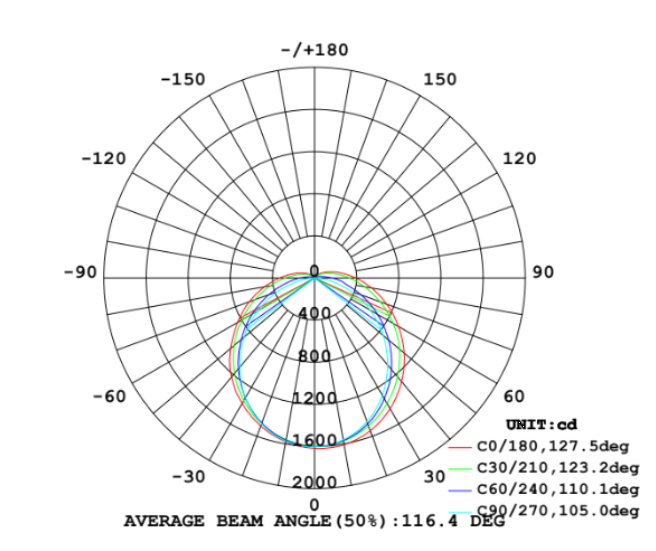

Photometrics
Photometric Data

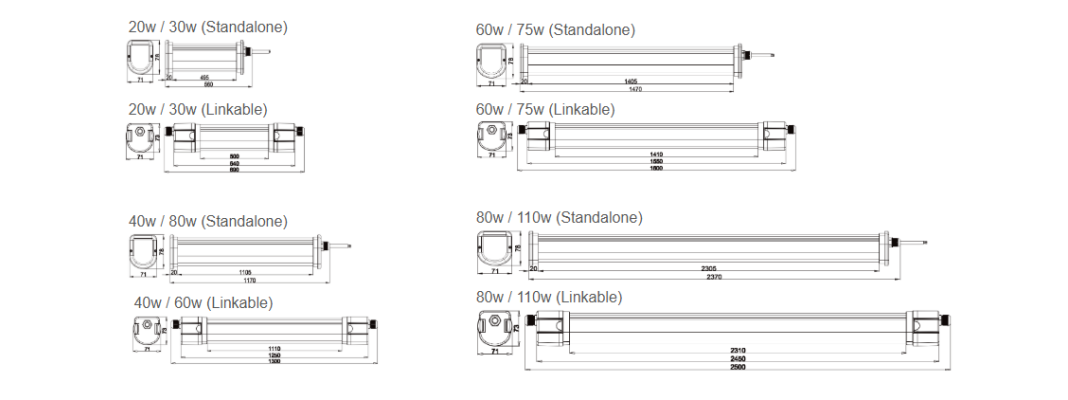

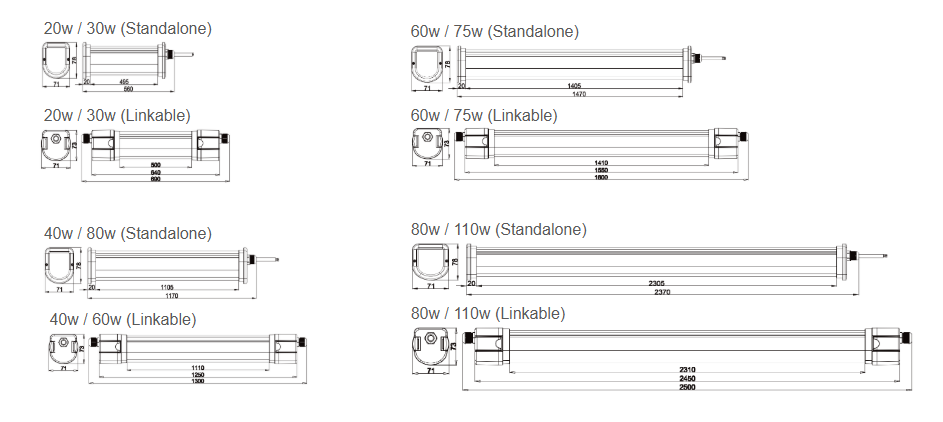

Dimensions

Dimension Image

Performance Data

Model #Nominal CCTCCT SelectableLPWWattsLumensCRI
BLV4-20W3000K 4000K 5000K 6000KNo135lm/W20W2,700lm>80Ra
BLV4-30W130lm/W30W3,900lm
BLV4-40W135lm/W40W5,400lm
BLV4-60W130lm/W60W7,800lm
BLV4-60W135lm/W60W8,100lm
BLV4-75W130lm/W75W9,750lm
BLV4-80W135lm/W80W10,800lm
BLV4-110W130lm/W110W14,300lm
