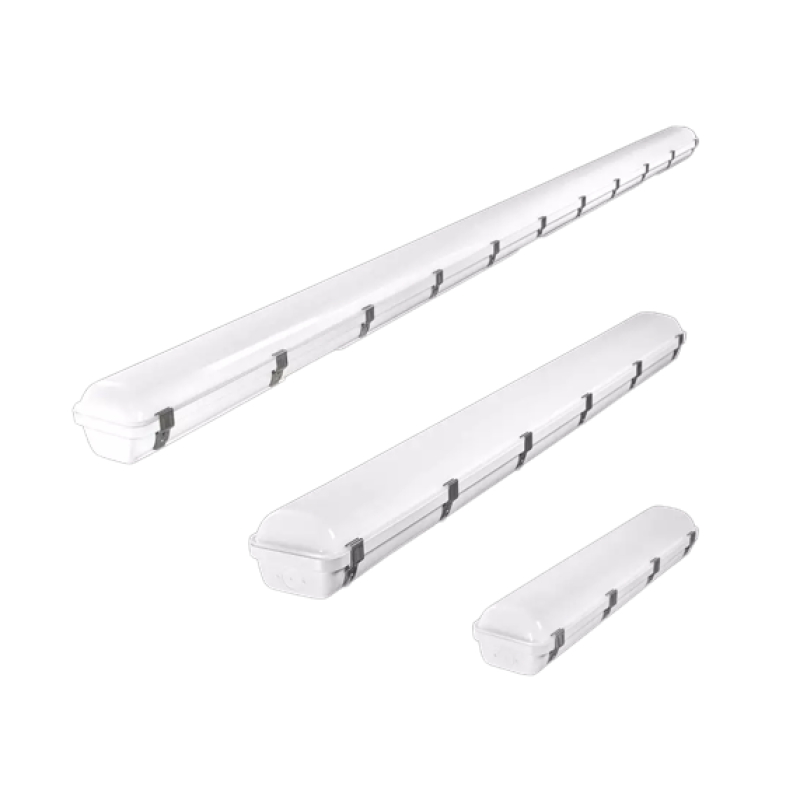

Bluecolt's V7 Linear fixture features a gasketed design for dust and moisture protection

Key Features :

  • Dust-tight and Waterproof: IP65 & IK08
  • Wattage & CCT Selectable
  • Polycarbonate Housing / Stainless Steel Clips

Product Options:

Wattage Selectable 30W = 20W/25W/30W 50W = 25W/30W/50W 60W = 40W/50W/60W 90W = 60W/75W/90W
Input Voltage 120-277V AC
CCT Selectable 3500K/4000K/5000K
Dimming 0-10v

Product Options:

Wattage 30W (20W/25W/30W Selectable)
50W (25W/30W/50W Selectable)
60W (40W/50W/60W Selectable)
90W (60W/75W/90W Selectable)
CCT 3500K/4000K/5000K
UL/CUL
DLC 5.1 Premium
NEMA 4X
NSF Certified
3 Watt Selectable
3 CCT Selectable
80+ CRI
0-10V Dimming
Wet Location
IK08
Sensor MMS
EM Option
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power (Field Adjustable):

  • 20W/25W/30W
  • 25W/30W/50W
  • 40W/50W/60W
  • 60W/75W/90W

Color Temperature (Field Adjustable):

  • 3500K/4000K/5000K
Compliance

UL Listed:

cULus listed for wet locations.

DLC®:

DLC(DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org

NSF:

Product meets the testing standards of the National Sanitation Foundation.

NEMA4X:

Complies with the requirements for the National Electrical Manufacturers Association's 4X rating for waterproof electrical enclosures.

Construction

Materials:

Stainless steel and PC

Finish:

  • Default color is White.

Ambient Temperature:

-4°F(-20°C) to 104°F(40°C)

Electrical

Dimming Driver:

0-10v dimmable driver.

Input Voltage:

AC120-277V

Optics

Dimming Driver:

  • CRI>80 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

Photometrics

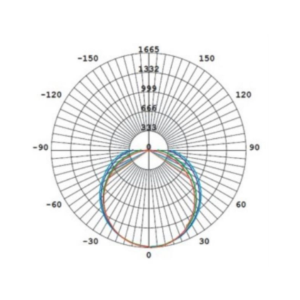

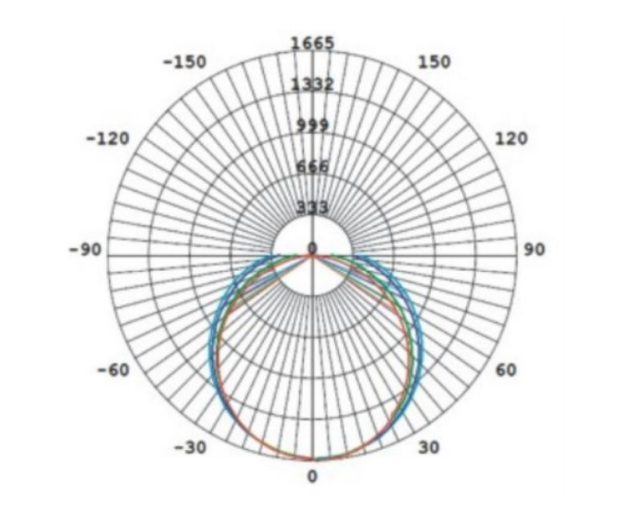

Photometric Data

Dimensions

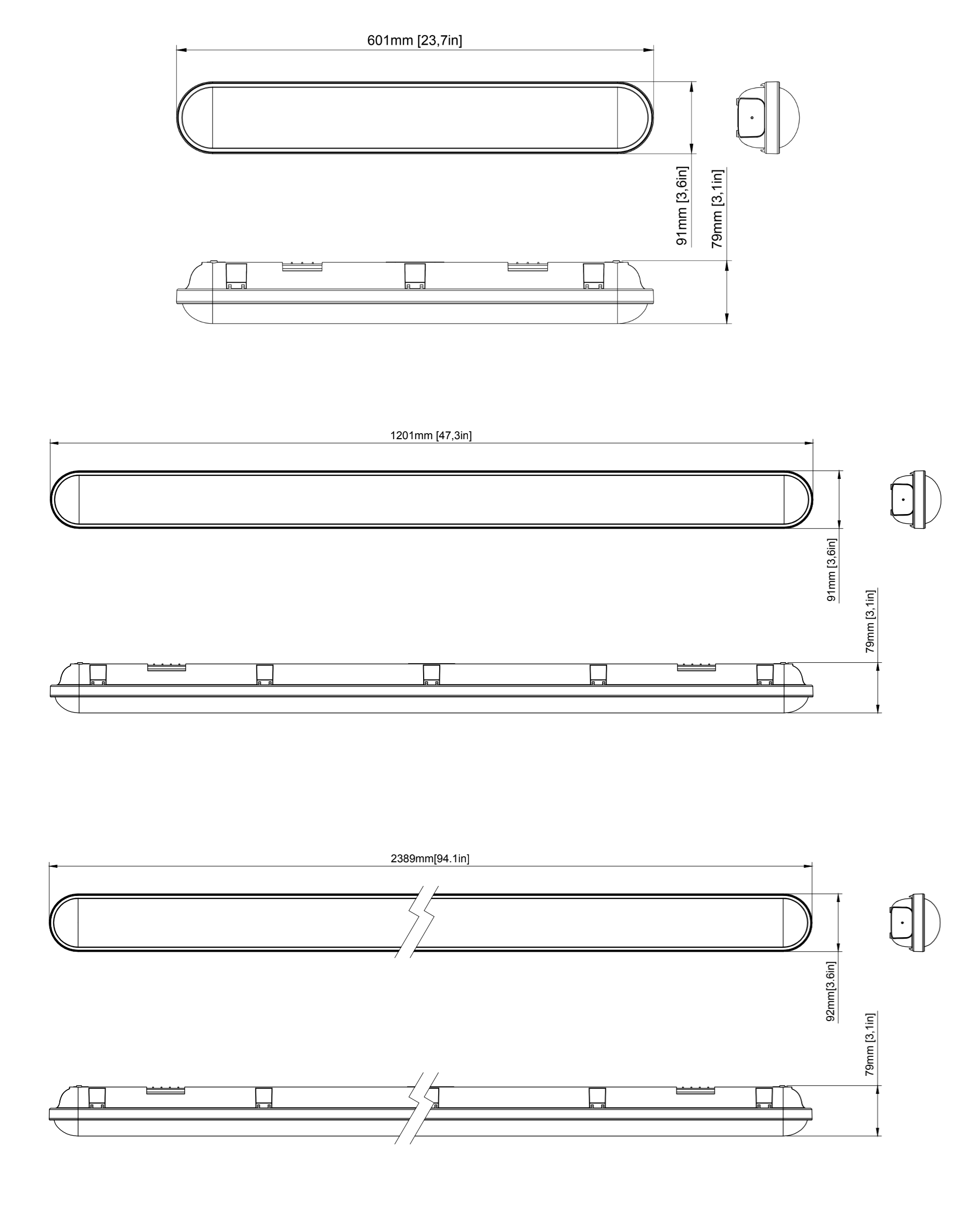

Dimension Image

Performance Data

Model #Lumen LevelWattage SelectableNominal CCTCCT SelectableLPWWattsLumensCRI
BLV7-30W1Yes3CCT (3500K/4000K/5000K)Yes150lm/W20W3,000lm>80Ra
225W3,750lm
330W4,500lm
BLV7-50W125W3,750lm
230W4,500lm
350W7,500lm
BLV7-60W140W6,000lm
250W7,500lm
360W9,000lm
BLV7-90W160W9,000lm
275W11,250lm
390W13,500lm
