Bluecolt's V8 vapor tight linear is a slim and sleek fixture that can handle moisture, steam, and dust to provide low-bay lighting in the harshest of environments.

Key Features :

  • CCT and Wattage Selectable
  • Surface or Ceiling mount options
  • Emergency battery version available

Product Options:

Wattage Selectable 50W/40W/30W 80W/70W/60W
Input Voltage AC120-277V, AC120-347V
CCT Selectable 3000K/4000K/5000K 4000K/5000K/5700K
Dimming 0-10v

Product Options:

Input Voltage AC120-277V
AC120-347V
Wattage 50W/40W/30W
80W/70W/60W
CCT 3000K/4000K/5000K
4000K/5000K/5700K
Dimming 0-10v
UL/CUL
DLC 5.1 Premium
3 Watt Selectable
3 CCT Selectable
80+ CRI
0-10V Dimming
Wet Location
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power (Field Adjustable):

  • 50W/40W/30W
  • 80W/70W/60W

Color Temperature (Field Adjustable):

  • 3000K/4000K/5000K
  • 4000K/5000K/5700K
Compliance

UL Listed:

cULus listed for wet locations.

DLC®:

DLC(DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org

Construction

Materials:

Made of plastic housing and polycarbonate lens.

Finish:

  • Default color is Grey.

Ambient Temperature:

-13°F(-25°C) to 113°F(45°C)

Electrical

Dimming Driver:

0-10v dimmable driver.

Input Voltage:

AC120-277V, AC120-347V

Optics

Dimming Driver:

  • CRI>80 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

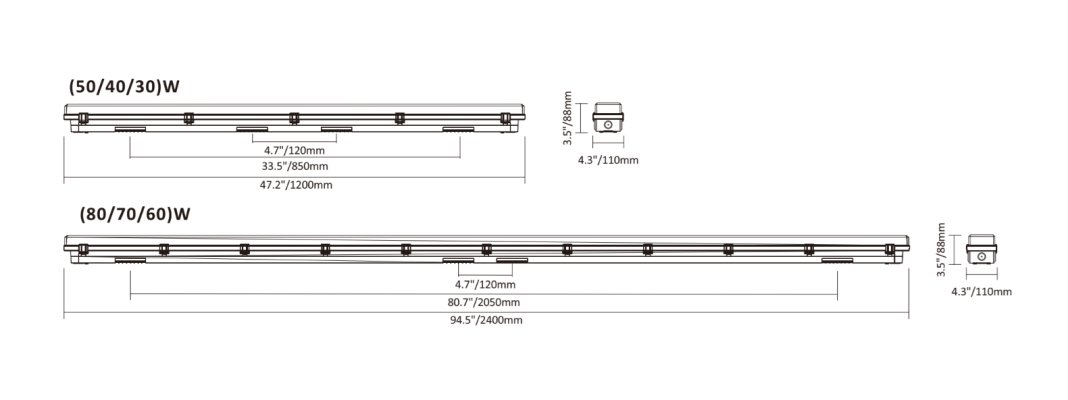

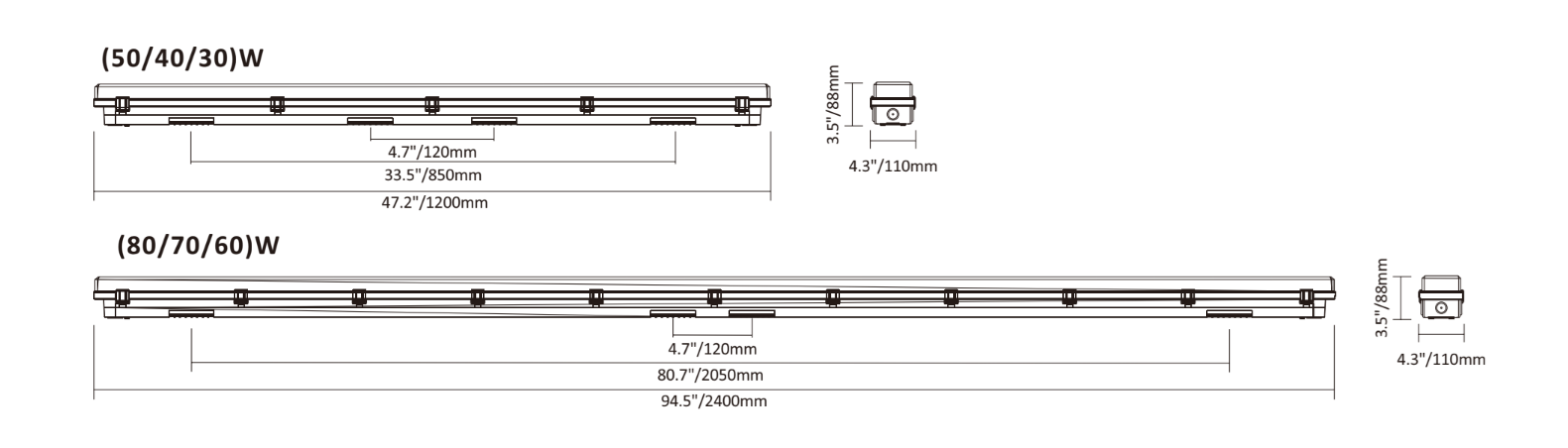

Dimensions

Dimension Image

Performance Data

Model #Lumen LevelWattage SelectableNominal CCTCCT SelectableLPWWattsLumensCRI
BLV8-50W1Yes3000KYes135lm/W30W4,050lm>80Ra
14000K158lm/W30W4,750lm
15000K148lm/W30W4,450lm
23000K131lm/W40W5,250lm
24000K154lm/W40W6,150lm
25000K145lm/W40W5,800lm
33000K130lm/W50W6,500lm
34000K154lm/W50W7,700lm
35000K144lm/W50W7,200lm
14000K143lm/W30W4,300lm
15000K163lm/W30W4,900lm
15700K148lm/W30W4,450lm
24000K139lm/W40W5,550lm
25000K158lm/W40W6,300lm
25700K145lm/W40W5,800lm
34000K130lm/W50W6,500lm
35000K148lm/W50W7,400lm
35700K136lm/W50W6,800lm
BLV8-80W13000K144lm/W60W8,650lm
14000K148lm/W60W8,900lm
15000K146lm/W60W8,750lm
23000K140lm/W70W9,800lm
24000K144lm/W70W10,100lm
25000K141lm/W70W9,900lm
33000K130lm/W80W10,400lm
34000K134lm/W80W10,750lm
35000K132lm/W80W10,550lm
14000K145lm/W60W8,700lm
15000K149lm/W60W8,950lm
15700K146lm/W60W8,750lm
24000K141lm/W70W9,850lm
25000K144lm/W70W10,100lm
25700K141lm/W70W9,900lm
34000K130lm/W80W10,400lm
35000K134lm/W80W10,700lm
35700K131lm/W80W10,450lm
