Engineered to endure the most extreme environments, the V9 Harsh Environment Linear delivers uncompromising durability and high- temperature resistance, backed by a full suite of rigorous certifications. Rated IP69K, IK10, NEMA 4X, and NSF-certified, it confidently withstands high-pressure washdowns, thermal shock, and chemical exposure; making it the ideal solution for food processing, industrial, agricultural, and other demanding applications.
The resilient, low-profile design is both lightweight and linkable, enabling fast, flexible installations even in tight spaces. With versatile mounting options and safe DC quick-connect cabling, the V9 simplifies maintenance while ensuring continuous, reliable performance under pressure.
Key Features :
- High efficacy: up to 160 Lumens/Watt
- IP69K, IK10, and NSF-certified

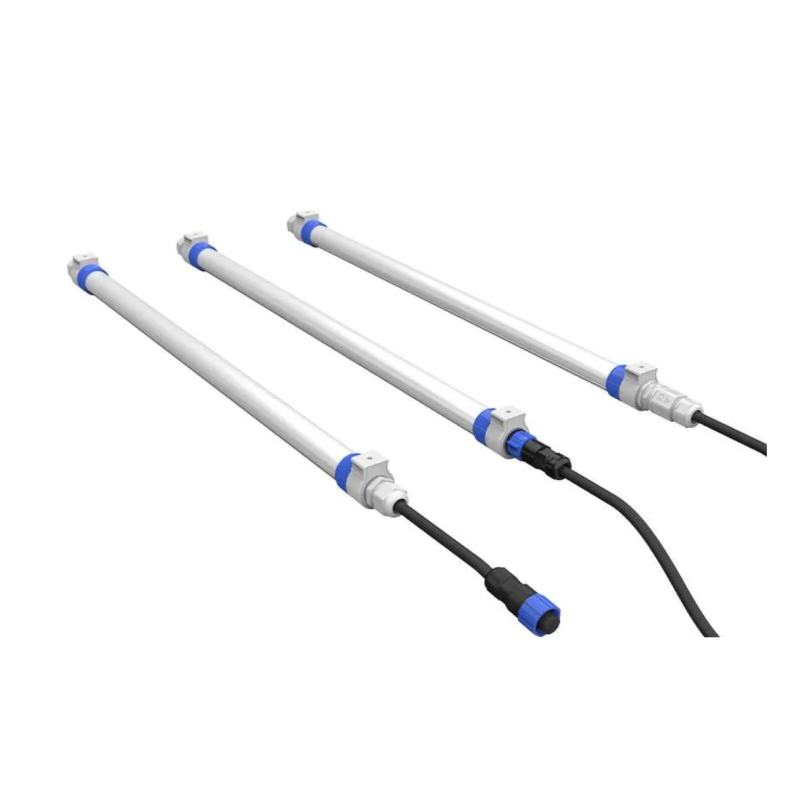

- Lightweight and Linkable
Product Options:
| Wattage |
13W
25W
38W
50W |
| Input Voltage |
DC48V |
| CCT |
4000K
5000K |
| Dimming |
0-10v |
| IP Rating |
IP68/IP69K |
| IK Rating |
IK10 |
Product Options:
| Input Voltage |
DC48V
|
| Wattage |
50W
25W
13W
38W
|
| CCT |
4000K
5000K
|
| Dimming |
0-10v
|
Product Configurator
Select fixture options to generate SKU and download specific Design Files
Technical Specifications
Performance
Power:
Color Temperature:
Compliance
ETL Listed:
Product has been tested and meets safety and performance standards set by Intertek’s Electrical Testing Labs.
DLC®:
DLC(DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org
CE:
Product meets the essential requirements of European Union.
ROHS:
Complies with the EU Restriction Of Hazardous Substances. https://environment.ec.europa.eu/
NSF:
Product meets the testing standards of the National Sanitation Foundation.
Construction
Materials:
Reinforced aluminum and stainless steel
Finish:
Ambient Temperature:
-40°F(-40°C) to 140°F(60°C)
Electrical
Driver:
AC100-277V, AC347-480V (optional)
Dimming Driver:
0-10v dimmable driver and non-dimming option.
Input Voltage:
DC48V
Optics
Dimming Driver:
- CRI>70 Standard.
- Optional CRI>80. PC Lens.
Warranty
5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty
