Bluecolt's Versa Cylinder fixture has a sleek profile and is lightweight. It offers a range of installation options to suit various interior area lighting needs in multiple sizes.

Key Features :

  • CCT and Wattage Selectable

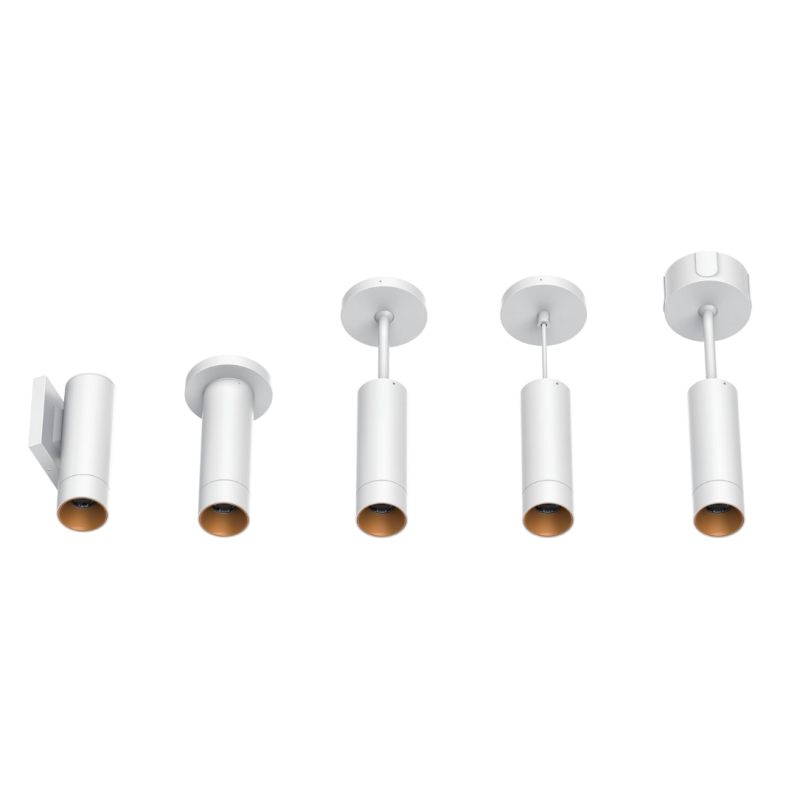

  • 4 different mounting methods

Product Options:

Wattage Selectable 15W/12W/9W 30W/24W/18W 40W/30W/20W 55W/48W/40W 100W/80W/60W
Input Voltage AC120-277V
CCT Selectable 2700K/3000K/3500K/4000K/5000K

Product Options:

Input Voltage AC120-277V
Wattage 40W/30W/20W
100W/80W/60W
15W/12W/9W
30W/24W/18W
55W/48W/40W
CCT 2700K/3000K/3500K/4000K/5000K
Dimming 1-10v
TRIAC
DLC 5.1 Premium
ETL Listed
3 Watt Selectable
5 CCT Selectable
80+ CRI
90+ CRI
1-10V Dimming
TRIAC Dimming
Damp Location
EM Option
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power (Field Adjustable):

  • 15W/12W/9W
  • 30W/24W/18W
  • 40W/30W/20W
  • 55W/48W/40W
  • 100W/80W/60W

Color Temperature (Field Adjustable):

  • 2700K/3000K/3500K/4000K/5000K
Compliance

ETL Listed:

Product has been tested for safety and performance data, and it complies with the necessary regulations and codes.

DLC®:

DLC(DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org

Construction

Materials:

Housing is made of 6063 aluminum.

Finish:

  • Default colors are Black, White, or Silver, with custom paint options available.
  • Powder coated surface treatment.

Ambient Temperature:

-13°F(-25°C) to 122°F(50°C)

Electrical

Dimming Driver:

1-10v dimmable driver.
TRIAC dimmable driver.

Input Voltage:

AC120-277V

Optics

Dimming Driver:

  • CRI>80 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

Photometrics

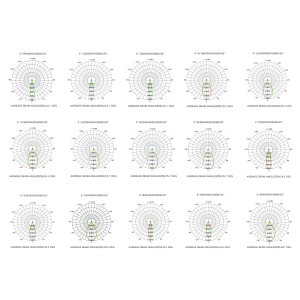

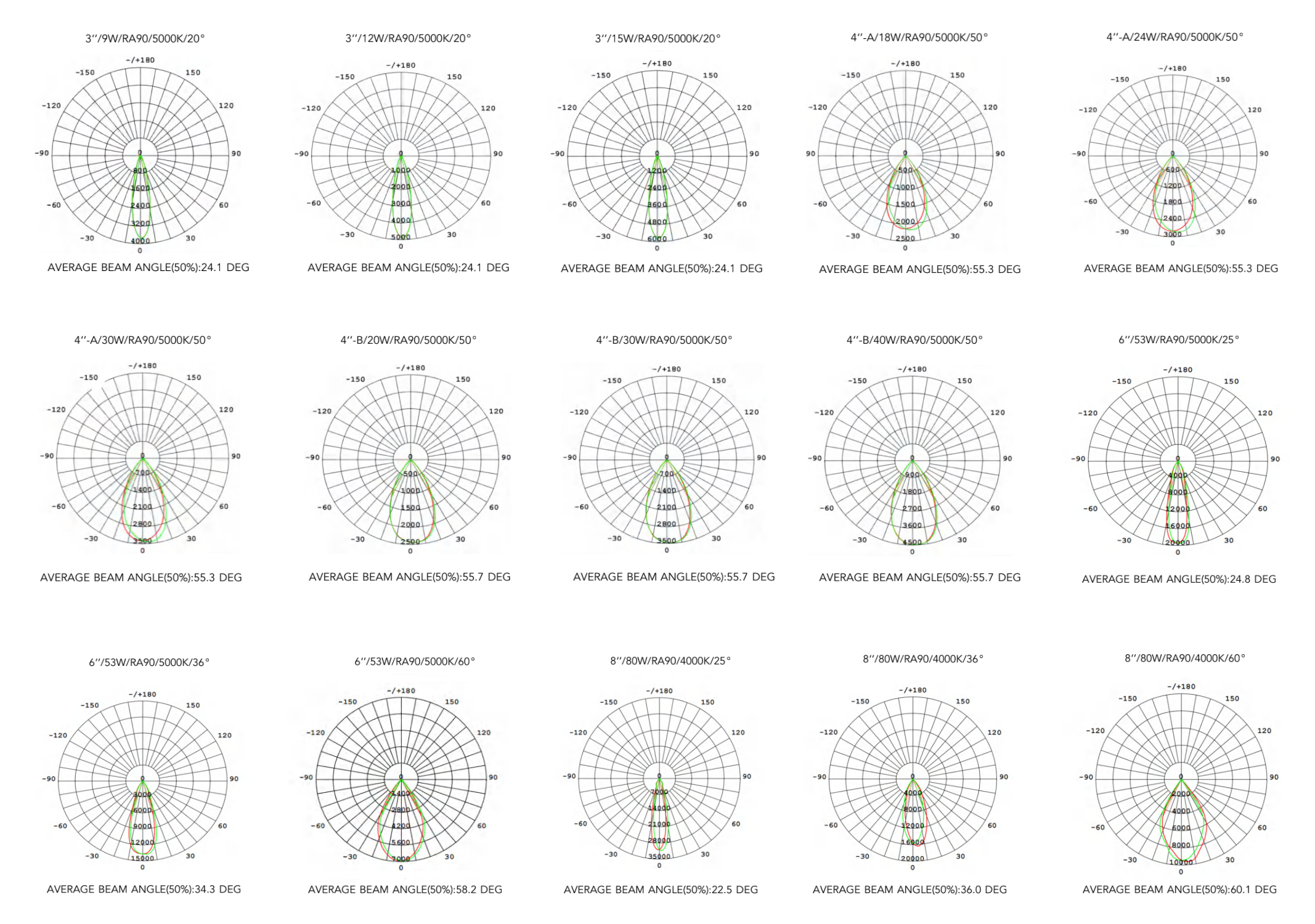

Photometric Data

Dimensions

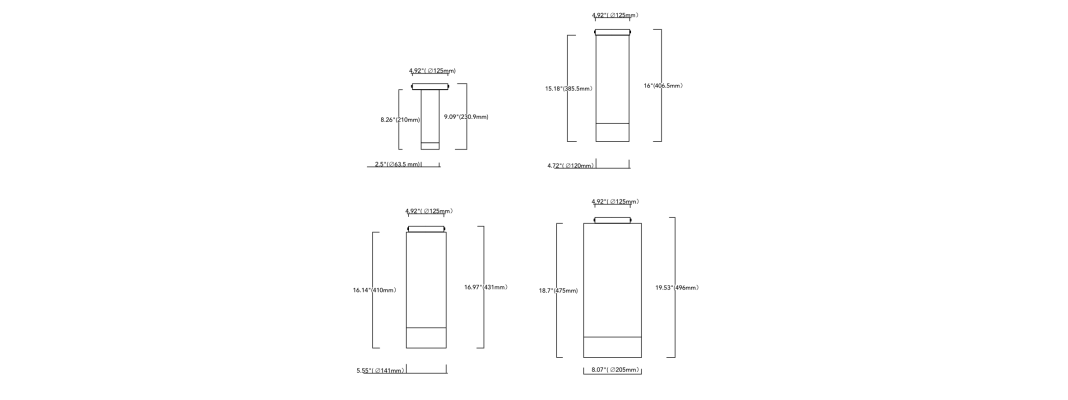

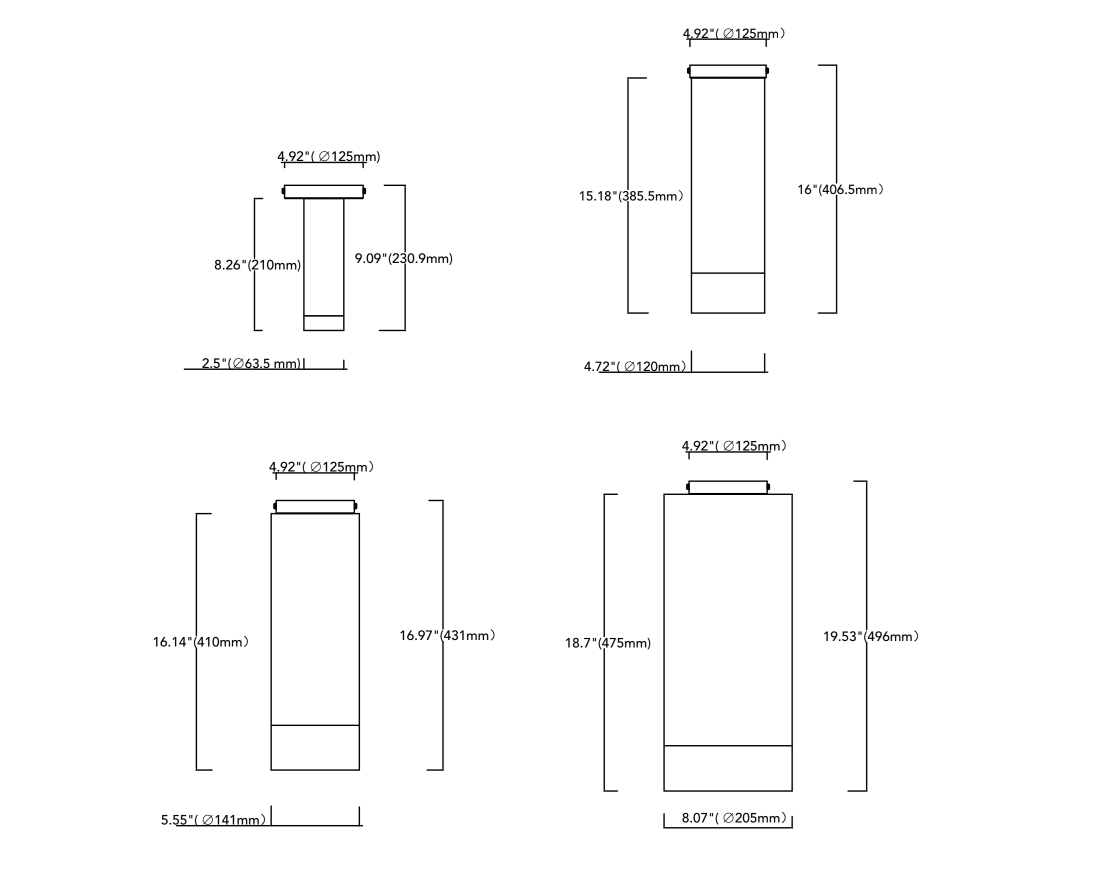

Dimension Image

Performance Data

Model #Lumen LevelWattage SelectableNominal CCTCCT SelectableLPWWattsLumensCRI
BLVCYL-15W1Yes5CCT (2700K/3000K/3500K/4000K/5000K)Yes90lm/W9W810lm>80Ra
212W1,080lm
315W1,350lm
BLVCYL-30W118W1,620lm
224W2,160lm
330W2,700lm
BLVCYL-40W120W1,800lm
230W2,700lm
340W3,600lm
BLVCYL-55W140W3,600lm
248W4,320lm
355W4,950lm
BLVCYL-100W160W5,400lm
280W7,200lm
3100W9,000lm
