Vector Neon LED Strip

Explosion Proof

Bluecolt's Vector Neon is a flexible LED strip with rounded edges, double-sided, and can be free-cut to suit unique lengths indoors or outdoors.

Key Features :

  • Free-cut lengths
  • IP54 and IK10
  • Double-sided illumination

Product Options:

Wattage 10W/FT
Input Voltage DC12V, DV24V
CCT 1800K 2400K 2700K 3000K 3500K 4000K 5000K 6000K Red Green Blue Yellow Orange Pink
Dimming PWM

Product Options:

Input Voltage DC12V
DC24V
Wattage 10W
CCT 2700K
3000K
3500K
4000K
5000K
6000K
R
G
B
1800K
2400K
Yellow
Orange
Pink
Dimming PWM Dimming (Standard)
UL/CUL
90+ CRI
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power:

  • 10W/m

Color Temperature (K):

  • 1800±100
  • 2400±150
  • 2700±150
  • 3000±150
  • 3500±250
  • 4000±300
  • 5000±400
  • 6000±400
  • Red
  • Green
  • Blue
  • Yellow
  • Orange
  • Pink
Compliance

UL Listed:

cULus listed for wet locations.

Construction

Materials:

Made with silicone casing.

Finish:

  • Default color is White.

Ambient Temperature:

-13°F(-25°C) to 113°F(45°C)

Electrical

Dimming Driver:

PWM dimmable driver.

Input Voltage:

DC12V, DV24V

Optics

Dimming Driver:

  • CRI>90 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

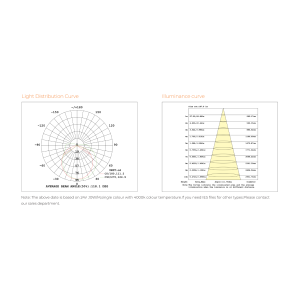

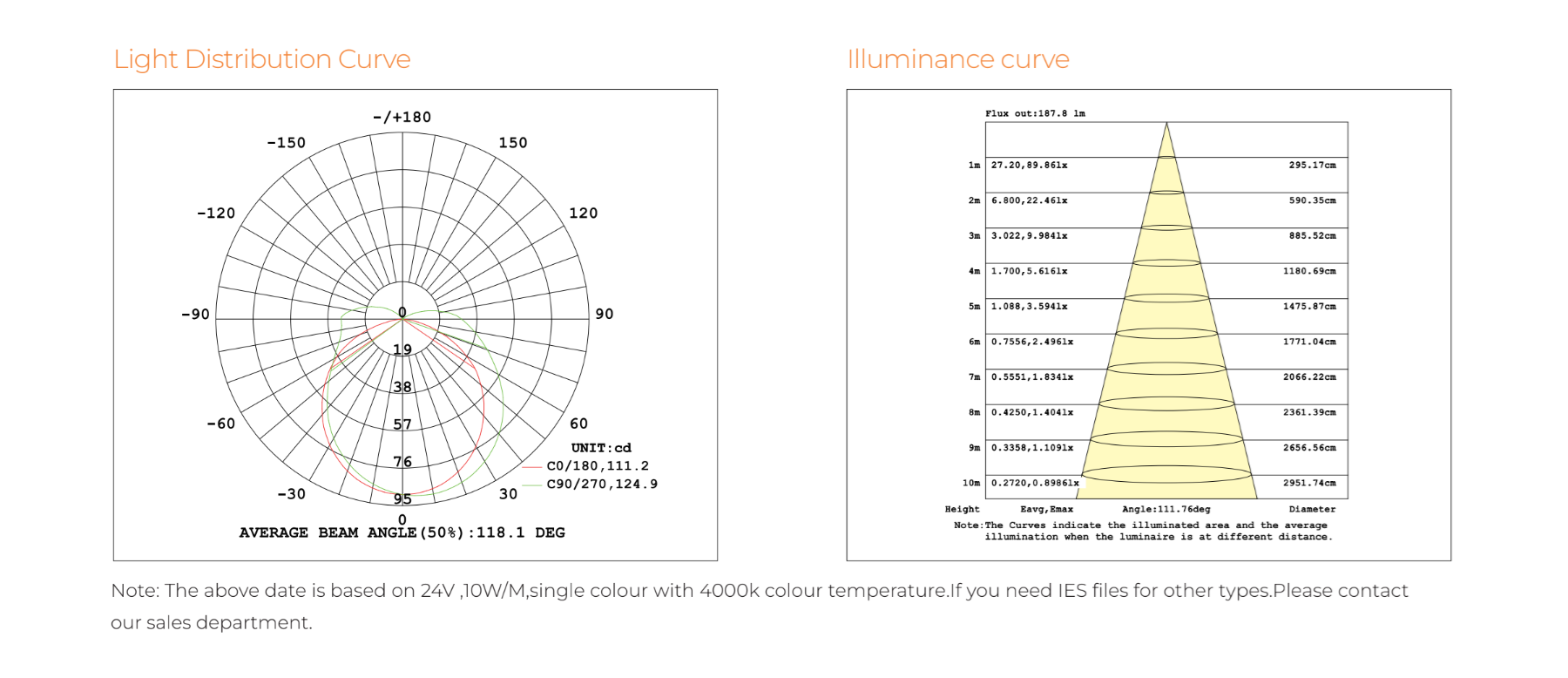

Photometrics
Photometric Data

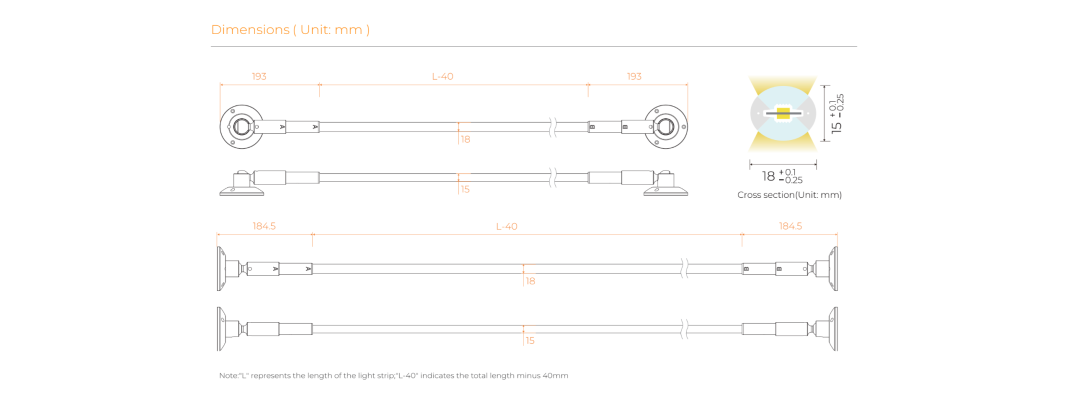

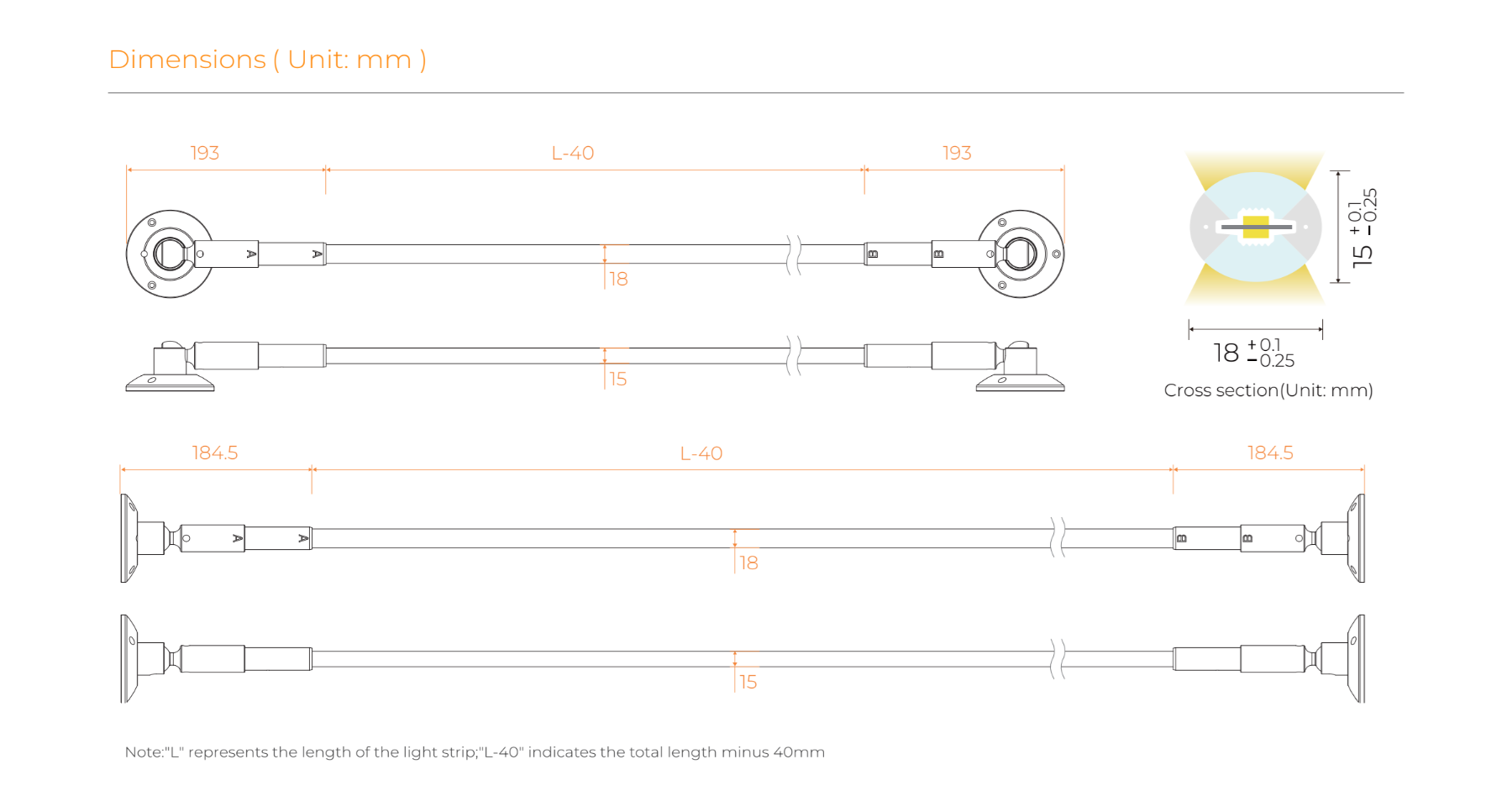

Dimensions

Dimension Image

Performance Data

Model #Nominal CCTLPWWattsLumensCRI
BLVN-10W/m1800K30.7lm/W10W/m307lm/m>90Ra
2400K36.4lm/W10W/m364lm/m
2700K38.9lm/W10W/m389lm/m
3000K38.5lm/W10W/m385lm/m
3500K40.2lm/W10W/m402lm/m
4000K44.4lm/W10W/m444lm/m
5000K41.9lm/W10W/m419lm/m
6000K45.0lm/W10W/m450lm/m
Red10.3lm/W10W/m103lm/m
Green33.1lm/W10W/m331lm/m
Blue14.2lm/W10W/m142lm/m
Yellow47.3lm/W10W/m473lm/m
Orange30.4lm/W10W/m304lm/m
Pink18.1lm/W10W/m181lm/m
