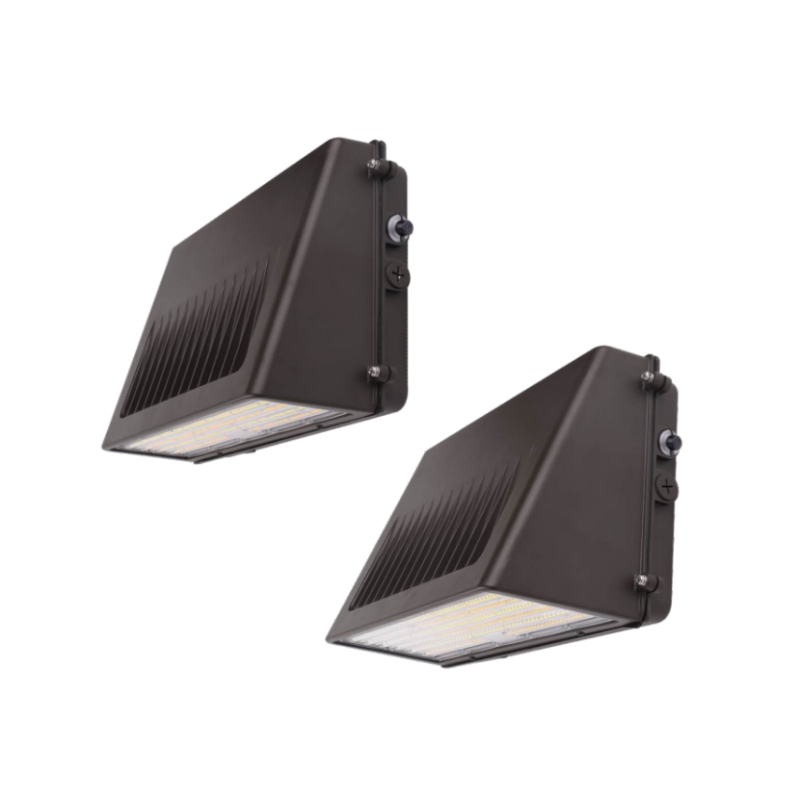

The WP10 is our rugged dark bronze die-cast aluminum wall pack light that’s built for durability and versatility. Featuring an IP65 rating for wet locations, wattage selectability, and the ability to achieve up to 20,800 lumens.
Key Features :
- High efficacy: up to 178 Lumens/Watt
- Wide operating temperature for outdoor applications
- Optional emergency battery
Product Options:
| Wattage Selectable |
63W/45W/30W
90W/63W/45W
125W/105W/76W |
| Input Voltage |
AC120-277V
AC120-347V 50/60Hz |
| CCT Selectable |
3000K/4000K/5000K |
| Dimming |
0-10V |
Product Options:
| Wattage |
63W/45W/30W
90W/63W/45W
125W/105W/76W
|
Product Configurator
Select fixture options to generate SKU and download specific Design Files
Technical Specifications
Performance
Power (Field Adjustable):
- 63W/45W/30W
- 90W/63W/45W
- 125W/105W/76W
Color Temperature (Field Adjustable):
Compliance
UL Listed:
cULus listed for wet locations.
DLC®:
DLC(DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org
Construction
Materials:
Die-cast aluminum with glass and PC lens options
Finish:
- Default color is Dark Bronze.
- Powder coated surface treatment.
Ambient Temperature:
-40°F(-40°C) to 113°F(45°C)
Electrical
Dimming Driver:
0-10v dimmable driver.
Input Voltage:
AC120-277V, AV120-347V, 50/60Hz

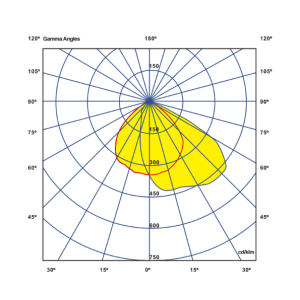

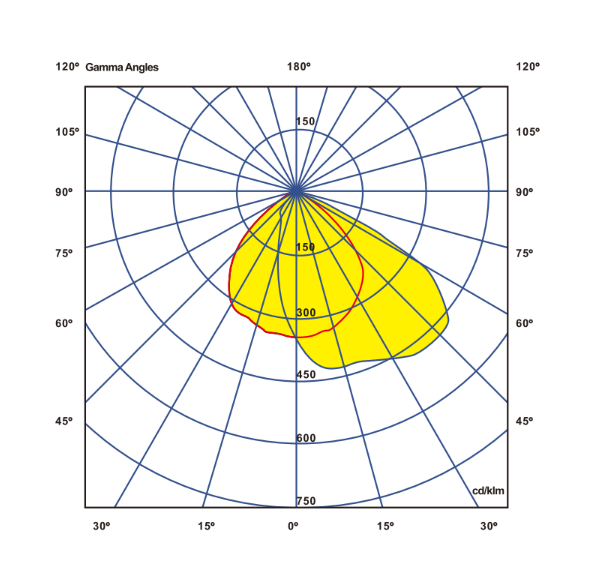

Optics
Dimming Driver:
Warranty
5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty
