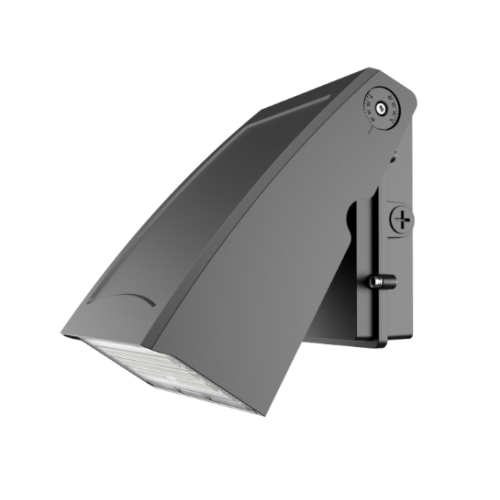

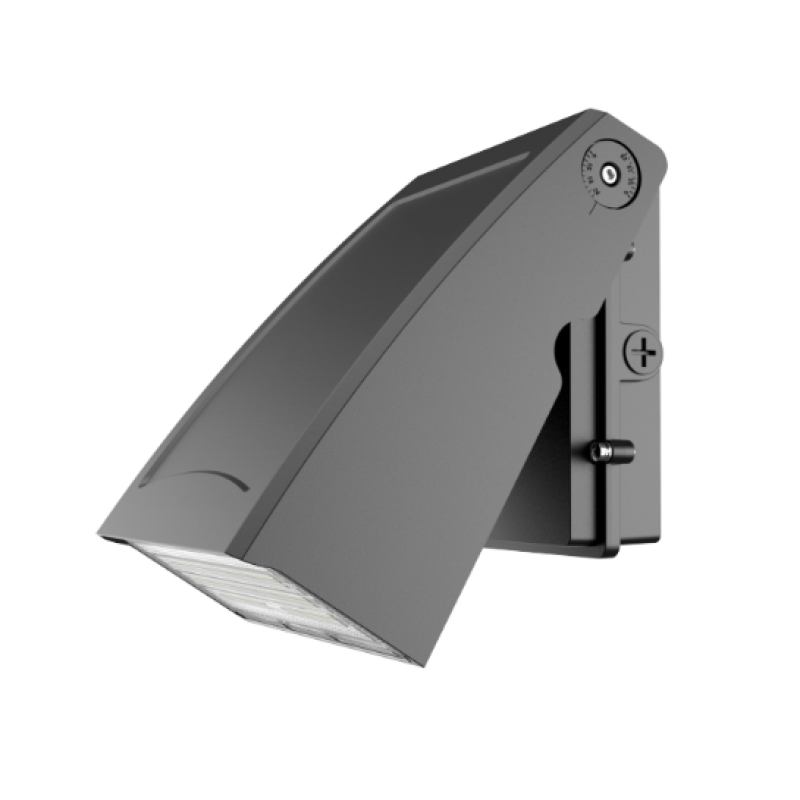

Wall Pack 6

Sports Lighting

Bluecolt's WP6 Wallpack fixture is designed for building exterior applications that require dependable lighting. It’s adjustable design allows for a full cut-off application.

Key Features :

  • UV-resistant polycarbonate Lens
  • Adjustable Direction 0-90 degrees
  • Single CCT or CCT Tunable
  • Wet location rated IP65

Product Options:

Wattage 20W 40W 60W 80W 100W 120W
Input Voltage 120-277VAC; 120-347VAC
CCT 3K = 3000K 4K = 4000K 5K = 5000K 57K = 5700K 3000K/4000K/5000K
Dimming 0-10v
IP Rating IP65
IK Rating IK08

Product Options:

Wattage 100W
20W
40W
60W
80W
120W
CCT 3000K/4000K/5000K
DLC 5.1 Premium
ETL Listed
3 CCT Selectable
70+ CRI
1-10V Dimming
0-10V Dimming
Wet Location
IK08
Sensor Photocell
Distribution T2
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power:

  • 20W
  • 40W
  • 60W
  • 80W
  • 100W
  • 120W

Color Temperature:

  • 3000K
  • 4000K
  • 5000K
  • 5700K
  • 3000K/4000K/5000K
Compliance

ETL Listed:

Product has been tested and meets safety standards recognized in the U.S. and Canada.

DLC®:

DLC(DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org

Construction

Materials:

Die-cast aluminum housing and PC lens.

Finish:

  • Default color is Bronze/Black.

Ambient Temperature:

-22°F(-30°C) to 113°F(45°C)

Electrical

Dimming Driver:

0-10v dimmable driver.

Input Voltage:

AC120-277V, AV120-347V

Optics

Dimming Driver:

  • CRI>70 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

Photometrics

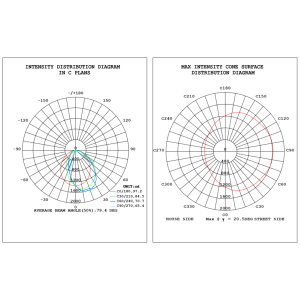

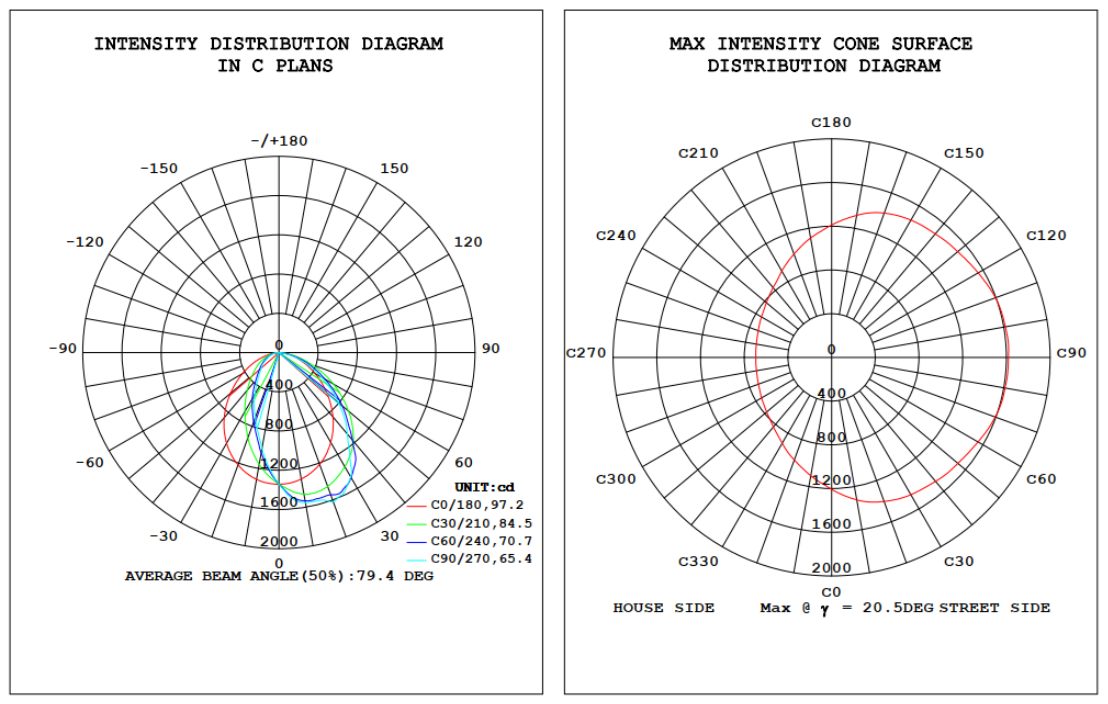

Photometric Data

Dimensions

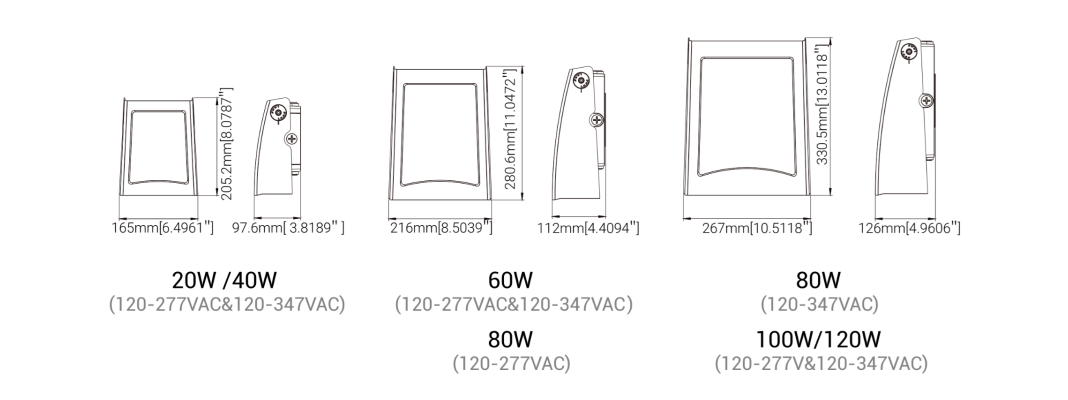

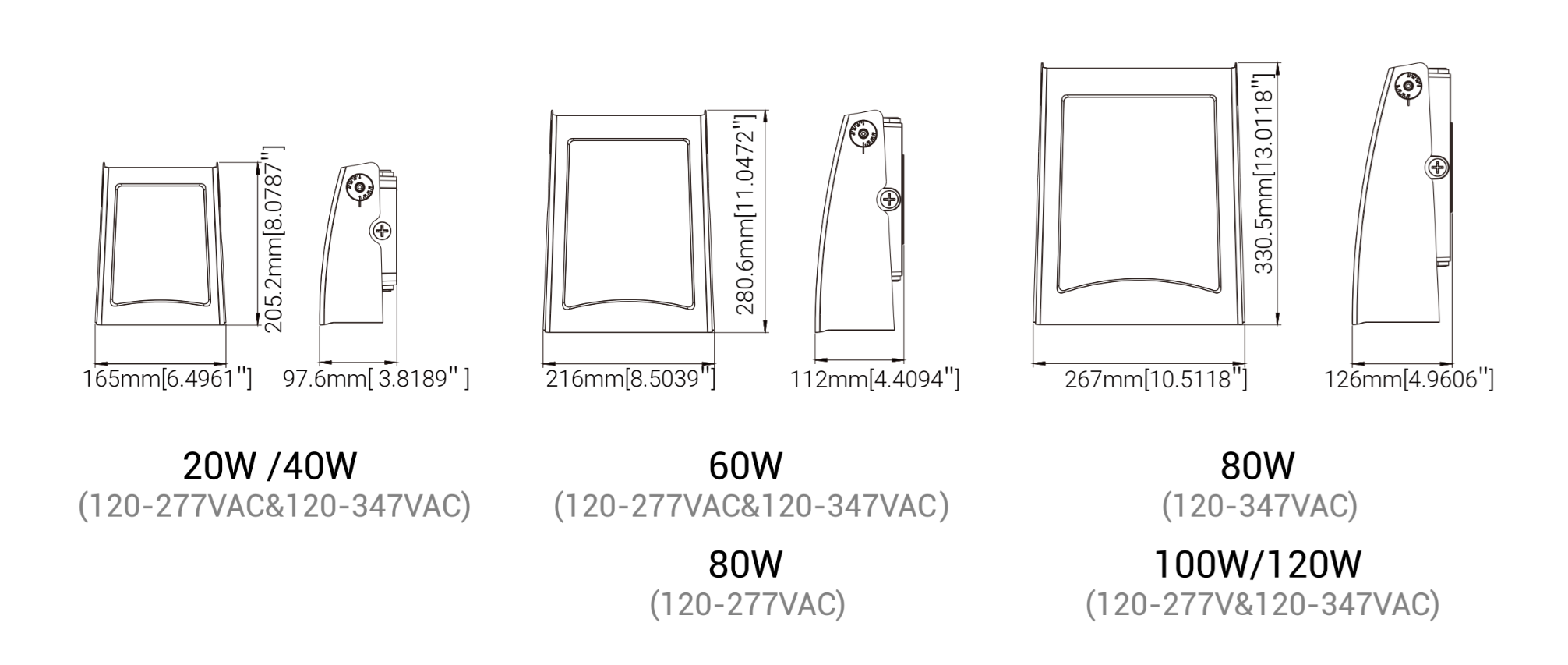

Dimension Image

Performance Data

Model #Nominal CCTCCT SelectableLPWWattsLumensCRI
BLWP6-20W3000K 4000K 5000K 5700K 3CCT (3000K/4000K/5000K)Yes130lm/W20W2,600lm>70Ra
BLWP6-40W40W5,200lm
BLWP6-60W60W7,800lm
BLWP6-80W80W10,400lm
BLWP6-100W100W13,000lm
BLWP6-120W120W15,600lm
