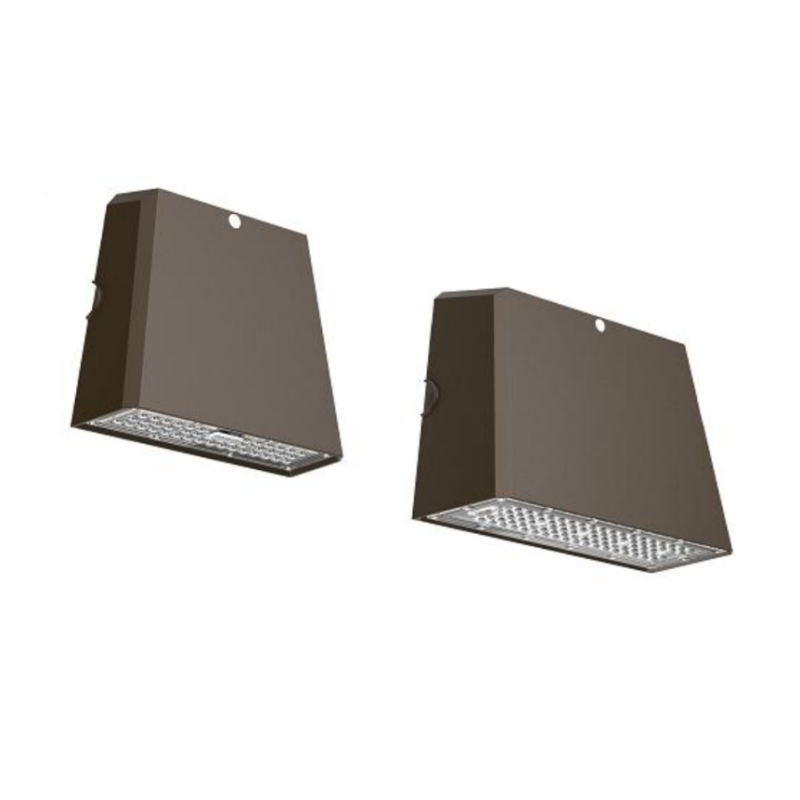

Sleek, lightweight, and built to last, the WP8 Slim Wall Pack delivers powerful performance with zero maintenance - engineered for effortless installation and long-term reliability. Perfect for upgrading outdated fixtures, this fixture combines modern efficiency with unmatched versatility. Say goodbye to bulky, outdated lighting, the WP8 Slim Wall Pack offers a seamless upgrade with superior performance and modern convenience.
Key Features :
- 4 Selectable Wattages – Customize brightness to fit any space
- 2 Adjustable Color Temperatures – 3,000K or 4,000K at the flip of a switch
- Advanced Sensor Capabilities – Smart, energy-efficient operation
- Low-Profile Design – Discreet yet powerful illumination
Product Options:
| Wattage Selectable |
9W/ 15W/ 22.5W/ 30W
12W/ 20W/ 36W/ 40W
21W/ 35W/ 52.5W/ 70W |
| Input Voltage |
AC100-277V, 50/60Hz |
| CCT Selectable |
3000K/ 4000K Selectable |
| Dimming |
0-10V |
| IK Rating |
IK08 |
Product Options:
| Wattage |
30W = 9W/ 15W/ 22.5W/ 30W
40W = 12W/ 20W/ 36W/ 40W
70W = 21W/ 35W/ 52.5W/ 70W
|
| CCT |
3000K/4000K
|
Product Configurator
Select fixture options to generate SKU and download specific Design Files
Technical Specifications
Performance
Power (Field Adjustable):
- 9W/ 15W/ 22.5W/ 30W
- 12W/ 20W/ 36W/ 40W
- 21W/ 35W/ 52.5W/ 70W
Color Temperature (Field Adjustable):
Compliance
ETL Listed:
Product has been tested and meets safety standards recognized in the U.S. and Canada.
Construction
Materials:
Rugged die-cast aluminum housing with dark bronze powder coating for durability. Castings are sealed with integral gaskets to prevent the ingress of external contaminants.
Finish:
- Default color is Dark Bronze.
- Powder coated surface treatment.
Ambient Temperature:
-40°F(-40°C) to 113°F(45°C)
Electrical
Dimming Driver:
0-10v dimmable driver.
Input Voltage:
AC120-277V, 50/60Hz
Optics
Dimming Driver:
Warranty
5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty
