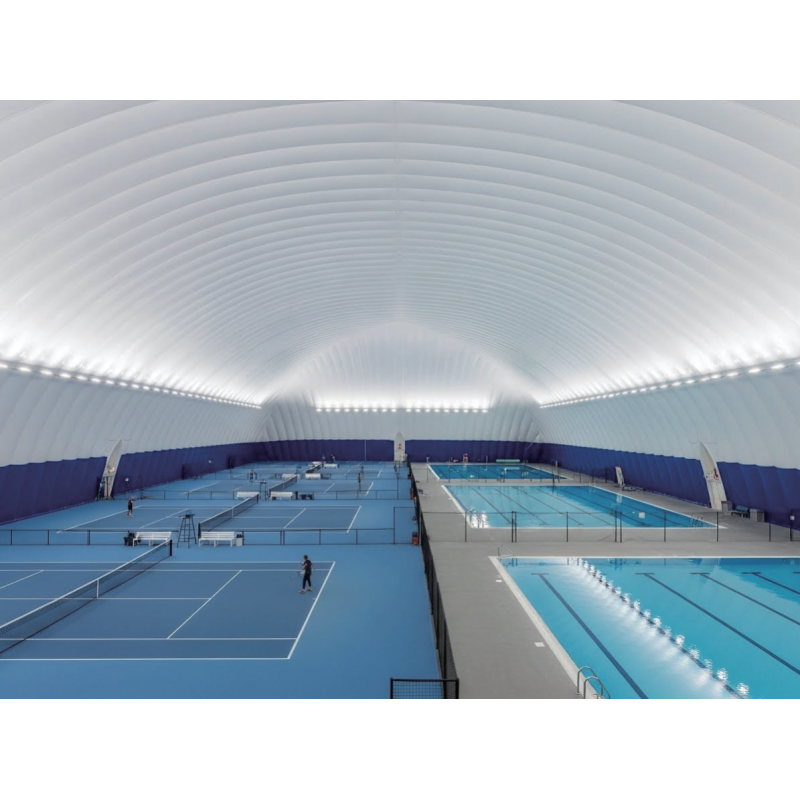

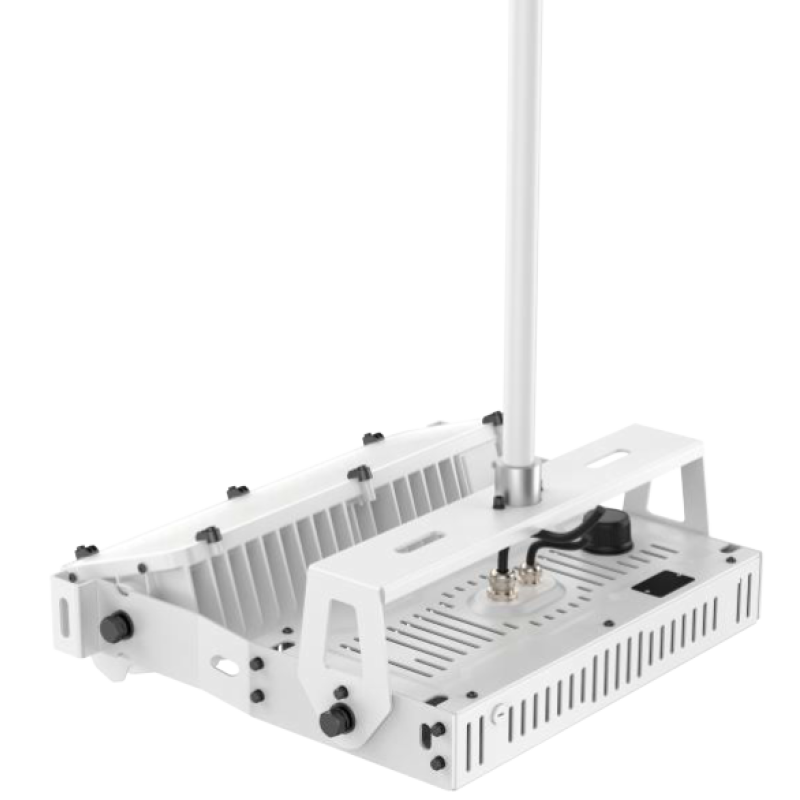

Designed to illuminate indoor environments with exacting requirements, the Arena 7 redefines high-performance indirect lighting. Whether illuminating the vast expanse of an indoor arena, navigating the humidity of a swimming pool or operating within the pressure-sealed confines of an air dome this fixture delivers soft even lighting. Featuring a fully adjustable 180° module, the Arena 7 offers unparalleled control for multi-angle indirect illumination, eliminating glare while bathing the space in uniform light. With robust corrosion resistance and flexible power configurations, it isn't just a lighting fixture; it is the professional’s choice for venues where performance cannot be compromised.
Key Features :
- High efficacy: up to 155 Lumens/Watt

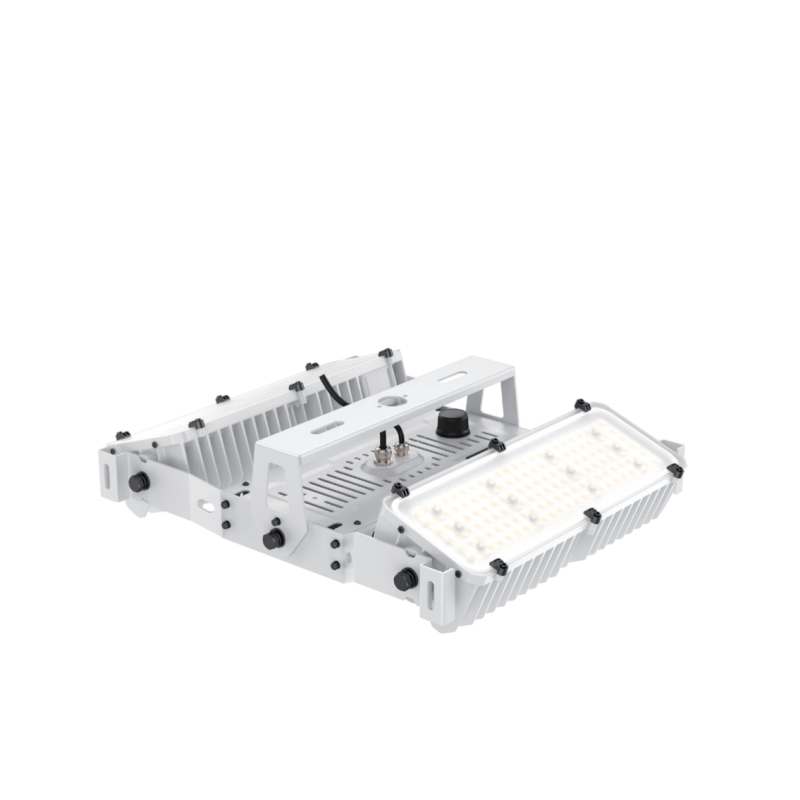

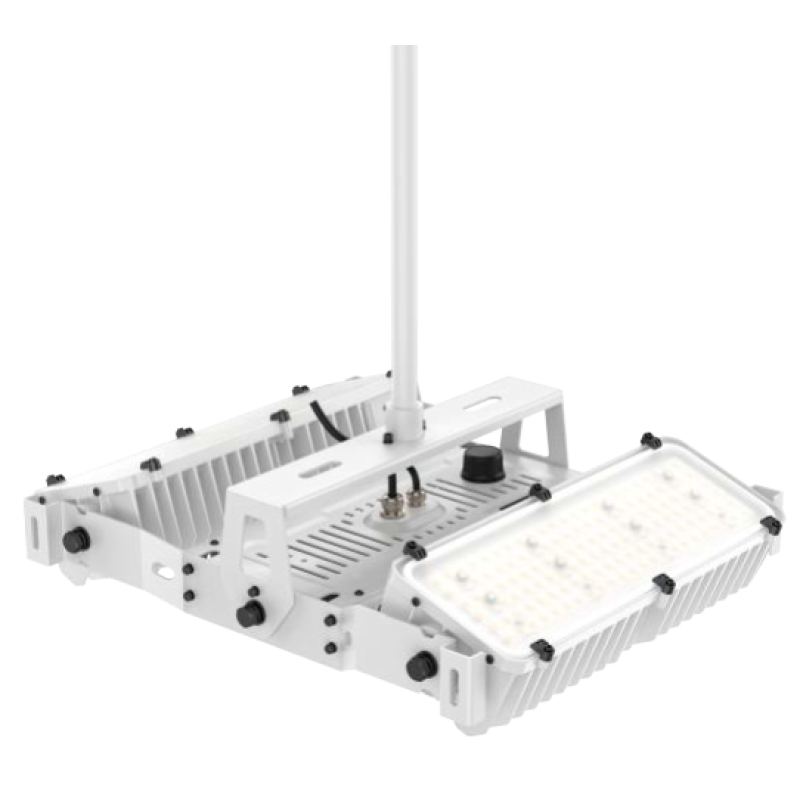

- Adjustable 180° module
- Wattage Selectable
Product Options:
| Wattage Selectable |
300W/225W/150W
600W/450W/300W |
| Input Voltage |
AC120-277V
AC277-480V |
| CCT |
5000K |
| Dimming |
0-10v |
| IP Rating |
IP65 |
| IK Rating |
IK08 |
Product Options:
| Input Voltage |
AC277-480V
AC120-277V
|
| Wattage |
300W/225W/150W
600W/450W/300W
|
| CCT |
5000K
|
| Dimming |
0-10v
|
Product Configurator
Select fixture options to generate SKU and download specific Design Files
Technical Specifications
Performance
Power (Field Adjustable):
- 300W/225W/150W
- 600W/450W/300W
Color Temperature:
Compliance
UL Listed:
cULus listed for wet locations.
DLC®:
DLC(DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org

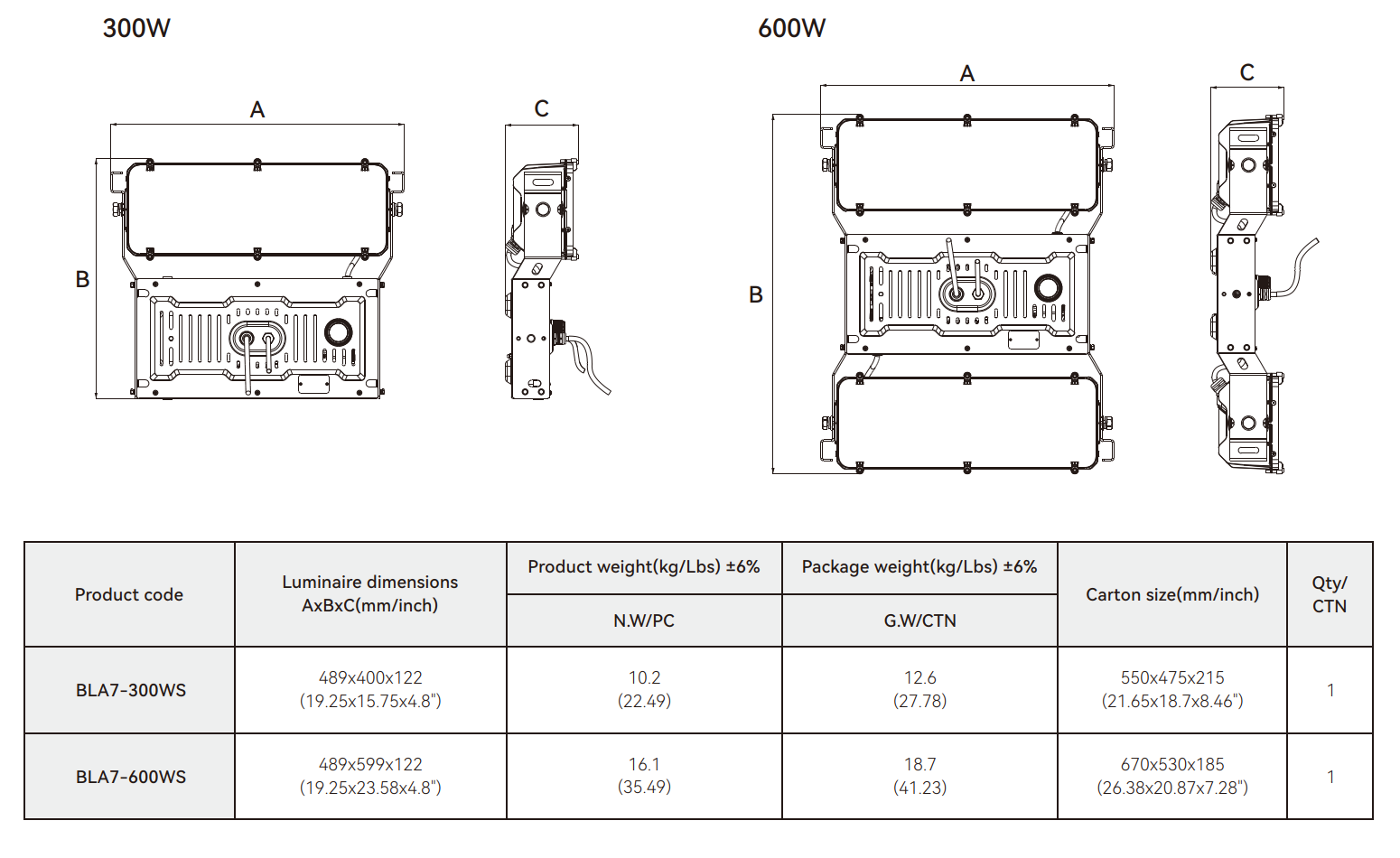

Construction
Materials:
Aluminum housing, ZAM mounting brackets, and polycarbonate lens.
Finish:
- Default color is Silver.
- Powder coated surface treatment.
- Tested with 1000 hr salt spray test.
Ambient Temperature:
-22°F (-30°C) to 122°F (50°C)
Electrical
Dimming Driver:
0-10v dimmable driver.
Input Voltage:
AC120-277V, AC277-480V, 50/60Hz

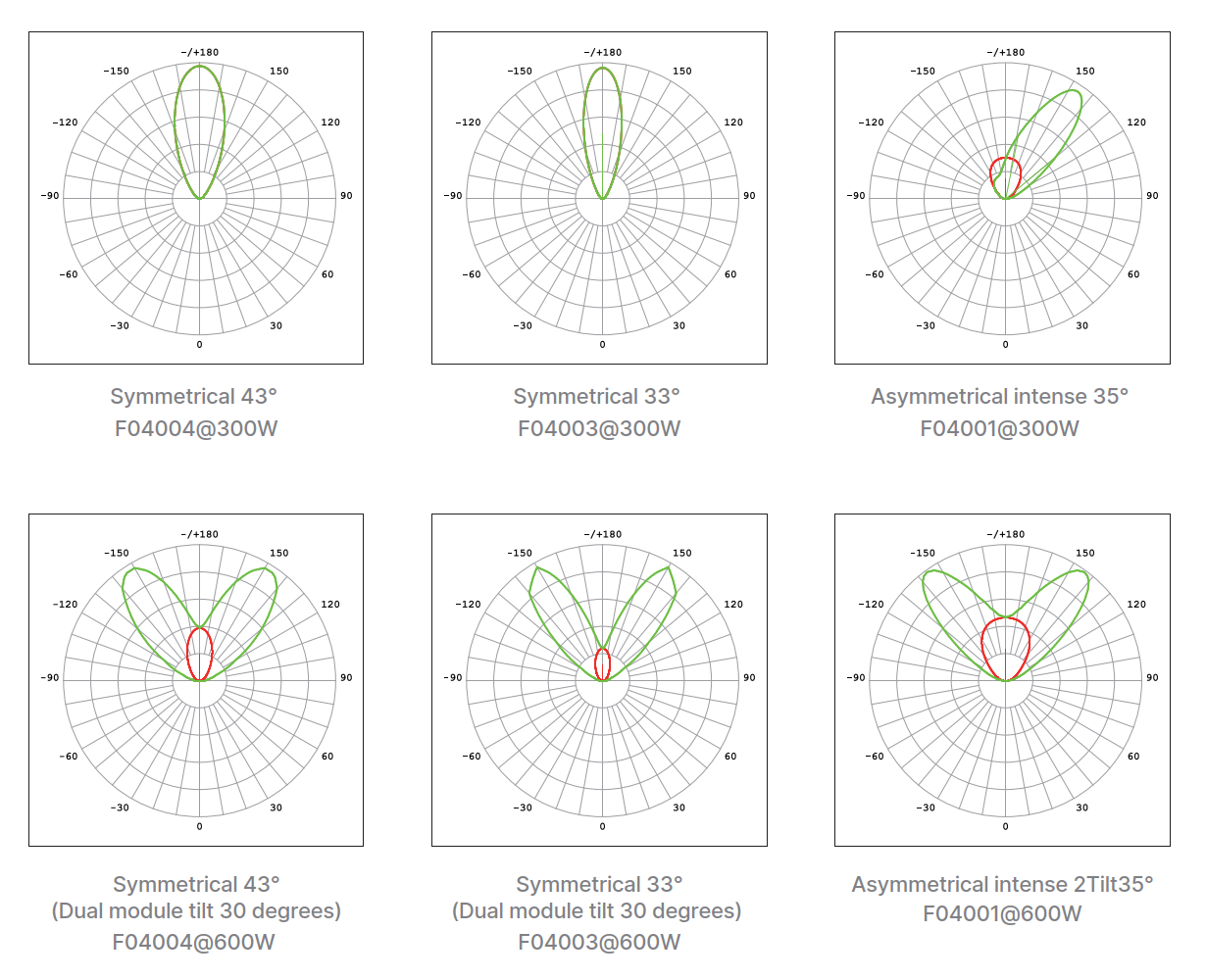

Optics
Dimming Driver:
Warranty
5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty
