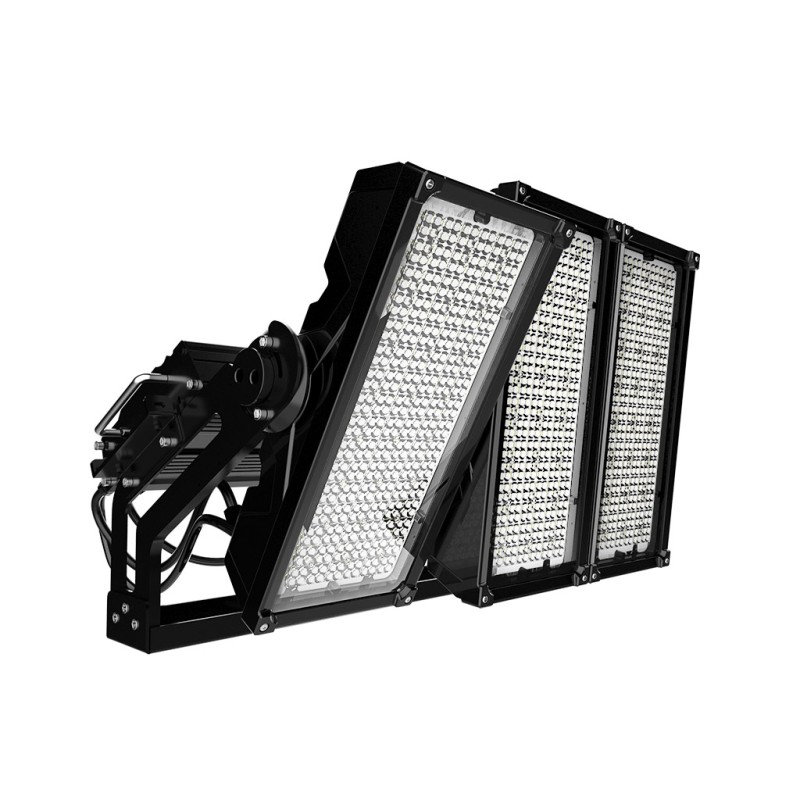

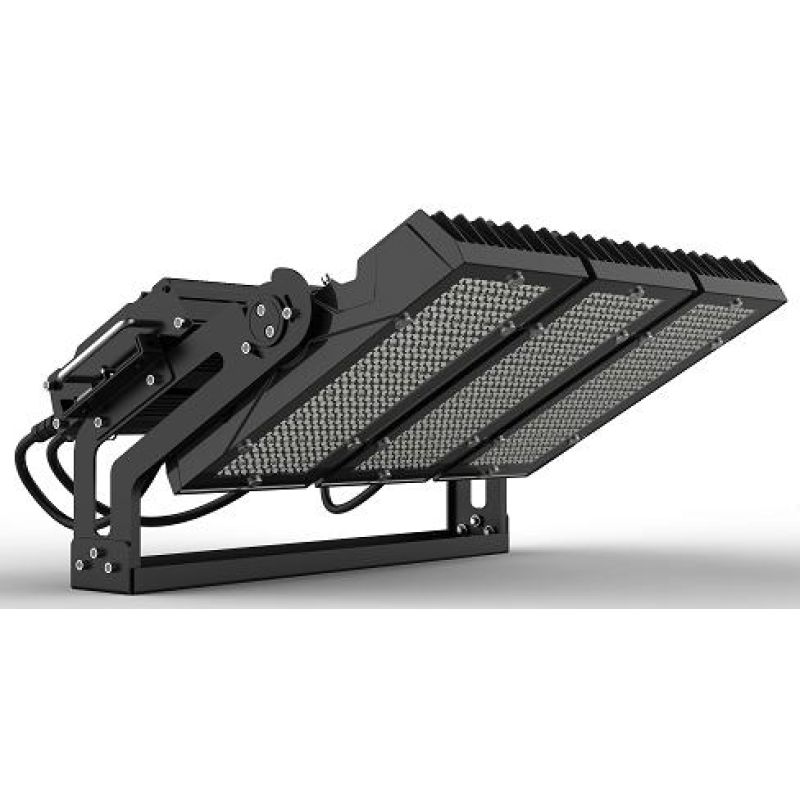

Bluecolt’s Arena 1 is designed for sports arenas, stadiums, airports, and applications that require energy-efficient, high-output lighting. Featuring six optical beam angles, the Arena I reduces dark spots and enhances overall visibility by providing smooth, even illumination. Adjustable brackets offer greater maneuverability, while the high-wind certified mounting system provides maximum security and reliability in tough environments.
Key Features :
- High lumen output of up to 135lm/W
- Six optical beam angles
- High-wind certified mounting system
Product Options:
| Wattage |
300W
600W
900W |
| Input Voltage |
AC100-240V, AC100-277V |
| CCT |
3000K
4000K
5000K |
| Dimming |
1-10v
DALI |
| IP Rating |
IP66 |
| IK Rating |
IK08 |
Product Options:
| Input Voltage |
AC100-277V
AC100-240V
|
| Wattage |
300W
600W
900W
|
| CCT |
3000K
4000K
5000K
|
| Dimming |
DALI Dimming
1-10v
|
Product Configurator
Select fixture options to generate SKU and download specific Design Files
Technical Specifications
Performance
Power:
Color Temperature:
Compliance
ETL:
Product has been tested for safety and performance data, and it complies with the necessary regulations and codes.
CE:
Product meets the essential requirements of European Union.
ROHS:
Complies with the EU Restriction Of Hazardous Substances. https://environment.ec.europa.eu/
Construction
Materials:
Made of aluminum alloy, tempered glass, and polycarbonate lenses.
Finish:
- Default color is Black.
- Powder coated surface treatment.
Ambient Temperature:
-22°F(-30°C) to 122°F(50°C)
Electrical
Dimming Driver:
1-10v dimmable driver.
DALI dimmable driver.
Input Voltage:
AC100-240V, AC100-277V, 50-60Hz
Optics
Dimming Driver:
- CRI>70 Standard.
- Optional CRI>80. PC Lens.
Warranty
5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty
