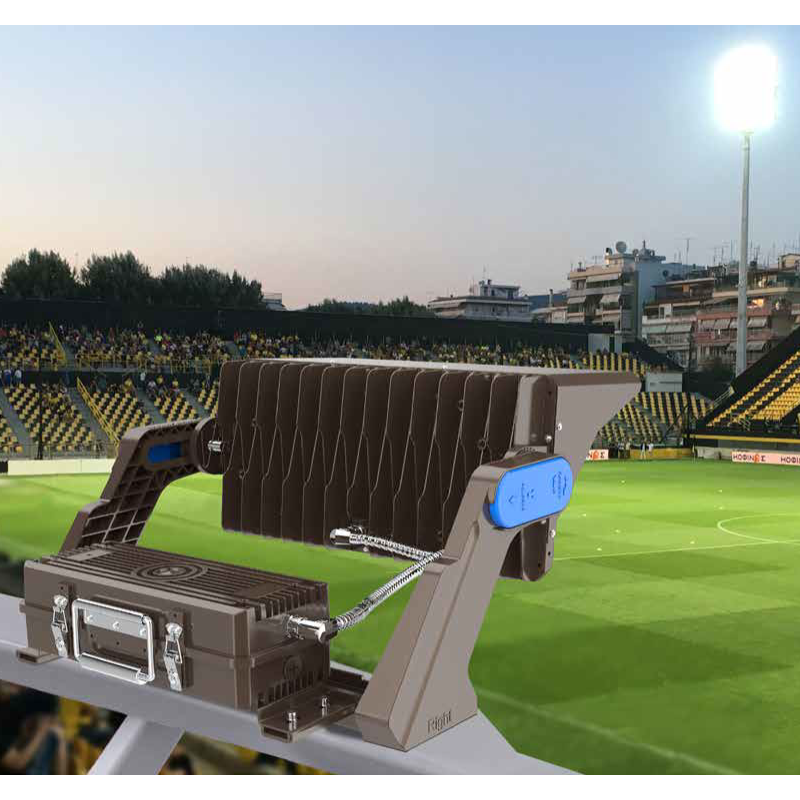

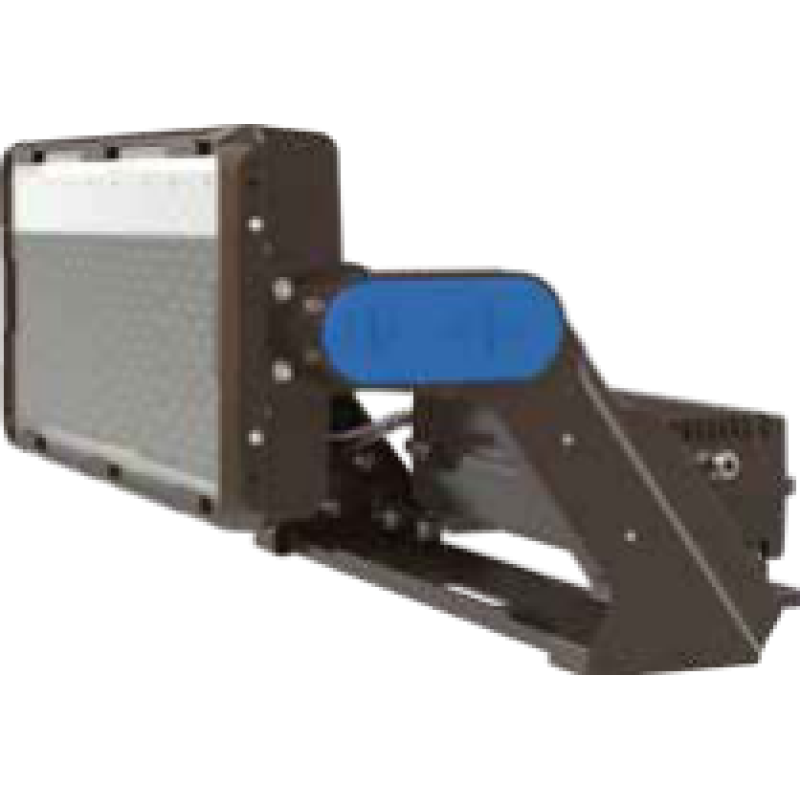

Bluecolt's Arena2 fixture is designed for sports lighting, public areas, and large industrial spaces.

Key Features :

  • 270° rotational brackets and specialized lens optics allow for class-leading lighting performance.

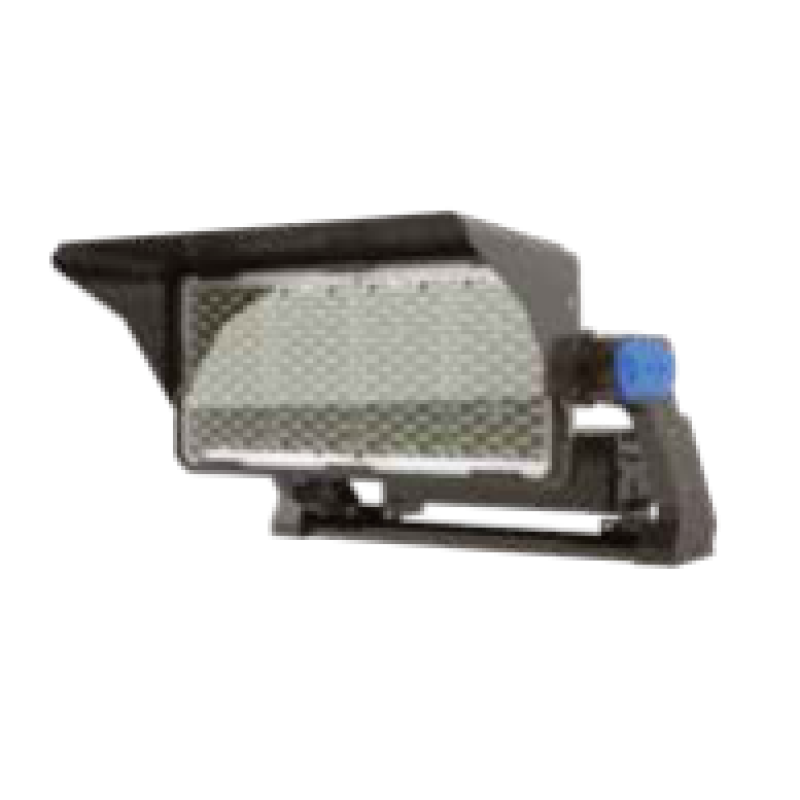

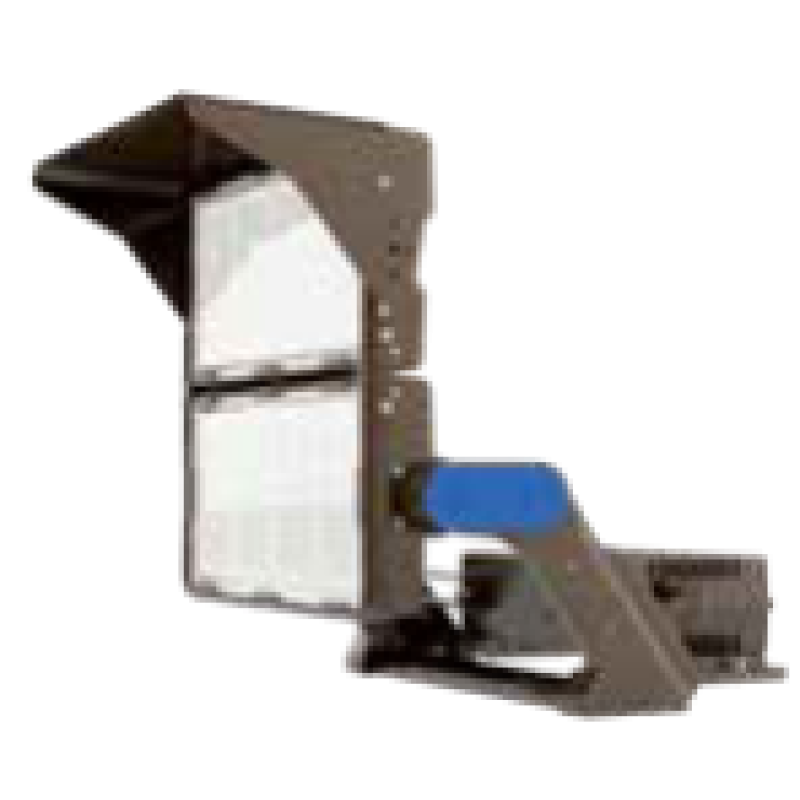

  • Lens hoods available for fixtures up to 1200W to aid with dark-sky compliance.
  • Flexible mounting options with independent power supply and brackets.

Product Options:

Wattage 400W 500W 600W 800W 1000W 1200W 1500W
Input Voltage AC100-277V AC240-480V
CCT 3000K, 4000K, 5000K, 5700K
IP Rating IP67

Product Options:

Input Voltage AC100-277V
AC240-480V
Wattage 400W
500W
800W
1200W
600W
1000W
1500W
CCT 3000K
4000K
5000K
5700K
UL/CUL
DLC 5.1 Premium
70+ CRI
Wet Location
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power:

  • 400W
  • 500W
  • 600W
  • 800W
  • 1000W
  • 1200W
  • 1500W

Color Temperature:

  • 4000K
  • 5000K
  • 5700K
Compliance

UL Listed:

cULus listed for wet locations.

DLC®:

DLC(DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org

Construction

Materials:

Made of die-cast aluminum and glass lenses.

Finish:

  • Default color is Bronze.

Ambient Temperature:

-22°F(-30°C) to 122°F(50°C)

Electrical

Input Voltage:

AC100-277V, AC240-480V

Optics

Dimming Driver:

  • CRI>70 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

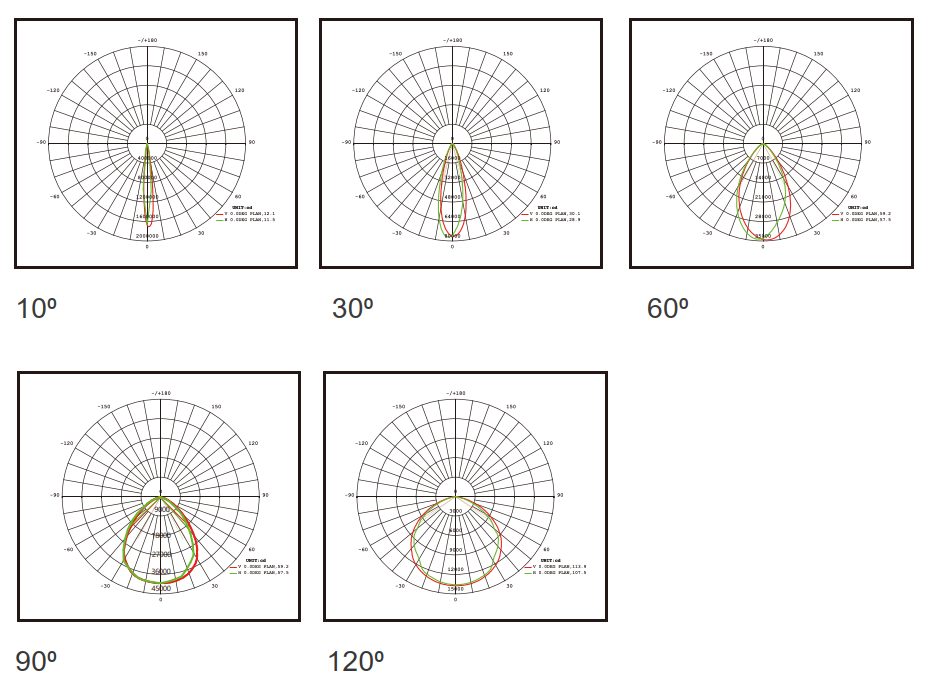

Photometrics

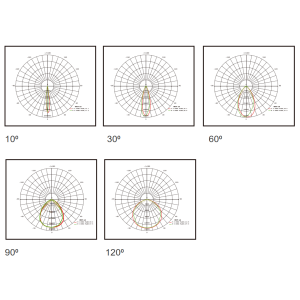

Photometric Data

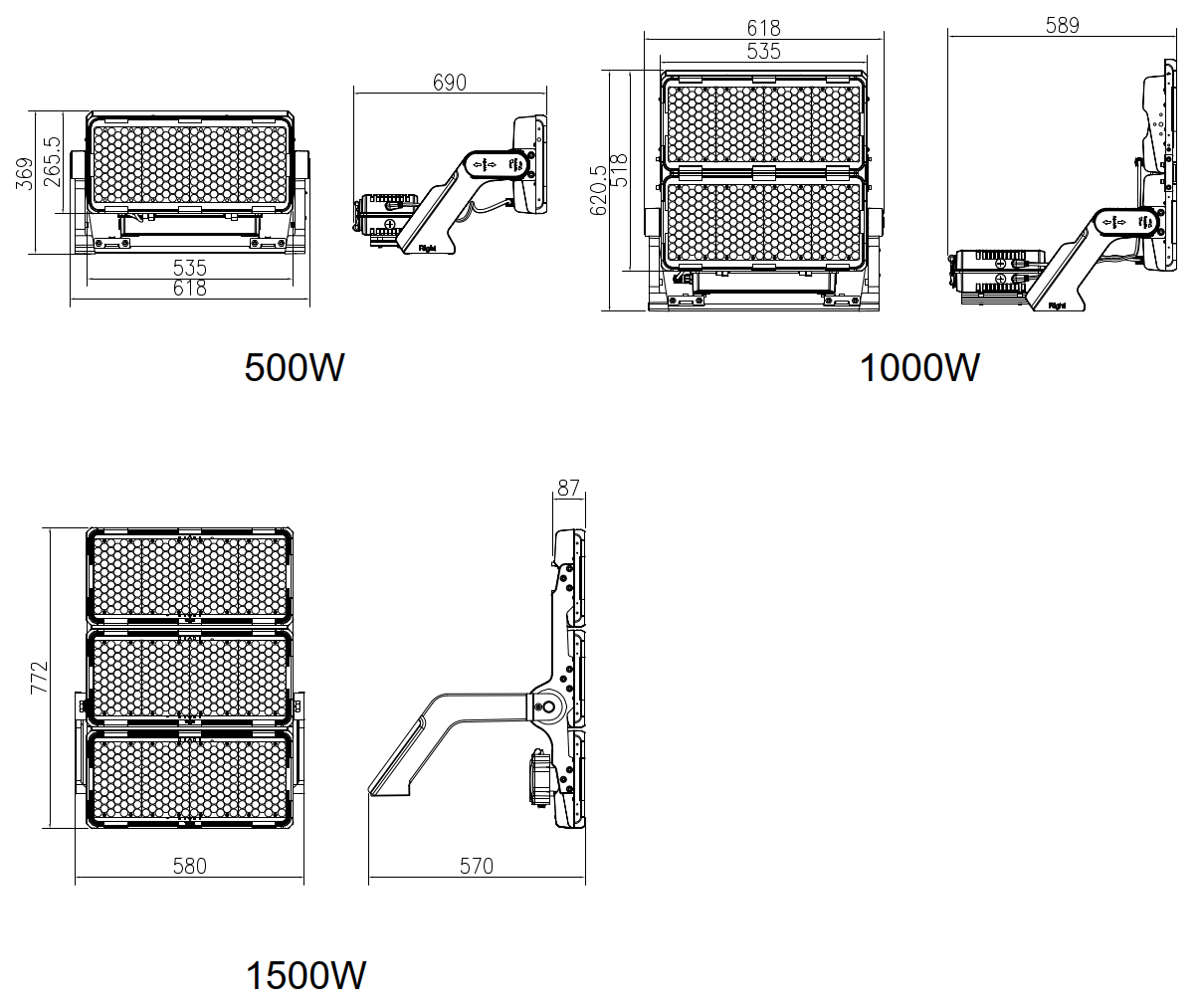

Dimensions

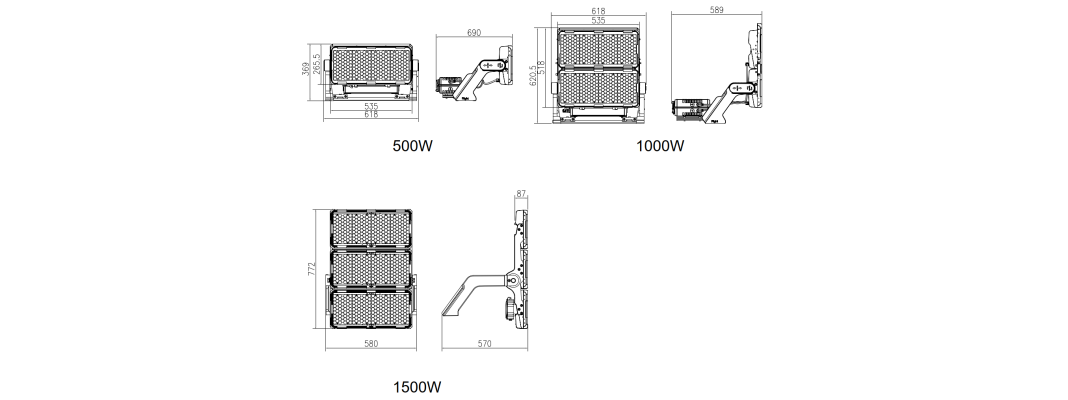

Dimension Image

Performance Data

Model #Nominal CCTLPWWattsLumensCRI
BLA2-400W4000K 5000K 5700K130lm/W400W52,000lm>70Ra
BLA2-500W500W65,000lm
BLA2-600W600W78,000lm
BLA2-800W800W104,000lm
BLA2-1000W1000W130,000lm
BLA2-1200W1200W156,000lm
BLA2-1500W1500W195,000lm
BLA2-400W140lm/W400W56,000lm
BLA2-500W500W70,000lm
BLA2-600W600W84,000lm
BLA2-800W800W112,000lm
BLA2-1000W1000W140,000lm
BLA2-1200W1200W168,000lm
BLA2-1500W1500W210,000lm
