Bluecolt's Arena 6 fixture brings high performance to sports lighting with up to 160lm/W lumen efficacy for anywhere from tennis courts to stadiums to soccer fields. Multiple accessories from visors to clamps to a large range of beam angles allows for more targeted and mindful use of lighting to reduce light pollution, and IP66 and IK08 ratings with an anti-corrosion powder coating helps the fixture to withstand all kinds of outdoor conditions.

Key Features :

  • High efficacy: up to 160 Lumens/Watt
  • Shield accessories for light pollution reduction
  • IP66 and IK08

Product Options:

Wattage Selectable 600W/500W/400W 800W/700W/600W
Input Voltage AC200-480V
CCT 4000K 5700K
Dimming 0-10v

Product Options:

Wattage 600W/500W/400W
800W/700W/600W
CCT 4000K
5700K
Dimming 0-10v
UL/CUL
DLC 5.1 Premium
3 Watt Selectable
70+ CRI
0-10V Dimming

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power (Field Adjustable):

  • 600W/500W/400W
  • 800W/700W/600W

Color Temperature:

  • 4000K
  • 5700K
Compliance

UL Listed:

cULus listed for wet locations.

DLC®:

DLC(DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org

Construction

Materials:

Made with aluminum alloy housing, ZAM brackets, and polycarbonate lenses.

Finish:

  • Default color is Gray.
  • Powder coated surface treatment.

Ambient Temperature:

-22°F(-30°C) to 113°F(45°C)

Electrical

Dimming Driver:

0-10v dimmable driver.

Input Voltage:

AC200-480V

Optics

Dimming Driver:

  • CRI>70 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

Photometrics

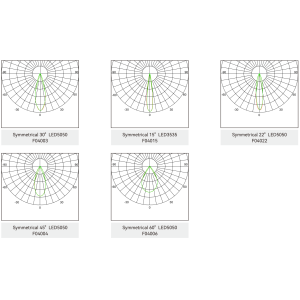

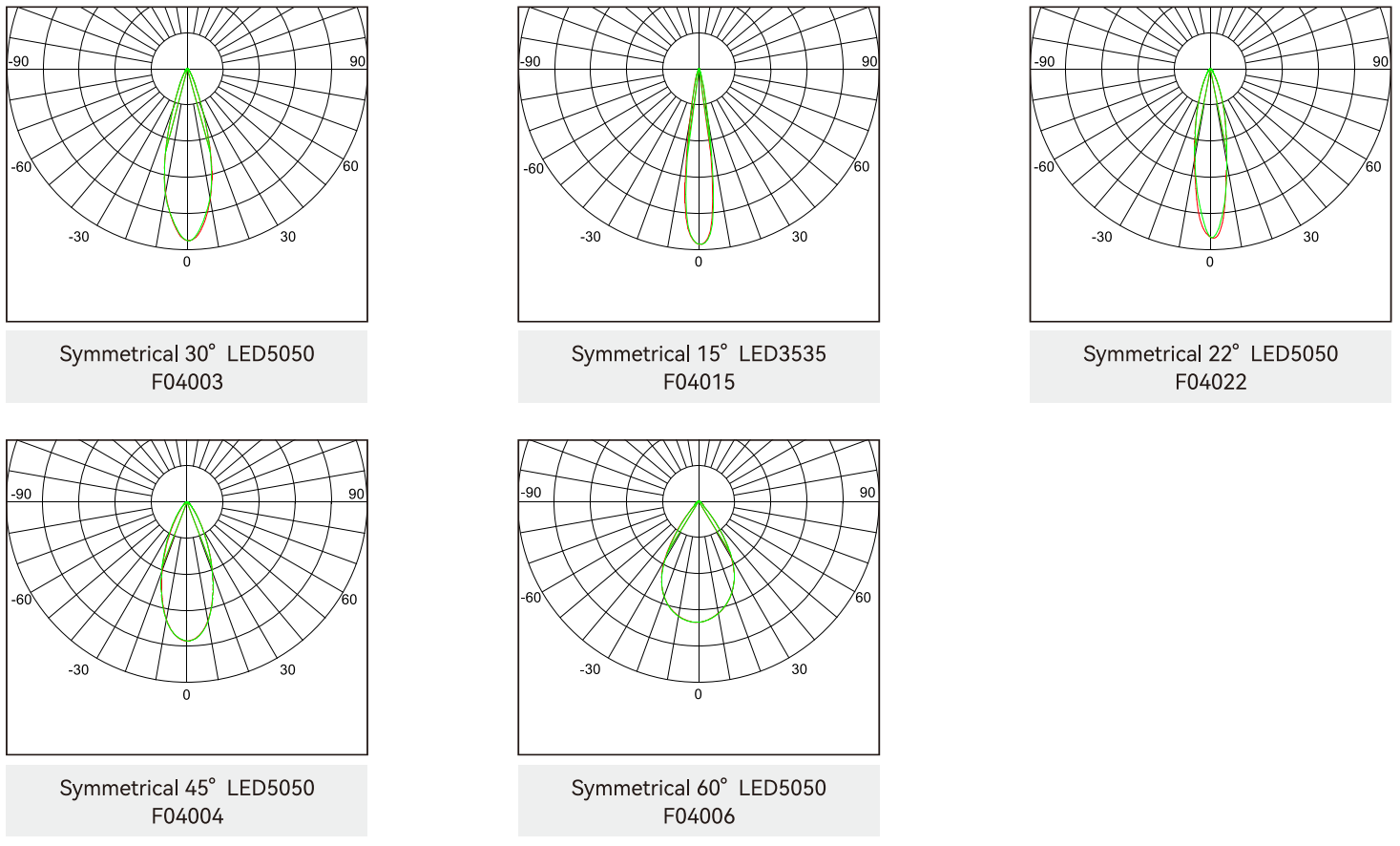

Photometric Data

Dimensions

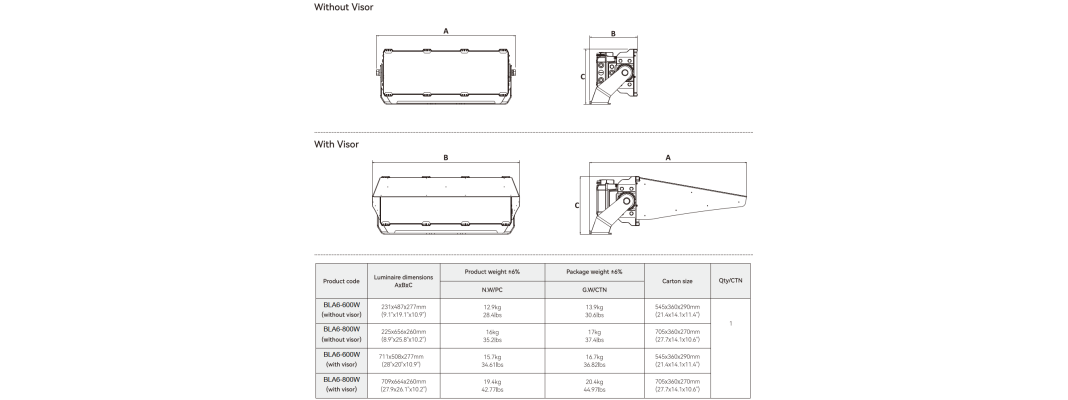

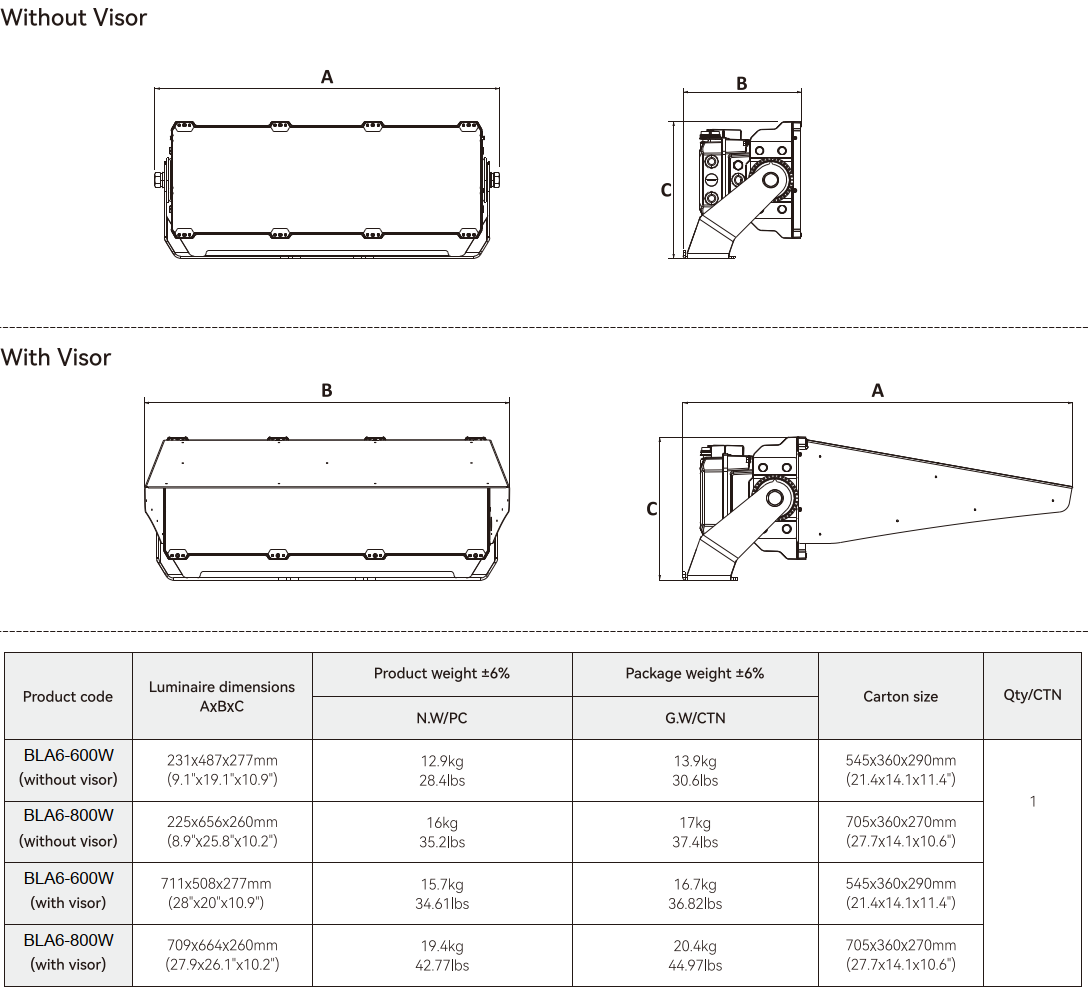

Dimension Image

Performance Data

Model #Lumen LevelWattage SelectableNominal CCTLPWWattsLumensCRI
BLA6-600W1Yes4000K 5700K135lm/W400W54,000lm>70Ra
2500W67,500lm
3600W81,000lm
BLA6-800W1600W81,000lm
2700W94,500lm
3800W108,000lm
BLA6-600W1160lm/W400W64,000lm
2500W80,000lm
3600W96,000lm
BLA6-800W1600W96,000lm
2700W112,000lm
3800W128,000lm
