Vapor Tight Linear

Explosion Proof

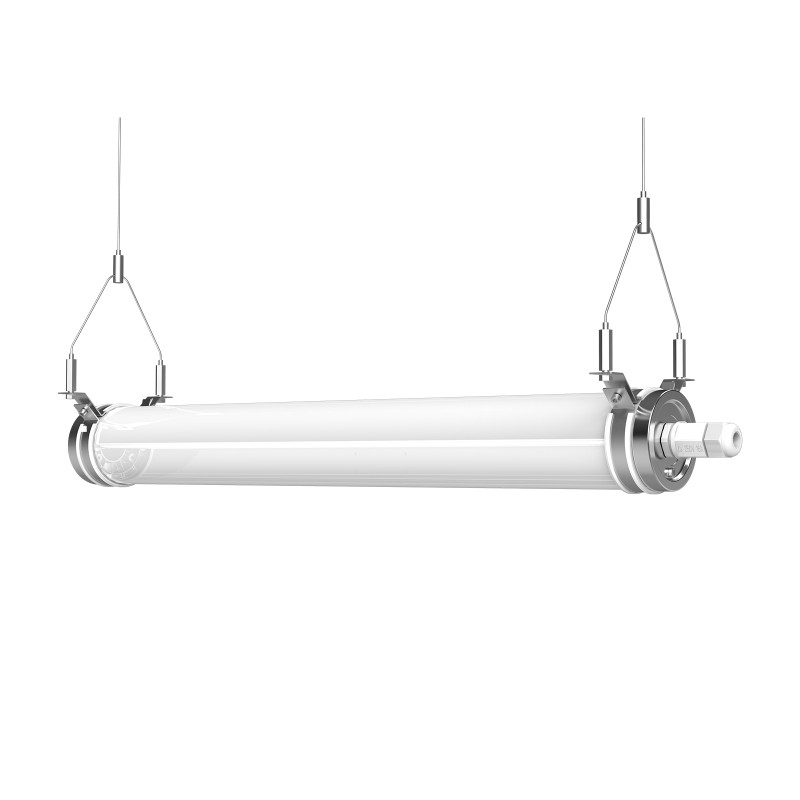

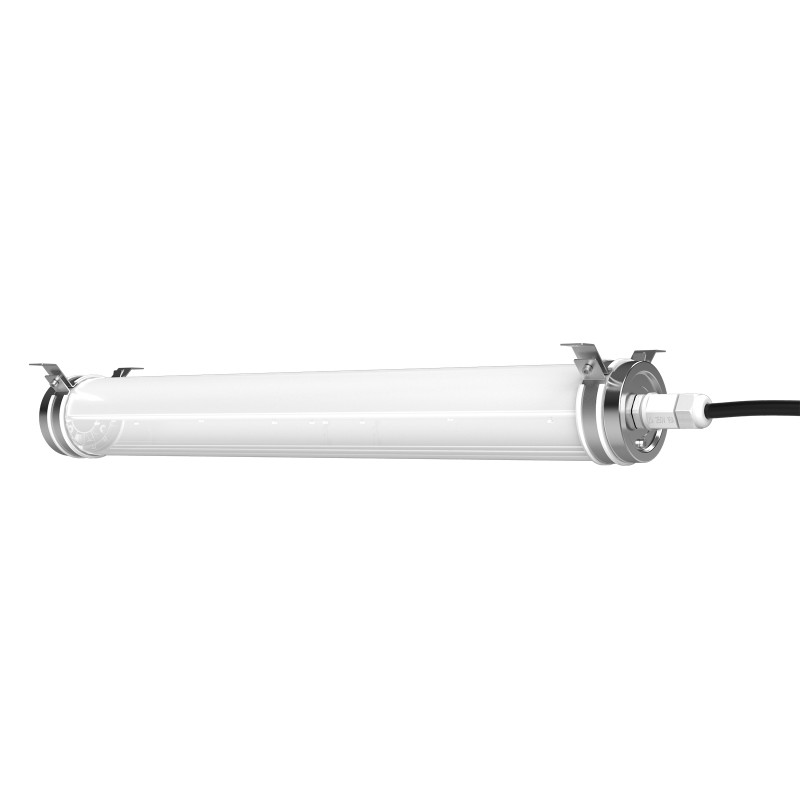

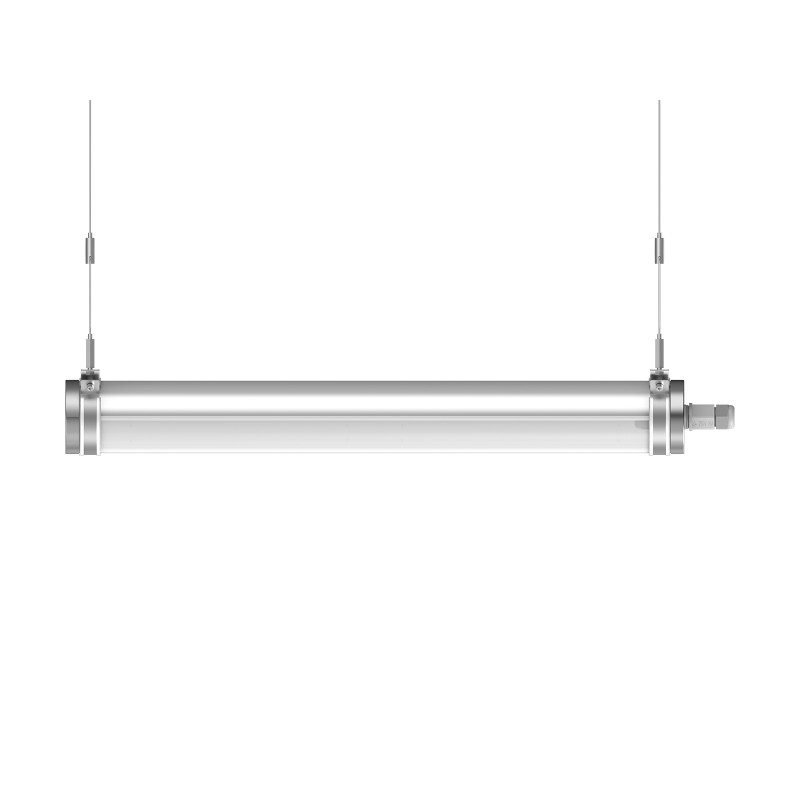

Bluecolt’s V6 vapor-proof LED is designed for maximum reliability in automotive plants and industrial facilities.

Key Features :

  • Durability ratings up to IP69K and and IK10.
  • Linkable and 1-10v dimmable.
  • Suspended or surface mounting options.

Product Options:

Wattage 20W 40W 50W
Input Voltage AC100-277V, 50/60Hz
CCT 4000K 5000K
Dimming 1-10v
IP Rating IP66/IP69K
IK Rating IK06/IK10

Product Options:

Input Voltage AC100-277V
Wattage 20W
40W
50W
CCT 4000K
5000K
Dimming 1-10v
DLC 5.1 Premium
ETL Listed
80+ CRI
1-10V Dimming
Wet Location
IK10
IK06
Power Factor 90+
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power:

  • 20W
  • 40W
  • 50W

Color Temperature:

  • 4000K
  • 5000K
Compliance

ETL Listed:

Product has been tested and meets safety standards recognized in the U.S. and Canada.

DLC®:

DLC(DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org

Construction

Materials:

Aluminum alloy and polycarbonate lens

Finish:

  • Default color is White.
  • Powder coated surface treatment.

Ambient Temperature:

-22°F(-30°C) to 104°F(40°C)

Electrical

Dimming Driver:

1-10v dimmable driver.

Input Voltage:

AC100-277V, 50/60Hz

Optics

Dimming Driver:

  • CRI>80 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

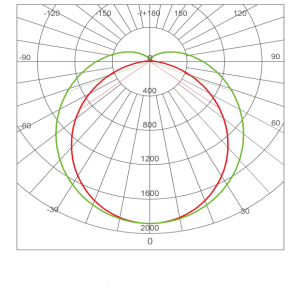

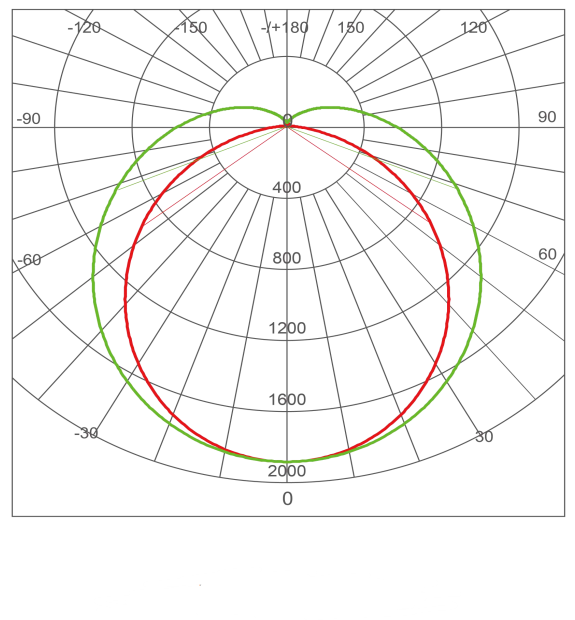

Photometrics
Photometric Data

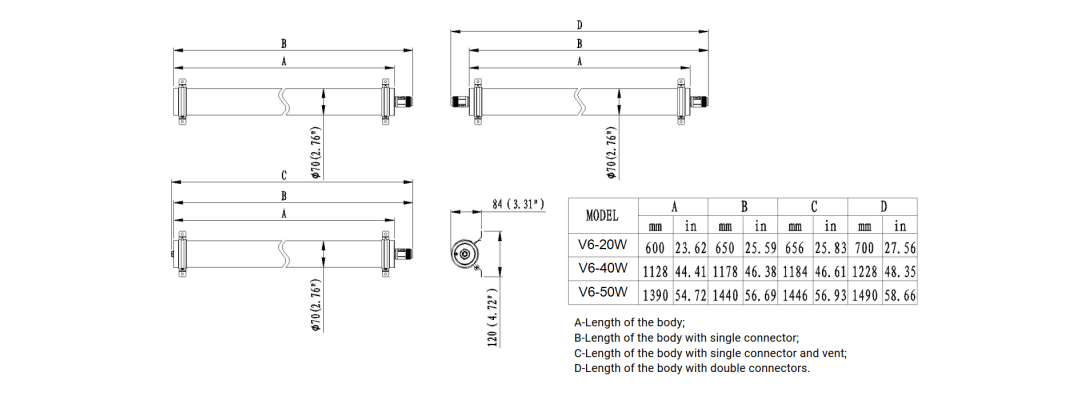

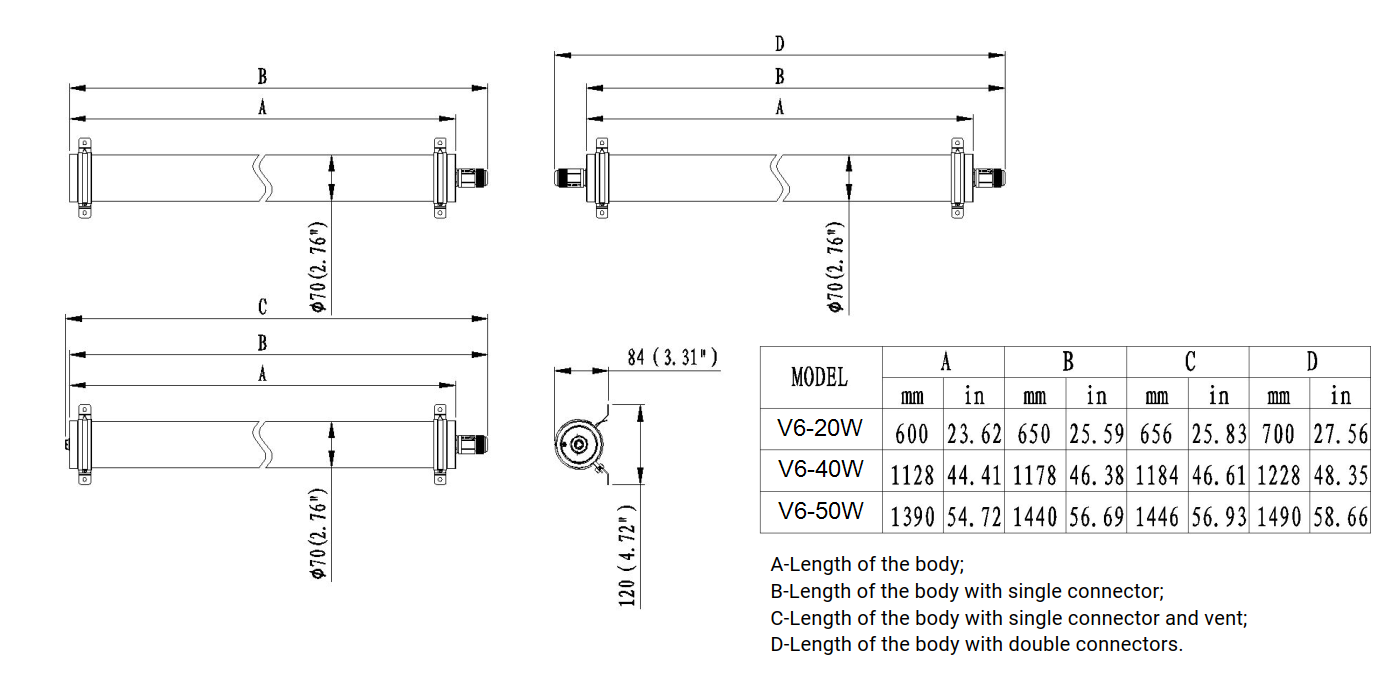

Dimensions

Dimension Image

Performance Data

Model #Nominal CCTLPWWattsLumensCRI
BLV6-20W4000K 5000K130lm/W20W2,600lm>80Ra
BLV6-40W40W5,200lm
BLV6-50W50W6,500lm
