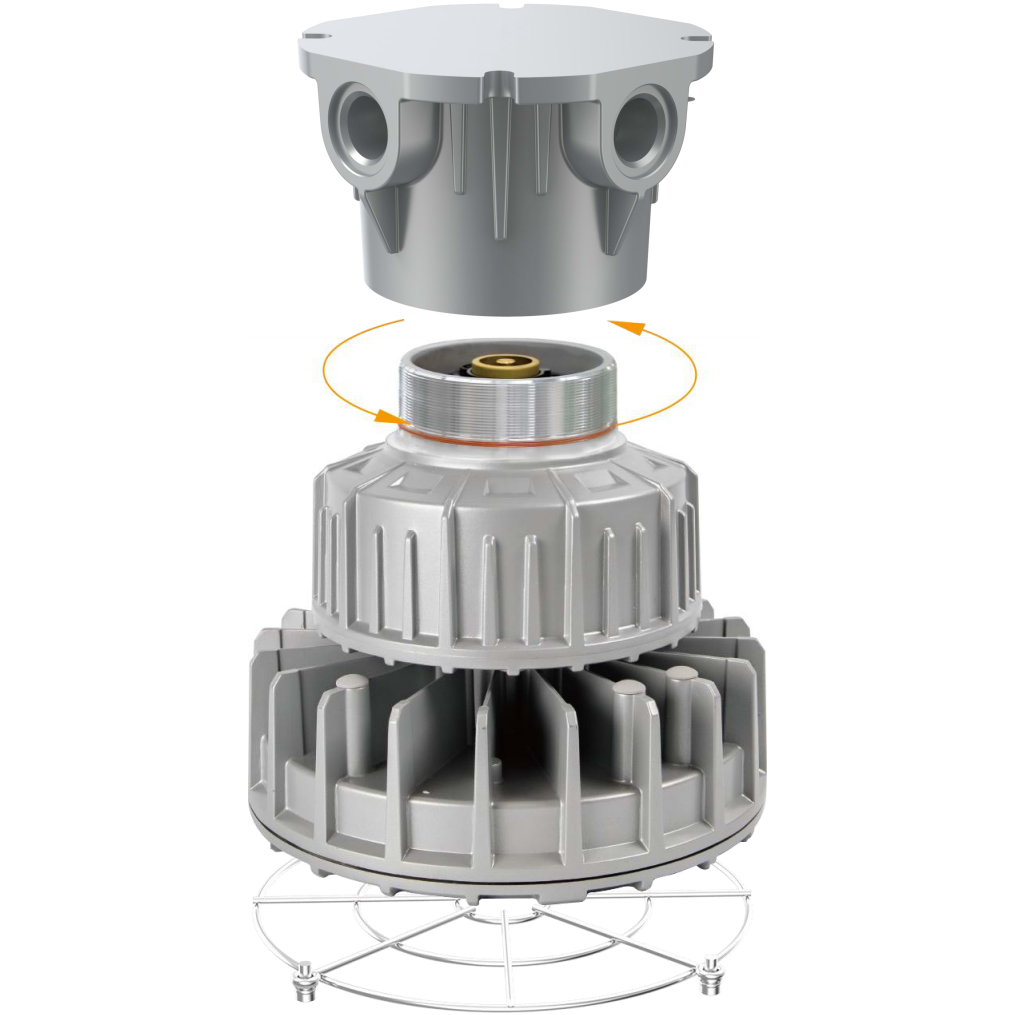

The XP1 is designed to stand up to the demanding conditions faced in Class I, Division 1 environments. Our rugged materials and design ensure resistance to extreme environments and tough conditions. The body and mounting bracket are made of low-copper aluminum alloy, with special anti-corrosion treatment, suitable for marine environments, corrosion-resistant for more than 10 years.
Key Features :
- Factory sealed. External seals not required. IP66 and IK10, shock- resistant and vibration-resistant solid state luminaire.
- All exposed hardware is stainless steel.
- Tempered Glass
Product Options:
| Wattage |
30W
40W
50W
60W
70W |
| Input Voltage |
AC100-277V, AC277-480V |
| CCT |
5000K |
| IP Rating |
IP66 |
| IK Rating |
IK10 |
Product Options:
| Input Voltage |
AC277-480V
AC100-277V
|
| Wattage |
40W
50W
60W
30W
70W
|
| CCT |
5000K
|
Product Configurator
Select fixture options to generate SKU and download specific Design Files
Technical Specifications
Performance
Power:
Color Temperature:
- 5000K *additional CCT options are available as custom orders
Compliance
UL Listed:
cULus listed for wet locations.
NEMA4X:
Complies with the requirements for the National Electrical Manufacturers Association's 4X rating for waterproof electrical enclosures.
UL1598A Certified:
Meets requirements specifically for installation on marine vessels.
Construction
Materials:
Made of low-copper aluminum alloy, stainless steel, and tempered glass.
Finish:
Ambient Temperature:
-40°F(-40°C) to 149°F(65°C)
Electrical
Input Voltage:
AC100-277V, AC277-480V, 50/60Hz
Optics
CRI:
>70 Standard.
Warranty
5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty
