Bluecolt's Explosion-Proof 2 High Bay fixture is designed for extreme
environments and tough conditions.

Key Features :

  • Marine-Rated Powder Coating
  • Heavy Duty & High Impact Resistance

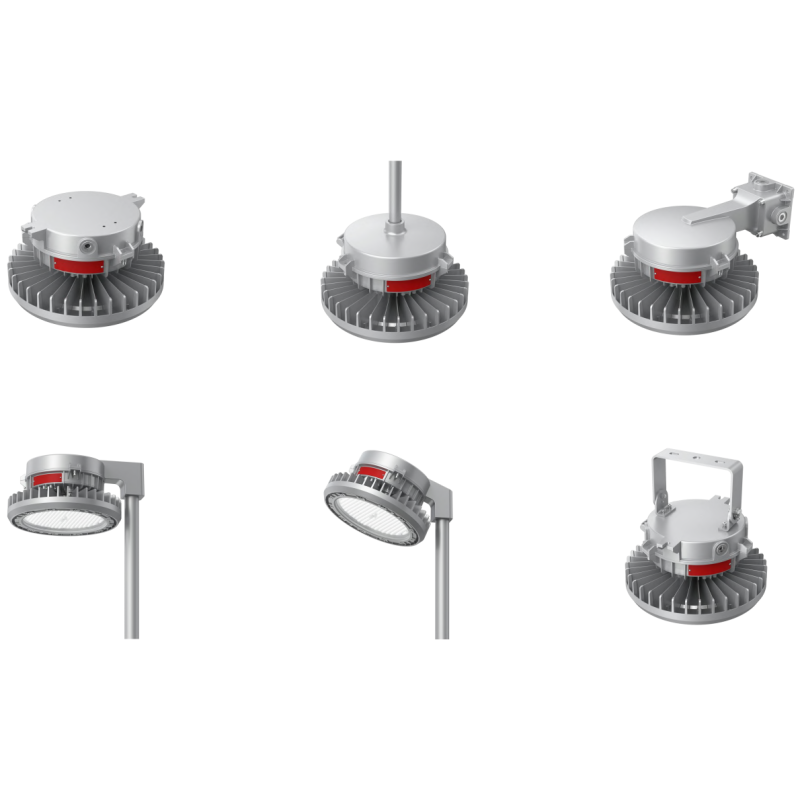

  • Versatile Mounting Options

Product Options:

Wattage 200W 250W 300W 350W 400W
Input Voltage AC100-277V, DC12-48V, AC200-480V
CCT 2200K 3000K 4000K 5000K 6000K 6500K 7000K
Dimming 0-10v
IP Rating IP66

Product Options:

Input Voltage AC100-277V
DC12-48V
AC200-480V
Wattage 200W
300W
400W
250W
350W
CCT 3000K
4000K
5000K
6000K
2200K
6500K
7000K
Dimming 0-10v
UL/CUL
70+ CRI
0-10V Dimming
Wet Location
EM Option
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power:

  • 200W
  • 250W
  • 300W
  • 350W
  • 400W

Color Temperature:

  • 2200K
  • 3000K
  • 4000K
  • 5000K
  • 6000K
  • 6500K
  • 7000K
Compliance

UL Listed:

cULus listed for wet locations.

UL1598A Certified:

Meets requirements specifically for installation on marine vessels.

IECEx Certified:

Product meets international safety standards for equipment designed to be used in explosive environments.

ATEX Certified:

Complies with European Union safety directives for equipment and protective systems used in hazardous environments.



Construction

Materials:

Made of aluminum, stainless steel, and tempered glass.

Finish:

  • Default color is Silver.
  • Powder coated surface treatment.

Ambient Temperature:

-40°F(-40°C) to 131°F(55°C)

Electrical

Dimming Driver:

0-10v dimmable driver.

Input Voltage:

AC100-277V, DC12-48V, AC200-480V

Optics

Dimming Driver:

  • CRI>70 Standard.
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

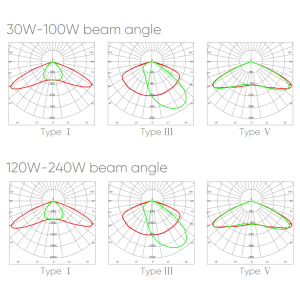

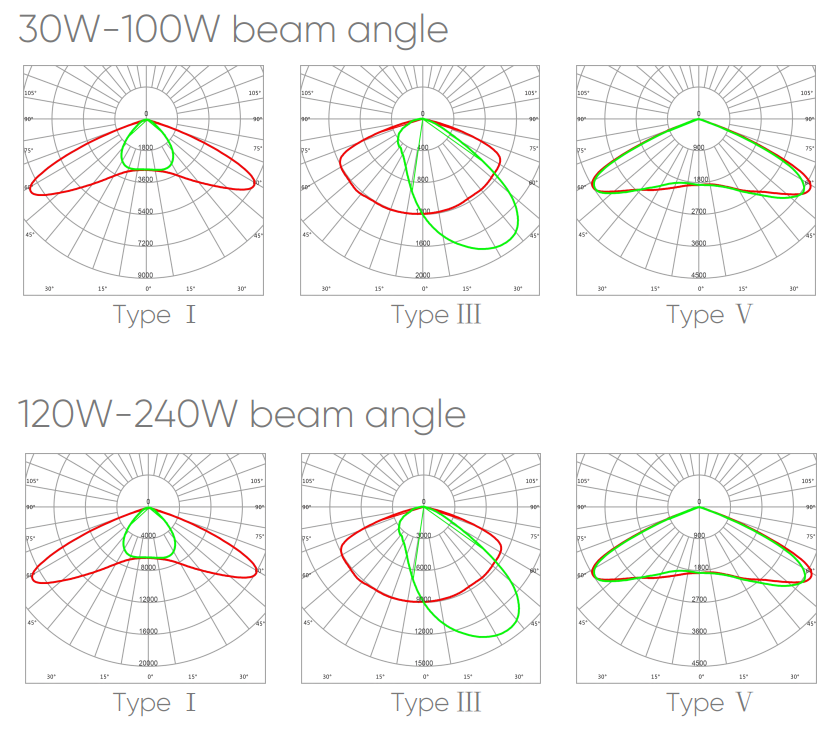

Photometrics
Photometric Data

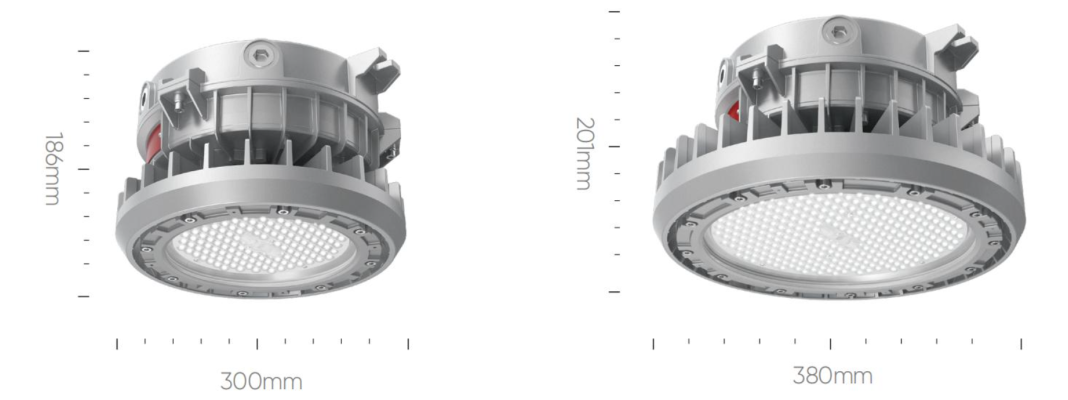

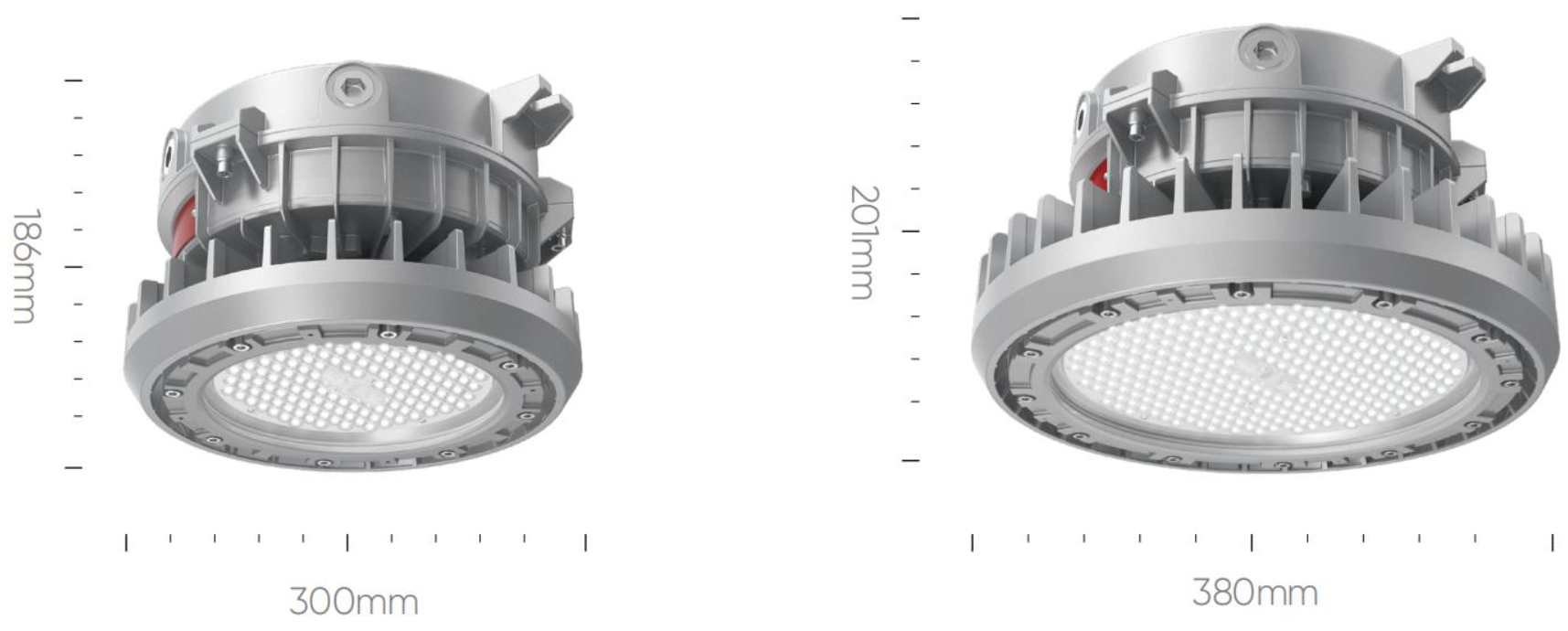

Dimensions

Dimension Image

Performance Data

Model #Nominal CCTLPWWattsLumensCRI
BLXP2-200W2200K 3000K 4000K 5000K 6000K 6500K 7000K140lm/W200W28,000lm>70Ra
BLXP2-250W250W35,000lm
BLXP2-300W300W42,000lm
BLXP2-350W350W49,000lm
BLXP2-400W400W56,000lm
