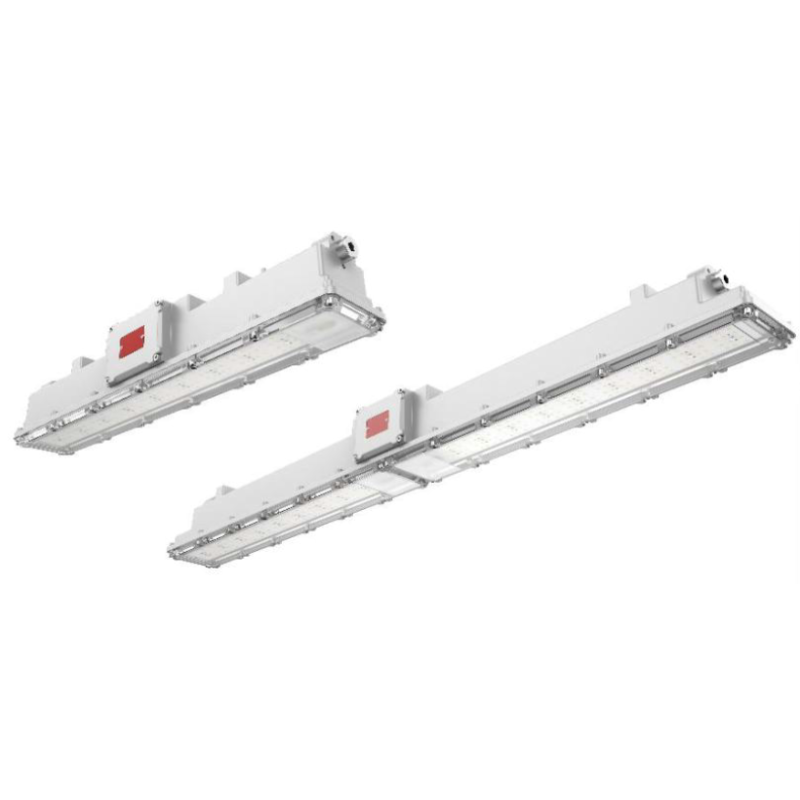

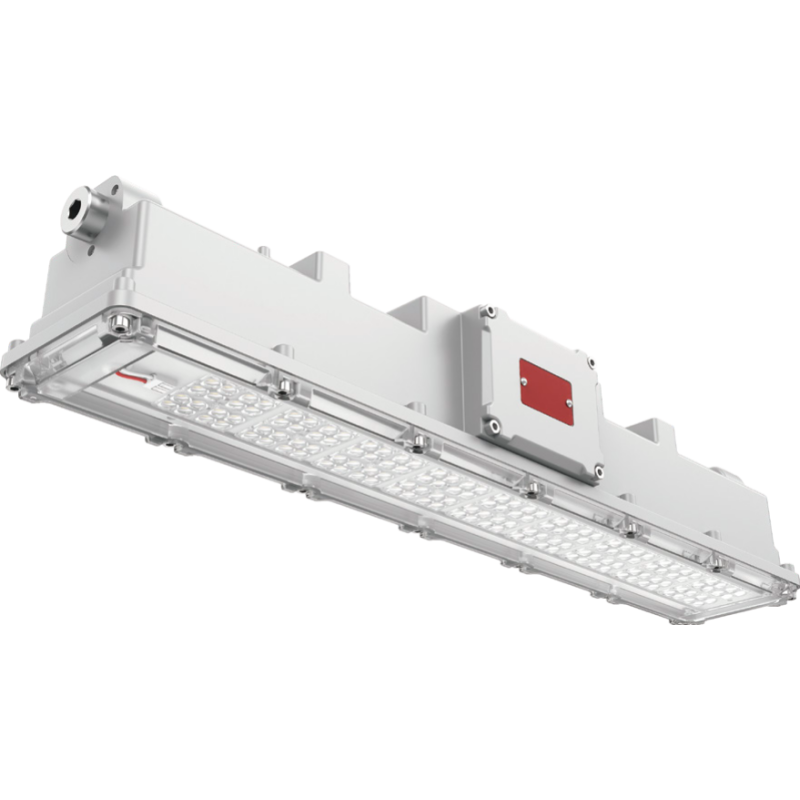

The XP3 is designed to stand up to the demanding conditions faced in hazardous environments. Our rugged materials and design ensure resistance to extreme environments and tough conditions. The body is constructed with fiberglass reinforced polycarbonate, with a tough PC lens. Suitable for marine environments, it will maintain corrosion resistance for more than 10 years.

Applications :

  • Chemical
  • Oil, Gas, & Petrochemical
  • Pulp & Paper
  • Foundries
  • Manufacturing
  • Waste & Sewage Treatment
  • Paint Spray Booths
  • Power Generation

Product Options:

Wattage 30W 40W 50W 60W 70W 80W 100W
Input Voltage AC 100-277V, 277-480V
CCT 5000K
Dimming 1-10v
IP Rating IP66
IK Rating IK08

Product Options:

Input Voltage AC277-480V
AC100-277V
Wattage 100W
40W
50W
60W
80W
30W
70W
CCT 5000K
Dimming 1-10v
UL/CUL
70+ CRI
1-10V Dimming
Wet Location
IK08
EM Option
5 Year Warranty

Product Configurator

Select fixture options to generate SKU and download specific Design Files

SKU :
Specification Sheet -
  • Design Files
  • Download

Technical Specifications

Performance

Power:

  • 30W
  • 40W
  • 50W
  • 60W
  • 70W
  • 80W
  • 100W

Color Temperature:

  • 5000K (alternate CCT options available as custom orders)
Compliance

UL Listed:

cULus listed for wet locations.

UL1598A Certified:

Meets requirements specifically for installation on marine vessels.

IECEx Certified:

Product meets international safety standards for equipment designed to be used in explosive environments.

ATEX Certified:

Complies with European Union safety directives for equipment and protective systems used in hazardous environments.

Construction

Materials:

Fiber-reinforced plastic.

Finish:

  • Default color is White.

Ambient Temperature:

-40°F(-40°C) to 131°F(55°C)

Electrical

Dimming Driver:

1-10v dimmable driver.

Input Voltage:

AC100-277V, AC277-480V

Optics

Dimming Driver:

  • CRI>70 Standard.
  • Optional CRI>80 and CRI>90
Warranty

5-year limited warranty. Complete warranty terms are located at www.bluecoltlighting.com/warranty

Photometrics

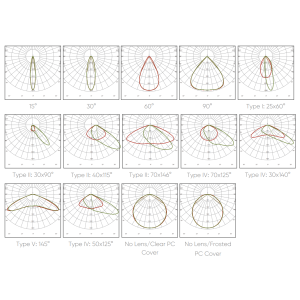

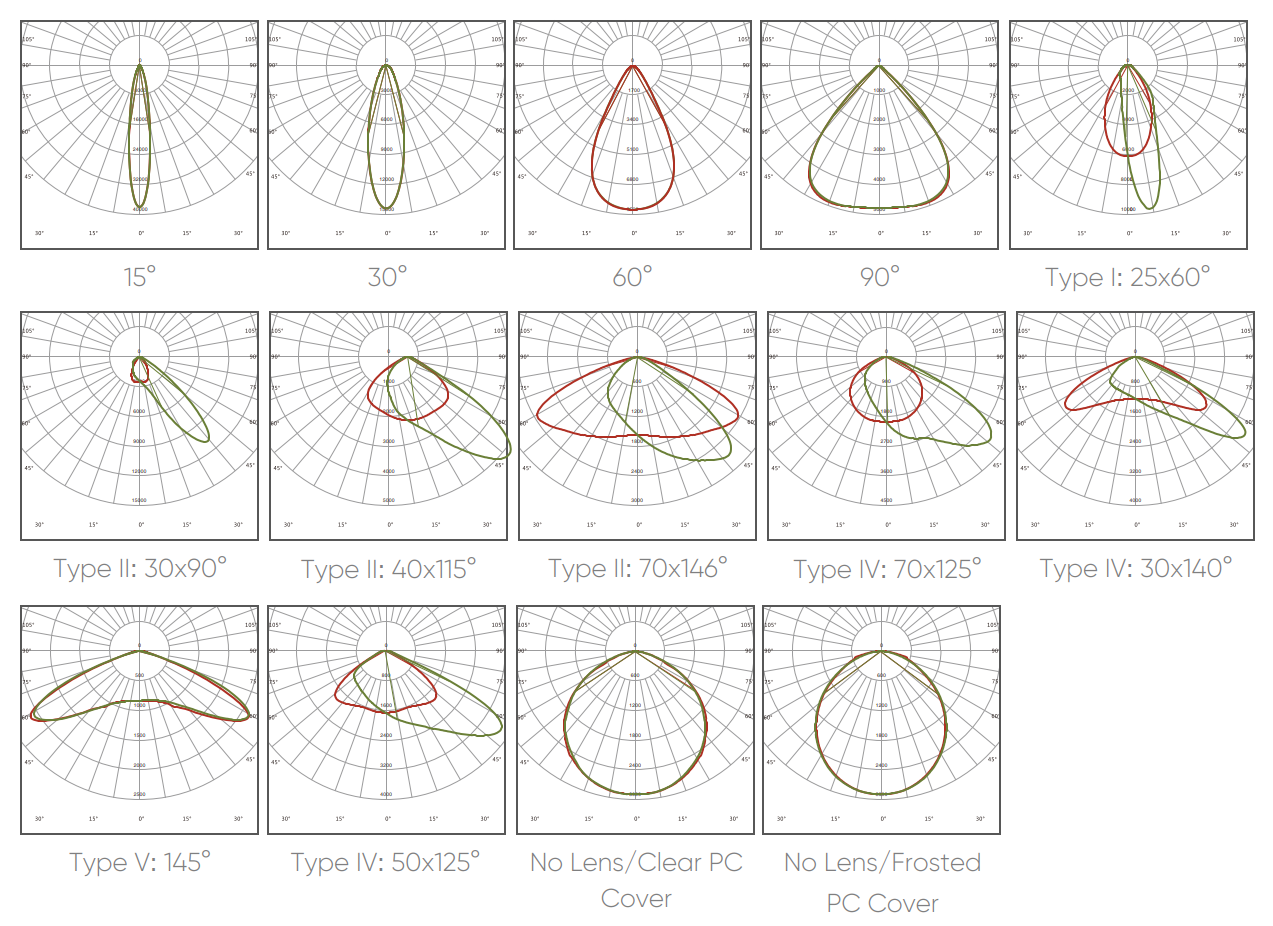

Photometric Data

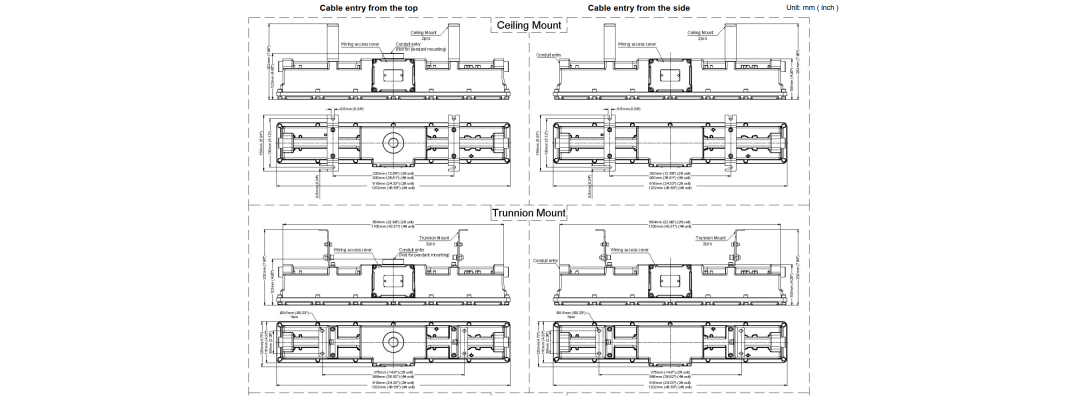

Dimensions

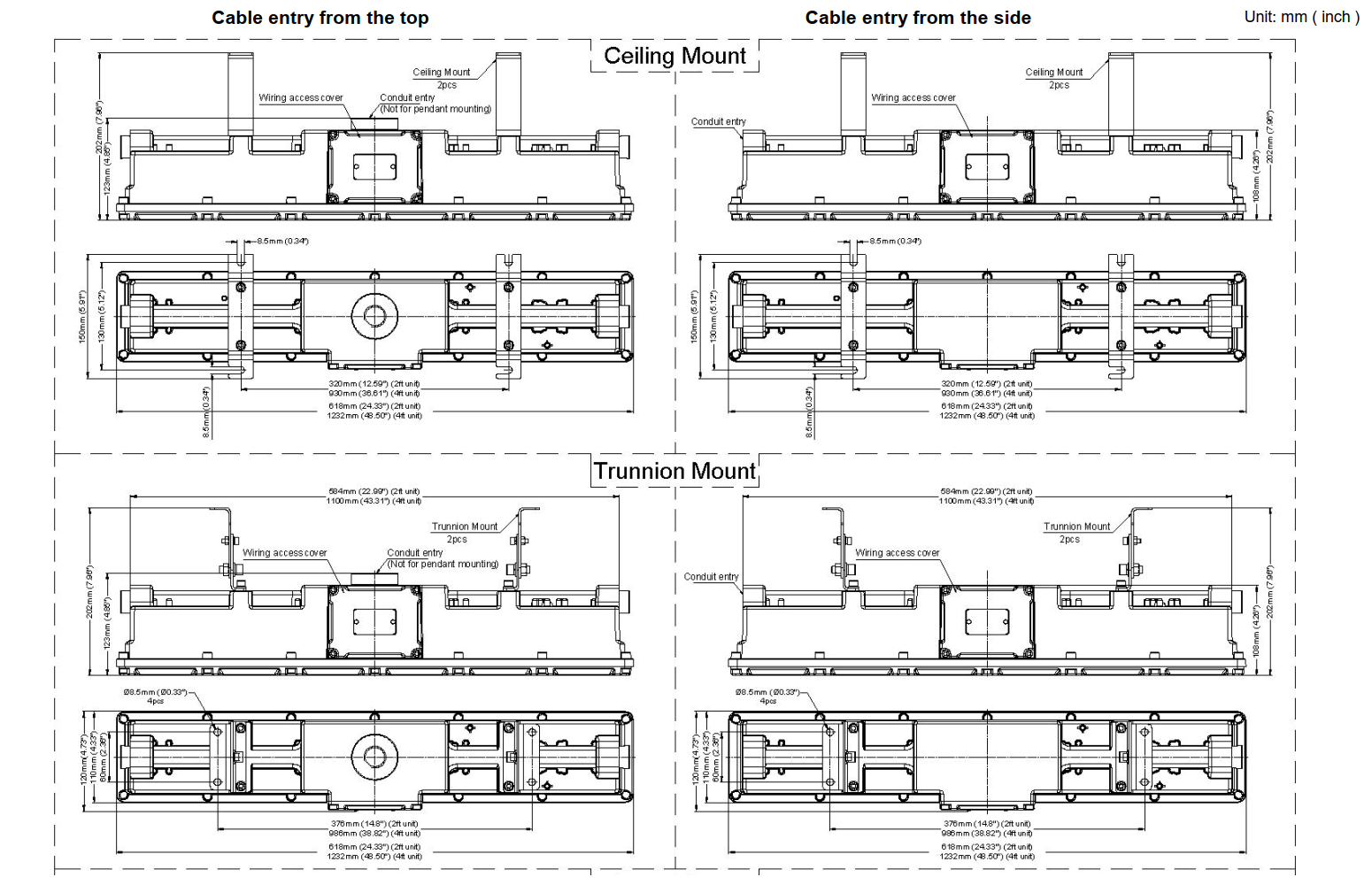

Dimension Image

Performance Data

Model #Nominal CCTLPWWattsLumensCRI
BLXP3-30W5000K160lm/W30W4,800lm>70Ra
BLXP3-40W5000K160lm/W40W6,400lm
BLXP3-50W5000K160lm/W50W8,000lm
BLXP3-60W5000K160lm/W60W9,600lm
BLXP3-70W5000K160lm/W70W11,200lm
BLXP3-80W5000K160lm/W80W12,800lm
BLXP3-100W5000K160lm/W100W16,000lm
